VGA Extender 300m over single cat5e cable

              VGA 1x1 Extender 300m over single cat5e cable with 3.5mm Audio output

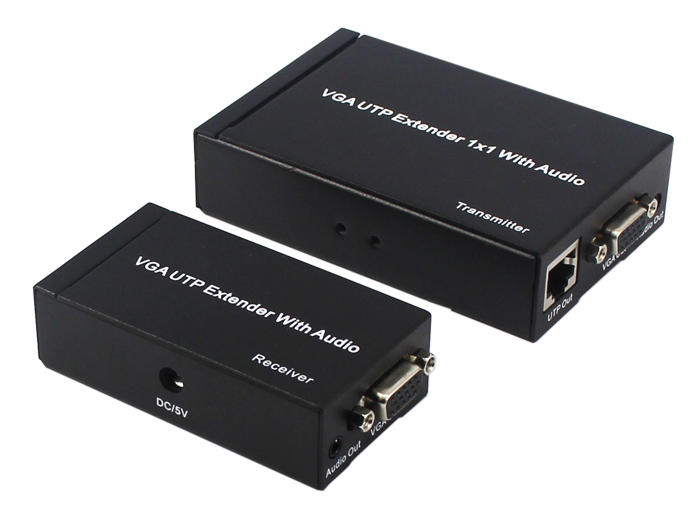

HY-VGAUTP300M-V0 VGA 1x1 Extender 300m over single cat5e cable with 3.5mm Audio output Introduction

HY-VGAUTP300M-V0 VGA Extender 300M Over Single Cat5e/6  is  an  ideal  device  for  local  displaying  and remote  viewing.  lt  combines  split function and extension function. HY-VGAUTP300M-V0 VGA Extender 300M Over Single Cat5e/6 distributes  the  input of the VGA signal and audio signal into the local and remote outputs simultaneously.Receiver by Cat5 x1 works with  the Sender and  transmitting  to display. Only by  the most inexpensive

UTP cable with cross stand inside, the full functional module extend the VGA display max up to 200 meters.

HY-VGAUTP300M-V0 VGA Extender 300M Over Single Cat5e/6  is  an  ideal  device  for  local  displaying and lt offers solutions for VGA retail and show site and Projector factory ,noise,space and security concerns,data center control,information distribution,conference room presentation,school and corporate training environments.

HY-VGAUTP300M-V0 VGA 1x1 Extender 300m over single cat5e cable with 3.5mm Audio output features

HY-VGAUTP300M-V0 VGA Extender 300M Over Single Cat5e/6 has many features that enable it to perform in a superior manner. Among those features you will find:
Extend VGA video and stereo audio signal max up to 200m over one UTP Cable with cross stand inside.
Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
GAIN: Brightness adjustment.
PEAK:Skew adjustment.
Supports resolution max up to 1920 x 1200.
Dual output at local unit:1 x VGA output for local site,plus 1 x UTP output for remote site.
Work with monitors projectors,HDTV,and flat panels.

HY-VGAUTP300M-V0 VGA 1x1 Extender 300m over single cat5e cable with 3.5mm Audio output specifications

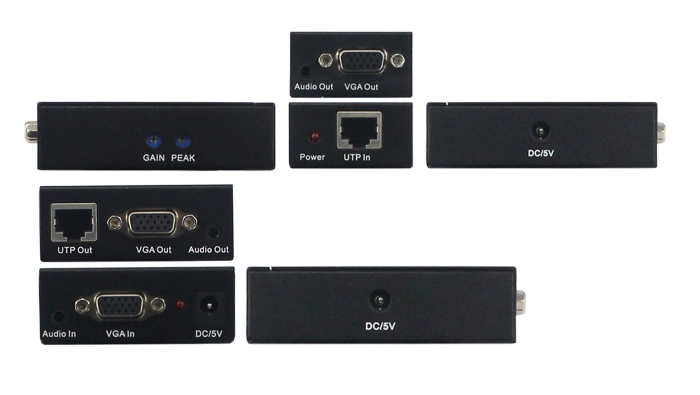

Input/Output Connector

Input connector..................................................................VGA(Female 15pin),Stereo Audio

Output connector................................................................VGA(Female 15pin), Stereo Audio,1xRJ45

Operating Frequency

Vertical Frequency Range.......................................................... 60/75/85Hz

Resolutions(PC)....................................................640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200

Size of Transmitter (L x W x H)...............................................110x65x26mm

Weight of Transmitter(Net)........................................................215g

Size of Receiver(L x W x H).......................................................86x43x23mm

Weight of Receiver(Net)...........................................................110g

Operating Temperture...............................................................0℃ to + 70℃

Operating Humidity..................................................................10% to 85% RH(no condensation)

Storage Temperture..................................................................-10℃ to + 80℃

Storage Humidity.......................................................................5% to 90% RH(no condensation)

Power Supply for Transmitter........................................................5V@1A

Power Supply for Receiver...........................................................5V@1A

AC Power Adapter.....................................................................US standard,UK standard and so on

User Manual .............................................................................English Version

Certficates CE, FCC and RoHs

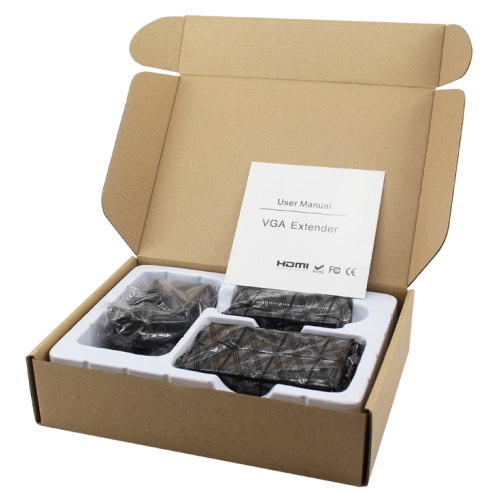

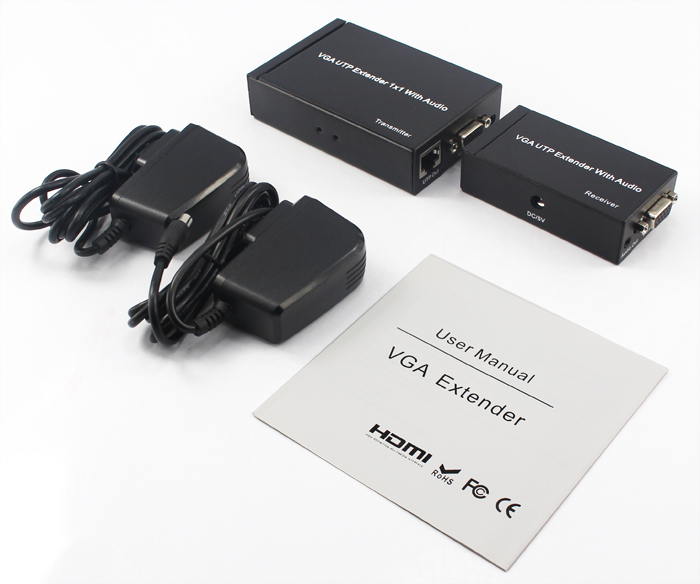

HY-VGAUTP300M-V0 VGA 1x1 Extender 300m over single cat5e cable with 3.5mm Audio output Package content

  1 x One Transmitter.

 1 x User`s Manual.

 1 x One Receiver

 2 x DC 5V@1A Power adapter
