DVI Extender 60m using CAT6 Cable Extender to 60m

      HY-CAT5e6-60M-DVI DVI Extender 60m using CAT6 Cable Extender to 60m

HY-CAT5e6-60M-DVI DVI Extender 60m using CAT6 Cable Extender to 60m Introduction

Used for a pair extension of this DVI CAT 6 cable to extend HD signal up to 60 meters, and  can achieve 1080P, which not only broke  the DVI  cable transmission  length  l imitations, but also more  convenient and  flexible,  the majority  of  customers  are  more  cost  savings.  The  production  equipment company providing  solutions  for  the  fol lowing applications:  such as noise,limited  transmission distance and  safety of  the place, data  center  control,information  distribution,  conference  room  presentations  and  teaching environment  and  corporate  training  sites.

Our devices offers solutions  for noise, space and security concerns,data center control,information distribution, conference room presentation,school and corporate training environments.

HY-CAT5e6-60M-DVI DVI Extender 60m using CAT6 Cable Extender to 60m  FEATURES
HDCP 1.2 protocol compliant.
Support EDID learning.
Cable line with IEEE-568B standard.
Support video input and output: 24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i.
Signal transmission: Single cat-6e or cat-6(recommended) cable up to 60 meters.
Support up to 5metres AWG26 cable length between extender and source & sink device.
No loss of qual ity.
DC over voltage protection.
Easy instal l & operation.

Support hot plug & play.
Instal ls in minutes

HY-CAT5e6-60M-DVI DVI Extender 60m using CAT6 Cable Extender to 60m Specifications

Length of  CAT6 cable between Rx and TX:           Up to 60 meters
DVI Input:                                                       24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input:                               DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3-DSD
DVI Output:                                                     24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output:                             DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth                               5.1Gbps
Input Video signal                                            0.5~1.5Volts p-p
Output DDC signal                                            5Volts p-p(TTL)
Input/Output HDMI1.3 cable                              ≤20m AWG26 HDMI 1.3 standard
distance                                                          Cable
Max working current                                         400mA
Power adapter format                                       Input:AC ( 50Hz,60Hz )100-240V Output: DC5V/1A
Operating Temperature range:                            (-15 )  ℃ to + 55℃
Operating Humidity range                                  ( ) 5% to 90% RH No Condensation
Size of Transmitter (L x W x H)                           87x44x23mm
Weight of Transmitter(Net)                                105g
Size of Receiver(L x W x H)                               87x44x23mm
Weight of Receiver(Net)                                   105g

Certificates CE FCC and RoHs

HY-CAT5e6-60M-DVI DVI Extender 60m using CAT6 Cable Extender to 60m  Package Content

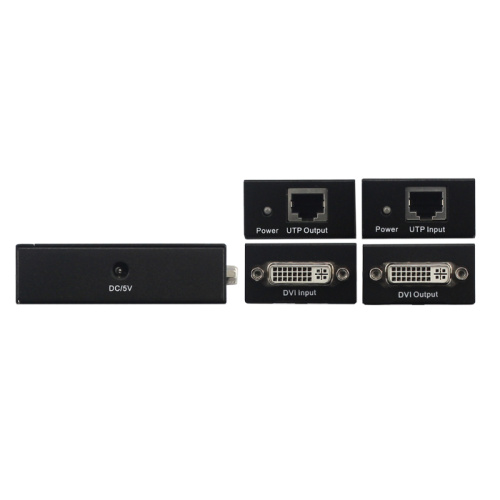

1 x DVI Extender 60M Over Single cat 5e/6 Receiver

1 x Power Adapter for DVI Extender 60M Over Single cat 5e/6 Receiver

1 x DVI Extender 60M Over Single cat 5e/6 Sender

1 x Power Adapter for DVI Extender 60M Over Single cat 5e/6 Sender

1 x User Manual
