HDMI Extender 50M Wallplate white

HY-ET31050-P-E HDMI Extender 50M Wallplate white Product Introduction:

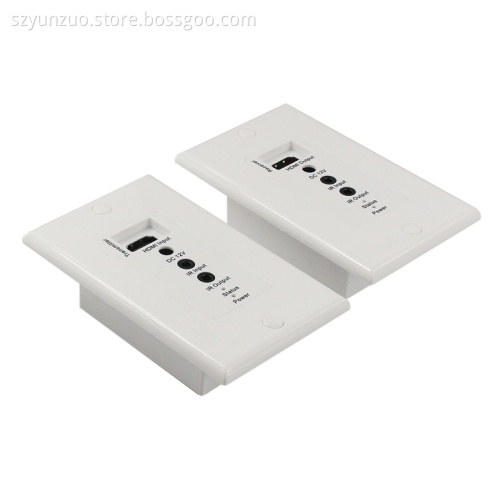

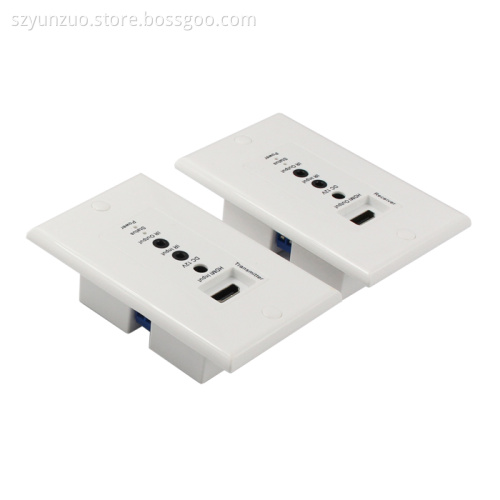

Single Cat5e/6 Wal l Plate Extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio
and control  , output through HDMI interfaces. It also supports bi-direction remote IR(RX-TX and TX-RX), power over. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.

HY-ET31050-P-E HDMI Extender 50M Wallplate white Product Features

Exending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fps  and 200ft(60 meters) at 1080i/720P through single CAT5e cable.
Supports audio formats, Dolby True HD, DTS-master, etc.
Supports 3D signals (all 7 formats), such as Frame Packing, Side-by-side, Top-to-Bottom, etc.
Supports EDID learning.

VESA DDC and hot swap technology(HPD).
Supports power over UTP cable, single 12V DC power supply from any side of TX or RX.
Bi-direction remote IR(RX-TX and TX-RX).
Be compatible with DVI 1.0.
Supports cascade to enhance extending distance.

HY-ET31050-P-E HDMI Extender 50M Wallplate white Product Specifications

Transmitter.....................HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in.
Receiver.......................HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in.
Power.............................................................< < 3.5W TX or  2.5W RX

Dimension(L x W x H)..........................................Transmitter: 115x70x34mm      Receiver: 115x70x34mm

Net weight............................................................Transmitter: 70g       Receiver: 70g

Video bandwidth..................................................Maximum TMDS clock frequency 165MHz, 4.95Gbps

Resolution and distance......................1080P  170ft(50meters)-CAT5e/ -CAT6  200ft(60meters),720P/1080i  -CAT5e/270ft(80meters)-CAT6 200ft(60meters)

Audio formats.......................................................8-channel, support Dolby True HD and DTS Master

TMDS input signal...............................................1.2 volts (point to point)

DDC input signal...................................................5 volts (point to point)

Indicator................................................................Power:Red,video  l ink: green

HDMI interface standard ........................HDMI 1.3 standard (HDMI 1.4b 3D function), HDCP 1.2, support EDID
Remote IR..........................................................38KHz(Model A) or 20-60KHz(Model B)

ESD level.............................................................HBM +8KV(Contact Dischatge) -

Temperature range..............................................0~40°C(operation), -20~60°C(stock)

Compliance...........................................................FCC, CE, RoHS

Certificates: CE, FCC, RoHs and UL

HY-ET31050-P-E HDMI Extender 50M Wallplate white Package Content

 Transmitter                    x1
 Receiver                        x1
 IR blaster                       x2
 IR receiver                     x2
 DC 12V/1A adapter        x1
 User manual                  x1
