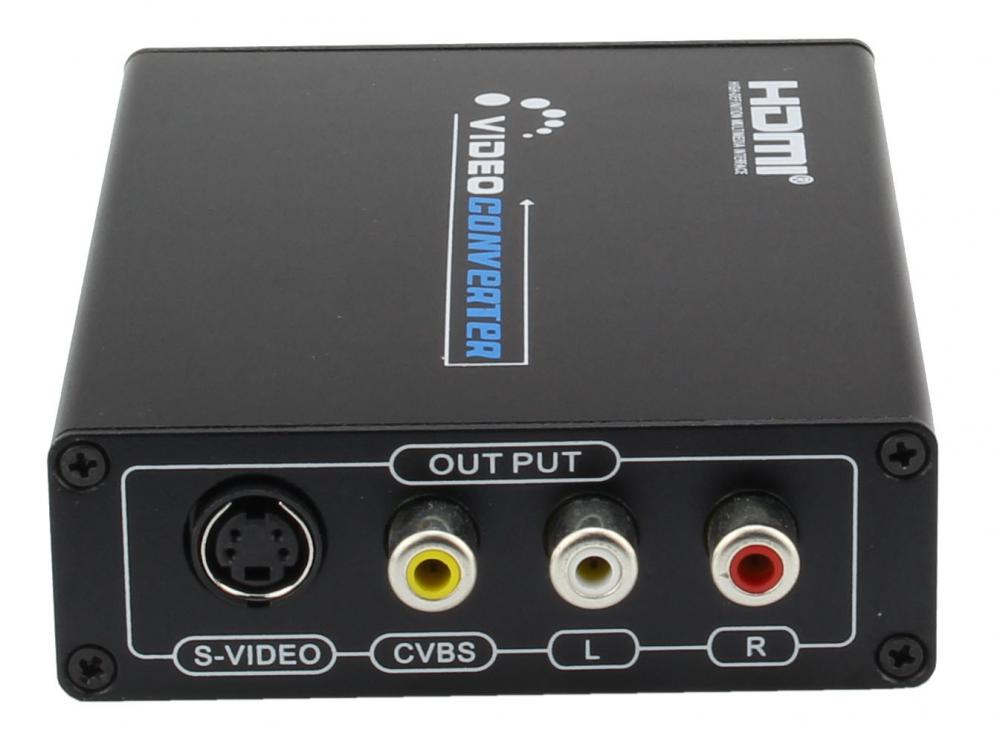

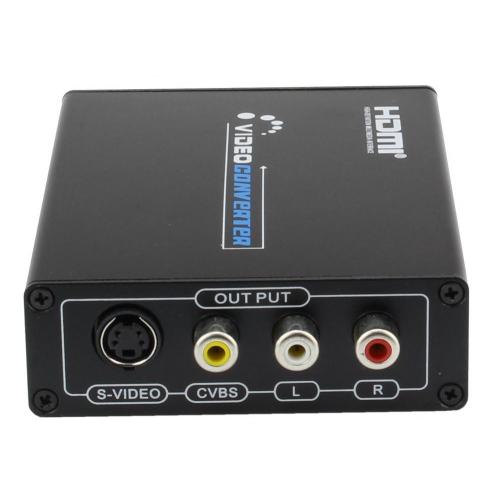

HY-201-V1-B2 HDMI To Composite/S-video Converter
HY-201-V1-B2 HDMI to Composite/S-video Converter Introduction
This Converter box is designed to convert HDMI to either composite Video or S-video. It allows the device only equipment HDMI output to be connected to analog TV. It is mostly applied in AV equipment testing.
HY-201-V1-B2 HDMI to Composite/S-video Converter Features
1. Input HDMI resolution: 480p(60Hz), 576P(50Hz), 720p(50Hz/60Hz), 1080i(50Hz/60Hz), 1080p(50Hz/60Hz)
2. Output Signal: Composite Video (1.0Vpp), S-video (Y:1.0Vpp, C:0.3Vpp)
3. Output Video Systems: PAL/NTSC
4. Output Video Impedance: 75Om
5. Compatible with HDMI 1.3 and HDCP
6. Power Supply: DC 5V
7. Working Temperature: -25 C- 75 C
8. Working Humidity: 10%-60%
9. Product Dimension: 118* 82* 27mm (L*W*H)
HY-201-V1-B2 HDMI to Composite/S-video Converter Specifications

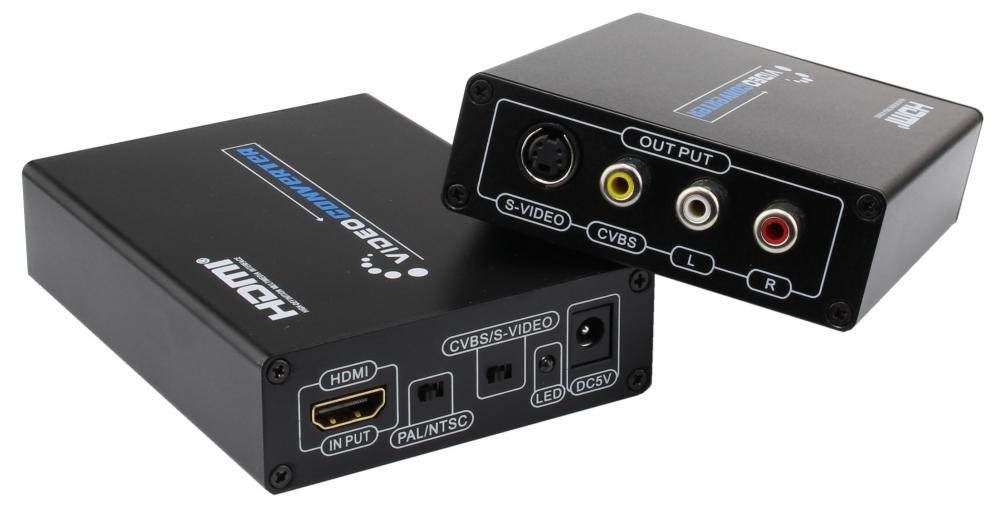

1. HDMI in: to connect HD device source
2. PAL/NTSC Switch: select PAL or NTSC
3. CVBS/S-Video Switch: Select Composite Video or S-video as output
4. LED: Power indicator
5. DC 5V: to connect DC 5V power supply
6. S-video out: S-video output
7. CVBS out: Composite video output
8. L/R: Audio L/R output
Certificates CE FCC and RoHs
HY-201-V1-B2 HDMI to Composite/S-video Converter Package content
1 x head unit
1 x Power adapter
1 x AV cable
1 x S-video cable
1 x User manual
