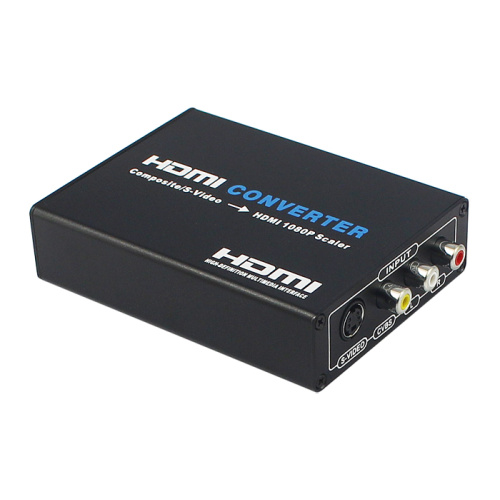

CVBS to hdmi converter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 200 Bag/Bags
- Min. Order:
- 200 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen ChiWan, Shenzhen ChiWan, Shenzhen Chiwan
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 100000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | FCC,UL,CE,ROHS |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen ChiWan,Shenzhen ChiWan,Shenzhen Chiwan |
Composite AV to HDMI Converter System Requirements
DVD, STB and other devices with CVBS or S-Video output HDTV, projector or other displayers with HDMI input.
Operation
A: Connect CVBS/S-Video to Hdmi Converter CVBS and S-Video port of DVD, Camera and other devices by CVBS cable and S-video cable.
B: Connect HDMI cable to HDMI converter(Output side), power on, and adjust the HDTV to HDMI channel.
Operation
1. Switch: Press this button to choose CVBS, or S-Video signal input.
2. 720/1080P: Press this button to choose output HDMI signal as 720P @60Hz or 1080P @60Hz
LED: Output HDMI signal 720P when LED is red and 1080P when LED is blue.
Technical parameter
CBVS Input: Detect NTSC / PAL automatically: 1.0 Vp-p impedance: 75Ω
S-video Input: Detect NTSC /PAL automatically Y:1.0vp-p Impedance 75Ω C: 1.0vp-p Impedance 75Ω
HDMI DDC signal: 5Vp-p(TTL)
HDMI TMDS signal: 0.5-1.0Vp-p
HDMI output signal: 720P@60Hz, 1080P@60Hz
Power Consumption: 3.5W
Power supply: DC 5V 1 A\
Dimension: 118 x 82 x 27
Certificates CE FCC RoHs
Package content
1 x Composite to HDMI converter with scaler
1 x Composite cable
1 x S-video cable
1 x User manual
1 x Power Adapter
