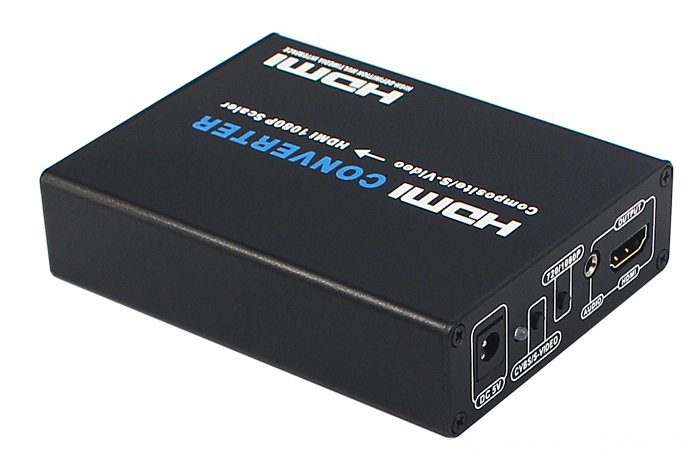

Composite AV Converter HDMI

                                                    HY-102-V0-A Composite AV Converter HDMI

HY-102-V0-A Composite AV Converter HDMI System Requirements

DVD, STB and other devices with CVBS or S-Video output HDTV, projector or other displayers with HDMI input.

HY-102-V0-A Composite AV Converter HDMI Operation

A: Connect CVBS/S-Video to HDMI Converter CVBS and S-Video port of DVD, Camera and other devices by CVBS cable and S-video cable.

B: Connect HDMI cable to HDMI converter(Output side), power on, and adjust the HDTV to HDMI channel.

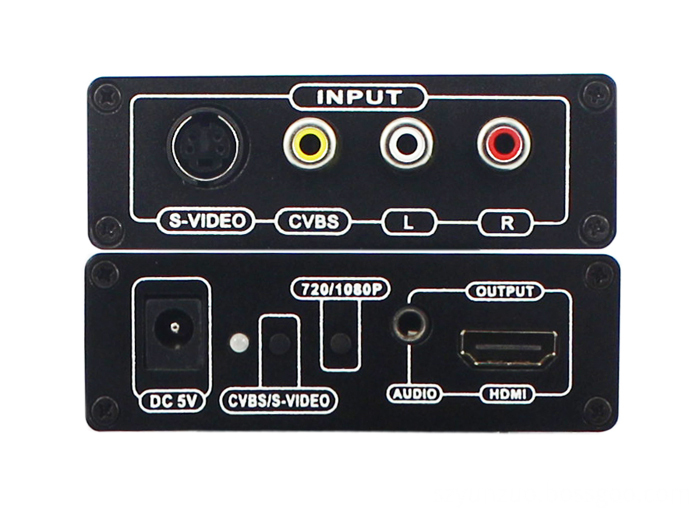

HY-102-V0-A Composite AV Converter HDMI Operation

1.  Switch: Press this button to choose CVBS, or S-Video signal input.

2.  720/1080P: Press this button to choose output HDMI signal as 720P @60Hz or 1080P @60Hz

LED: Output HDMI signal 720P when LED is red and 1080P when LED is blue.

HY-102-V0-A Composite AV Converter HDMI Technical parameter

CBVS Input: Detect NTSC / PAL automatically: 1.0 Vp-p impedance: 75Ω

S-video Input: Detect NTSC /PAL automatically Y:1.0vp-p Impedance 75Ω C: 1.0vp-p Impedance 75Ω

HDMI DDC signal: 5Vp-p(TTL)

HDMI TMDS signal: 0.5-1.0Vp-p

HDMI output signal: 720P@60Hz, 1080P@60Hz

Power Consumption: 3.5W

Power supply: DC 5V 1 A\

Dimension: 118 x 82 x 27

Certificates CE FCC RoHs

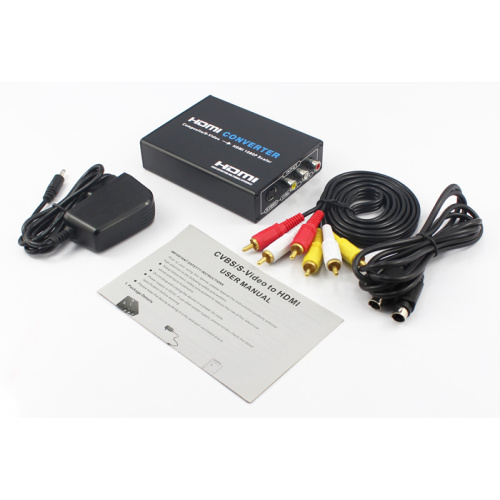

HY-102-V0-A Composite AV Converter HDMI Package content

1 x Composite to HDMI converter with scaler

1 x Composite cable

1 x S-video cable

1 x User manual

1 x Power Adapter
