High resolution VGA to av/rca/svideo Converter

                                   HY-5021-V0-A High resolution VGA to av/rca/svideo Converter

HY-5021-V0-A High resolution VGA to av/rca/svideo Converter Introduction

The whole family shares one computer, watching movies and playing games on the internet.
The popularization of computers brings great conveniences for people`s work and life. Maybe at one certain occasion you need to change the VGA signals into Video/S video signals. The movies you downloaded from the internet can be entirely combined to the family cinema, and you can easily experience cinema effect ion. You also can demonstrate the BRM need to be presented to the audience through the large-screen TV. The Video Converter can easily help you to realize the conversion of VGA signals into Video/S video signals

HY-5021-V0-A High resolution VGA to av/rca/svideo Converter features

One input of VGA signals, one output of VGA signals,

One output of Video, one out put of S Video`
One DC 5V power interface
Resolutions of signals:640x480/800x600/1024x640/        1024x768/1280x720/1280x768/1280x800/1280x1024/1280x854/1280x960/1360x768/1365x768/1366x768/1440x900/1600x1200
1920x1080/1920x1200/1920x1440/1152x864/1176x664/1600x900/1600x1000/1600x1024/1680x1050/1768x992/1792x1344/1800x1440/1856x1392/2048x1152/2048x1280/2048x1536/2560x1600 At the same time, output the VGA\VIDEO\S-VIDEO signals.
Show Simultaneously pictures on the monitor and TV

Support the systems below :
The TV systems of NTSC (Taiwan and USA), NTSC-EIAJ (Japan), PAL (EURO, China) PAL-M (Brazil), PAL-N (Uruguay Paraguay)
Support the OVERSCAN and UNDERSCAN display mode,
Convenient to carry because it is light, thin ,short and small
Volume: 110mm(length )x56mm(width)x36mm(height)

HY-5021-V0-A High resolution VGA to av/rca/svideo Converter Specifications

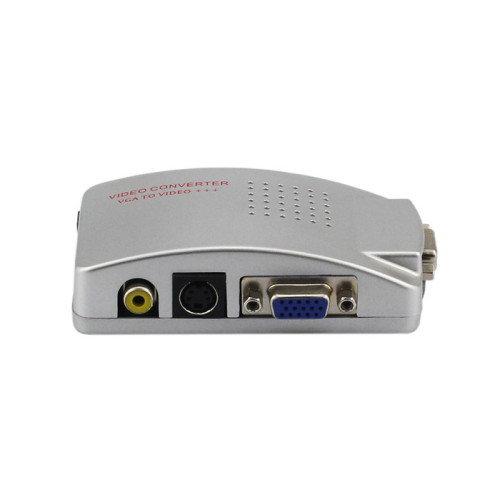

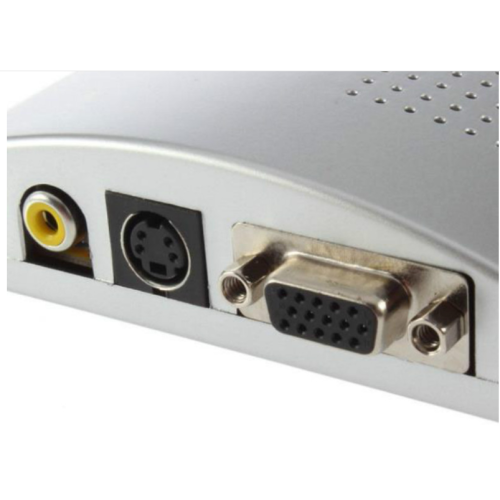

Explanation of Interface:

Name Explanation
(1)DC 5V  connect  to USB interface
(2)Video Out  connect  to TV or VCR
(3)S video Out connect  to TV or VCR
(4)VGA Out connect  to monitor

(5)VGA In connect  to AGP(Accelerated Graphics Port)

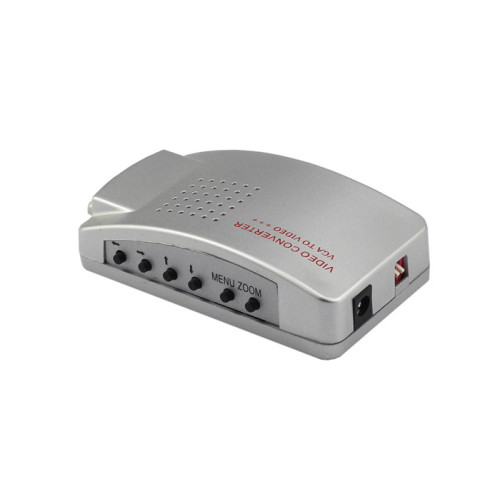

Functions of keystrokes:
 Name  Explanation
   (1)(2)(3)(4)
The four keystrokes are up down left right,and they can adjust the positions of  AV pictures
   (5)MENU
Menu,press once appearing OSD menu ;long press for 3 seconds will reset
   (6)ZOOM
Amplify key,press once amplify the pictures;Press again, reset.

System requirements:
★   support PC and MAC computers
★  no need to install Device Driver,plug and play

CE FCC and RoHs

High resolution VGA to av/rca/svideo Converter Package content

Head unit x 1                                                                                                                                                           AV cable x 1
VGA cable x 1
S video cable x 1
User Manual x 1                                                                                                                                                     USB Power cable x 1
