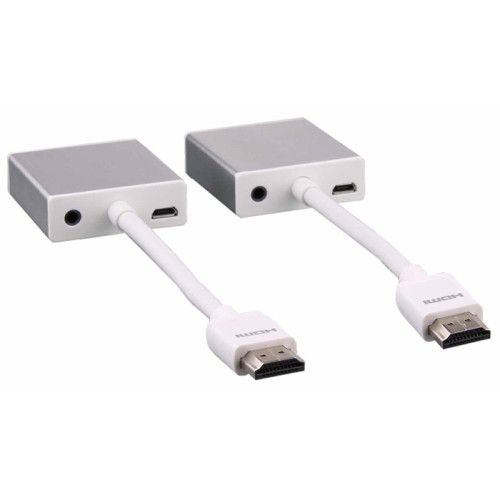

HY-602-V0-C HDMI to VGA/Audio converter
HY-602-V0-C HDMI to VGA/Audio converter Introduction
HDMI to VGA/audio converter can convert one input HDMI signal into a VGA analog video signal and one analog audio output. The HDMI input port can be connected to any standard HDMI signal source device (Such as the DVD player, PS3, s xbox360, STB,PC). The VGA output port can be connect to display device(TV/Monitor/Projector). The 3.5mm jack/Audio port can output stereo audio to an AV surround amplifier.
HY-602-V0-C HDMI to VGA/Audio converter Features
One single HDMI signal input convert to one VGA + Analog audio signal output
Support HDMI input: 480P/720P/1080P@60Hz
VGA output resolution format with the input format automatically changes
640 x 480@60Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 1280 x 720@60Hz
1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz
1600 x 1200@60Hz, 1920 x 1080@60Hz
The corresponding HDMI resolution
HDMI Input: 480P VGA output: 640 x 480@60Hz
HDMI Input: 720P VGA output: 1280 x 720@60Hz
HDMI Input: 1080P VGA output: 1920 x 1080@60Hz
Support PCM 2.0 channel stereo audio output
Built-in digital audio decoder, the LPCM/PCM digital audio decoding into analog stereo output
Low-power digital single chip solution, less heat and long time stability
Easy to install and automatically check the input signal
No need extra power supply
HY-602-V0-C HDMI to VGA/Audio converter Specifications
HDMI version.....................................................................HDMI 1.3
HDCP version.....................................................................HDCP 1.1
HDMI resolution.................................................................1080P/720P/480P@60Hz
Support up to VGA..............................................................1920 x 1080@60Hz
Support audio format..........................................................PCM
Max bandwidth...................................................................165MHz
Input/Output TMDS signal..................................................0.5-1.5vp.p(TTL)
Input/Output DDS signal....................................................5V p.p(TTL)
Output cable distance........................................................<=3m VGA standard cable
Max working current.........................................................360mA
Operating Temperature range............................................-15 C to +55 C
Operating Humidity range.................................................5 to 90%RH (No condeensation)
HDMI cable length............................................................110mm
Dimension (L X W X H)......................................................46 X 42 X 14.5(mm)
Weight.............................................................................35g
CE FCC RoHs
HY-602-V0-C HDMI to VGA/Audio converter Package content
HDMI to VGA/Audio converter x 1
3.5mm Audio cable x 1
User manual x 1
