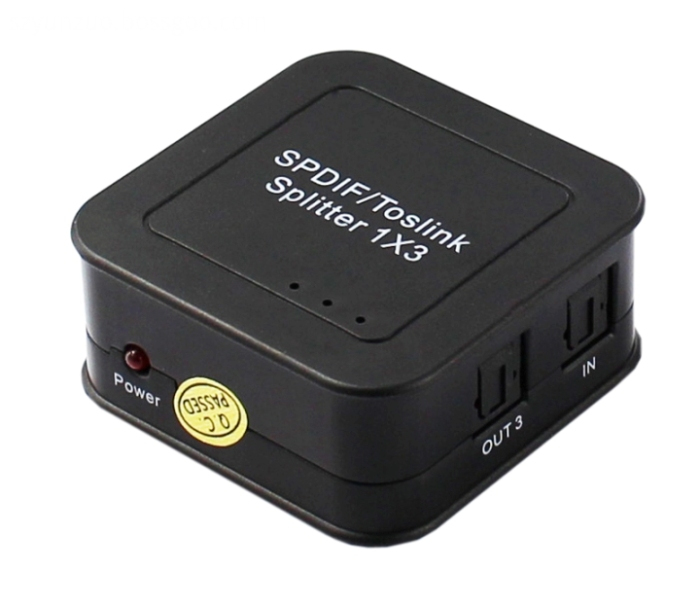

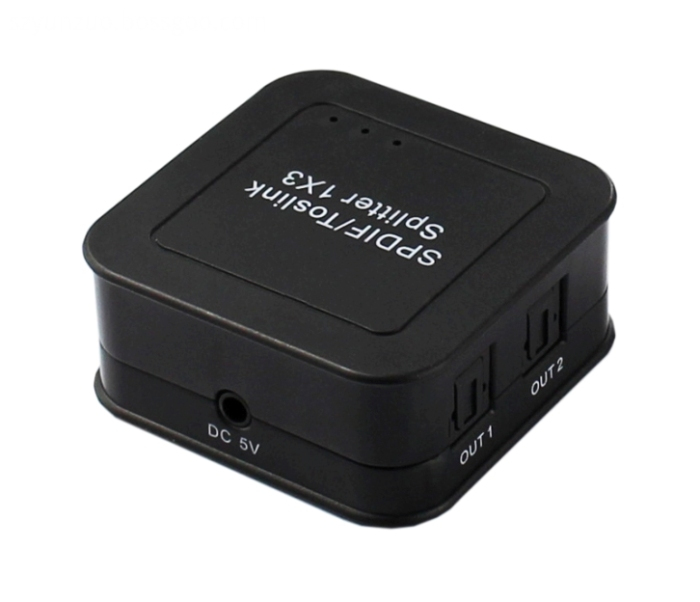

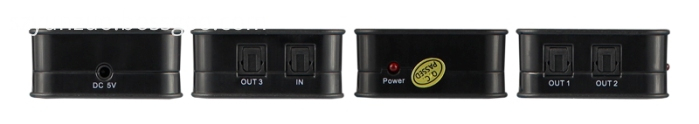

HY-T103-V0-A Optical audio splitter
HY-T103-V0-A Optical audio splitter Introduction:
This SPDIF/TosLink Digital Optical Audio splitters can let the user to connect and distribute
one digital optical SPDIF TosLink source to three amplifier.
HY-T103-V0-A Optical audio splitter Features:

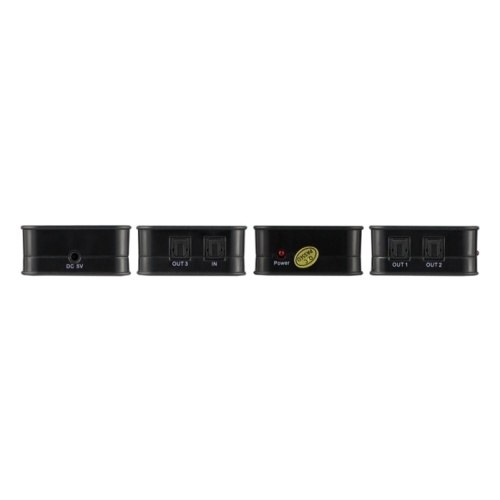

- One way of optical fiber signal input splitter to three sets of SPDIF/ToLink signal receiving device
- Audio format support: LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- No loss of quality
- Installs in minutes
- Need DC5V/500mA power supply
-
HY-T103-V0-A Optical audio splitter Specification:
Support audio format................................................................LPCM2.0/Dolby-AC3
Peak wavelength.........................................................................................650nm
Max baud rate............................................................................................16Mbps
Output cable distance...........≤40m(Use the optical fiber cable loss less the o.2Db/m)
Max working current....................................................................................100mA
Power adapter format..........Input:AC(50Hz, 60Hz) 100V-240V;Output: DC5V/500mA
Operating Temperature range................................................................(0 to +40℃)
Operating Humidity range.........................................5 to 90%RH(No Condensation)
Dimension (L X W X H)................................................................54 X 54 X 23.5(mm)
Weight.............................................................................................................35g
Certification: CE FCC RoHS

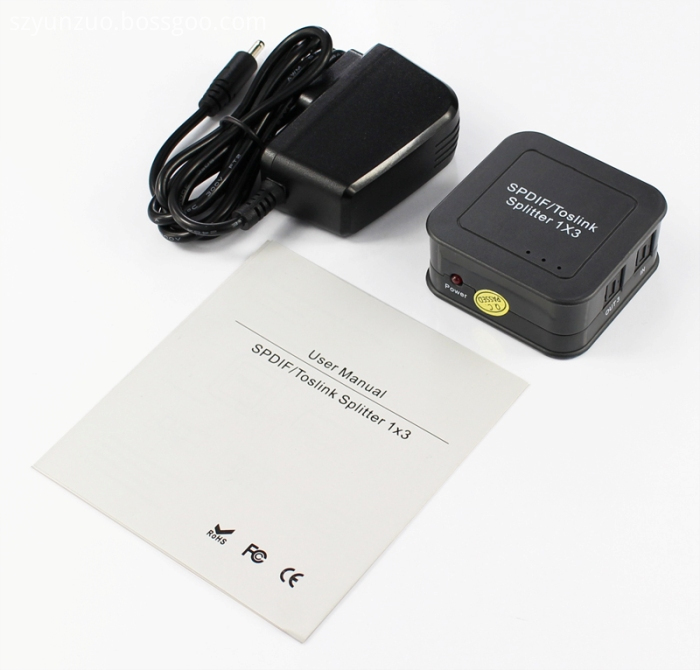

HY-T103-V0-A Optical audio splitter Package Content:
1. 3x1 Toslink/SPDIF Optical Digital Audio Splitter
2. 5V Power Adapter
3. Operation Manual
