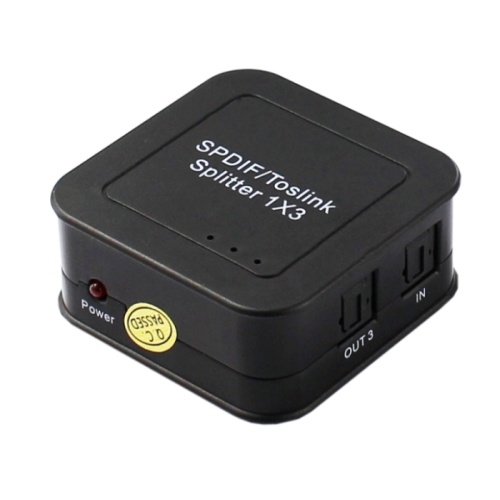

1x3 Toslink Digital Optical Audio Splitter

1x3 Toslink Digital Optical Audio Splitter Features:

Contact:tony at szyunzuo.com

• One way of optical fiber signal input splitter to three sets of SPDIF/ToLink signal receiving device
• Audio format support: LPCM2.0/DTS/Dolby-AC3
• Support signal retiming
• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m

Introduction:

This SPDIF/TosLink Digital Optical Audio splitters can let the user to connect and distribute
one digital optical SPDIF TosLink source to three amplifier.

Specification:

Support audio format................................................................LPCM2.0/Dolby-AC3
Peak wavelength.........................................................................................650nm
Max baud rate............................................................................................16Mbps
Output cable distance...........≤40m(Use the optical fiber cable loss less the o.2Db/m)
Max working current....................................................................................100mA
Power adapter format..........Input:AC(50Hz, 60Hz) 100V-240V;Output: DC5V/500mA
Operating Temperature range................................................................(0 to +40℃)
Operating Humidity range.........................................5 to 90%RH(No Condensation)
Dimension (L X W X H)................................................................54 X 54 X 23.5(mm)
Weight.............................................................................................................35g

Certification: CE FCC RoHS

Package Content:

1. 3x1 Toslink/SPDIF Optical Digital Audio Splitter

2. 5V Power Adapter
3. Operation Manual
