HDMI to HDMI Audio extractor adapter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/item/month |
| Supply Ability: | 10000pcs/item/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE FCC Rohs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian |
HDMI to HDMI Audio extractor adapter

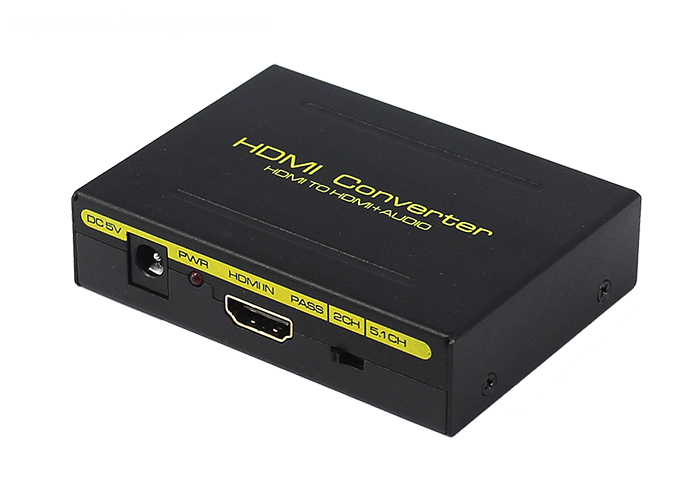

HY-404-V0-B HDMI to HDMI Audio Converter Features:

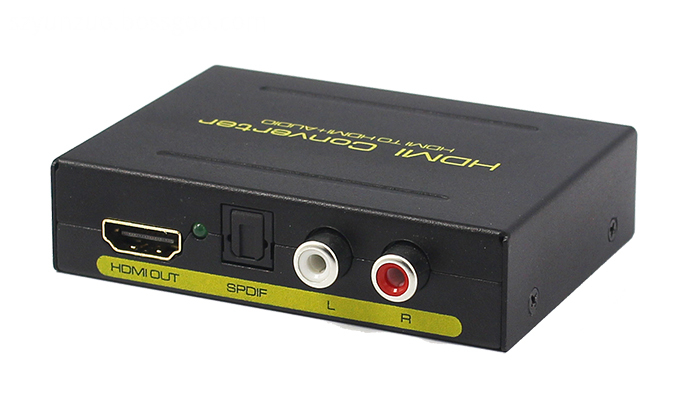

- One HDMI input convert to one HDMI+Audio(SPDIF+R/L)output.

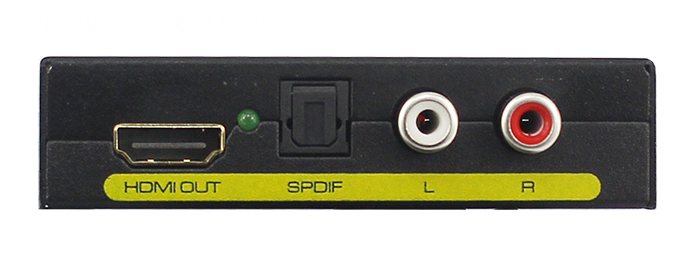

- Audio outputs support SPDIF and R/L analog audio.
- Input resolution up to 1080P (50/60Hz)

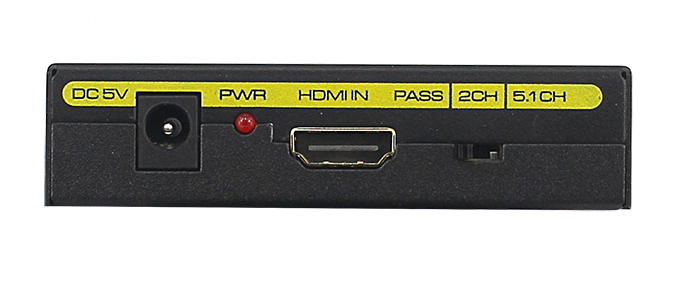

- HDMI to achieve the synchronization of audio signal separation. There are three kinds of audio mode for option: Pass/2.0CH/5.1CH.

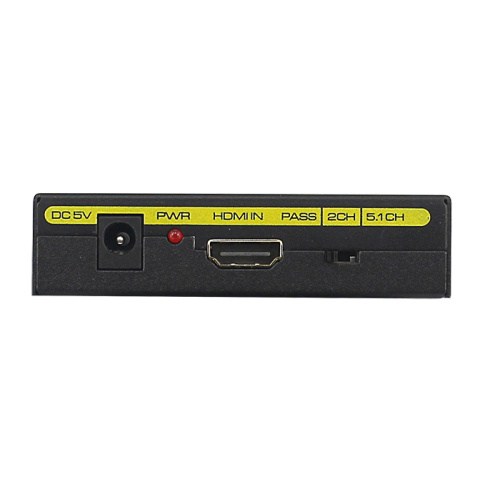

- LED indication:when source or sink is working, relative LED relative is lighting.
- No loss of quality.
- Installs in minutes.
- Need DC5V/1A power supply.
HY-404-V0-B HDMI to HDMI Audio Converter Introduction:
This HY-404-V0-B HDMI Audio Extractor with SPDIF RCA Out allows the HD Source connected to single HD Dispaly and adds extra one L+R and SPDIF audio out port.
HY-404-V0-B HDMI to HDMI Audio Converter Specifications:
HDMI resolution........................24/50/60fps/480i/480p/576p/720p/1080i/1080p
Support video color format.....................................24bit deep color 30bit, 36bit
Audio output......................................................................................L/R+SPDIF
Max bandwidth......................................................................................225MHz
Max band rate....................................................................................6.75Gbps
Input/Output TMDS signal...............................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal............................................................5Volts p-p(TTL)
Input cable length .............................................................≤15m AWG26 HDMI standard cable
Output cable length ...........................................................≤20m AWG26 HDMI standard cable
Max working current...............................................................................500mA
Power adapter voltage and current....................................Input: AC(50/60Hz) 100V-240V; Output: DC5V/1A
Operating Temperature range......................................................(-15 to +55℃)
Operating Humidity range................................5 to 90% RH (No Condensation)
Dimension(L x W x H)..........................................................84.5 x 67 x 21(mm)
Weight........................................................................................................135g
Certification: CE FCC RoHS

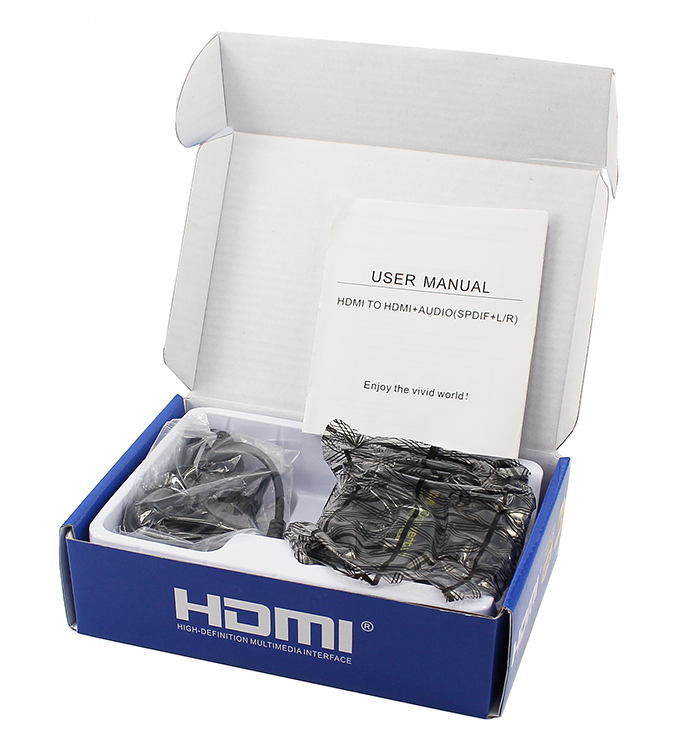

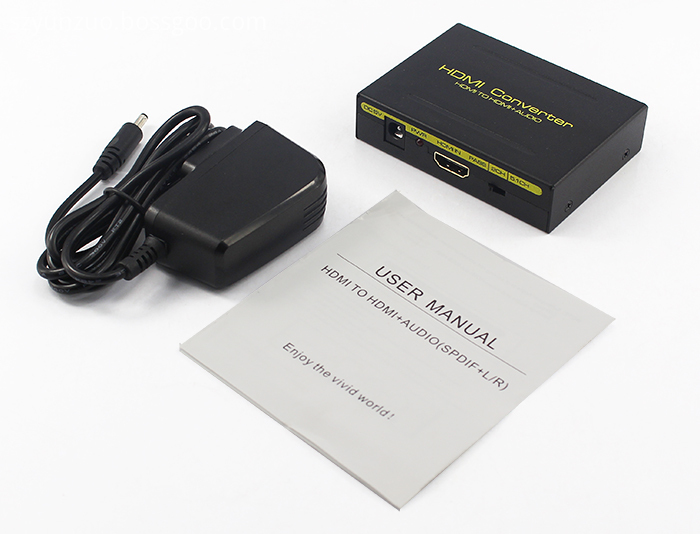

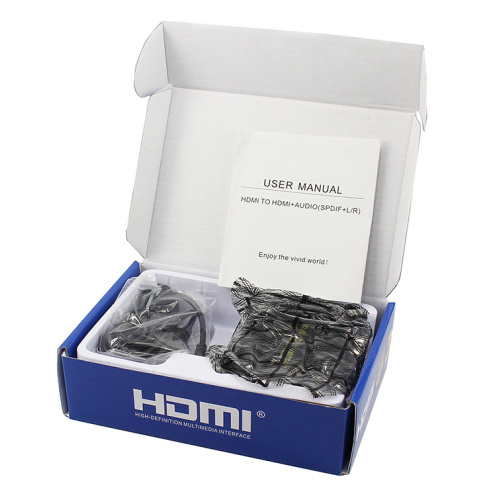

HY-404-V0-B HDMI to HDMI Audio Converter Package Content:
1. HDMI to HDMI Audio Extractor
2. 5V Power Adaptor
3. User Manual
