1 SPDIF Coaxial to Analog audio converter

                                     HY-400-E-V0 1 SPDIF  Coaxial to Analog audio converter

HY-400-E-V0 1 SPDIF  Coaxial to Analog audio converter Introduction

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available

for connection to an external device such as an amplifier via standard RCA-stylejacks.This Converter is small in size and quite easy to install.

This converter has many features that enable it to perform in a superior manner.Among those features you will find:

Converts Coaxial or Toslink digital audio signals to analog L/R audio

Supports sampling rate at 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz, up to 24-bit resolution

24-bit S/PDIF incoming bit stream on left and right channels

Provides electromagnetic-noise-free transmission

Easy to instal l and simple to operate

Signal Inputs/Output

Input Audio: Coaxial or Toslink digital audio

Output Audio: L/R audio or headphone

Connector

Input audio connector: Toslink, 1xRCA(Coaxial)

Output audio connector: 2xRCA(R/L) and 3.5mm headphone

Sampling rate: 32,44.1,48 ,96 and 192 Khz up to 24-bit resolution

Mechanical

Size(L-W-H): 51x41x26mm

Weight(Net): 78g

Warranty

Limited Warranty:1 Year Parts and Labor

Operating Temperature: 0℃ to +70℃

Operating Humidity: 10% to 85% RH(no condensation)

Storage Temperature:-10℃ to +80℃

Storage Humidity:5% to 90% RH(no condensation)

External Power Supply:5V DC@500mA

Power Consumption: 0.5 watts(max)

AC Power Adapter:US standard,UK standard and so on

Certificates CE, FCC and RoHs

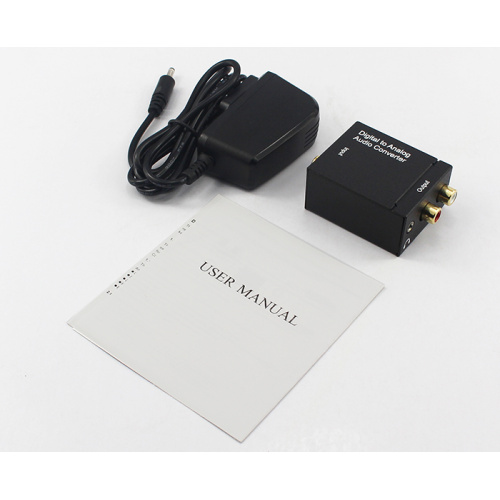

HY-400-E-V0  1 SPDIF  Coaxial to Analog audio converter Package Content

1) Main unit (Digital to Analog Audio Converter)
2)5V DC Power Supply
3)User `s Manual
