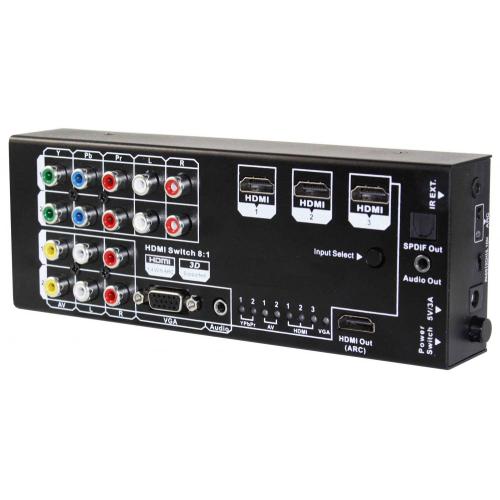

8 In 1 out HDMI Switch 1080P

                                           HY-8001-V0  8 In 1 out HDMI Switch 1080P

 HY-8001-V0  8 In 1 out HDMI Switch 1080P Introduction:

 Our unit (8x1) supports to switch one VGA source, two Analog Component Video sources, two Analog Composite Video sources and three HDMI sources for input. All of above with independent analog audio input. The analog audio from the input is digiitized and outputed to the HDMI connection. HDMI input supports HDMI 1.3b and HSMI 1.4 3D.

With the most advanced video processing technology, the converter can upscale the component, composite and VGA signal to 1080p 60Hz HDMI output, and enhances the brightness, contrast and color. Audio signal is processed by ADC chipset and mixed to the HDMI output.

Unit (8x1) has the ability of equalizition and amplification to ensure HDMI signal's transmission through long cable without quality loss.

Unit (8x1) offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space, security concerns, data center control , information distribution, conference room presentation, school and corporate traning environment.

 HY-8001-V0  8 In 1 out HDMI Switch 1080P Features:

Inpu8-inputs-HDMI x 1 output,SPDIF x 1 output,Audio x 1 output.
Inputs contain 2×YPBPR, 2×AV, 1×VGA and 3×HDMI signals, Output is HDMI signal.
No image or color distortion.
Allows display to view any source at any time.
Any resolution of Ypbpr, CVBS and VGA upscale to 1080p 60Hz.
Delivers uncompressed digital video with zero signal loss.
Supports Ultra HD 4Kx2K 30Hz.
Supports high definition resolutions 1080P, 1080I, 720P and standard video format.
Double switching modes, IR remote and manual.
HDMI V1.3 / HDMI V1.4 with 3D.
Auto detect inputs signals.

8-inputs-HDMI x 1 output,SPDIF x 1 output,Audio x 1 output.
Inputs contain 2×YPBPR, 2×AV, 1×VGA and 3×HDMI signals, Output is HDMI signal.
No image or color distortion.
Allows display to view any source at any time.
Any resolution of Ypbpr, CVBS and VGA upscale to 1080p 60Hz.
Delivers uncompressed digital video with zero signal loss.
Supports Ultra HD 4Kx2K 30Hz.
Supports high definition resolutions 1080P, 1080I, 720P and standard video format.
Double switching modes, IR remote and manual.
HDMI V1.3 / HDMI V1.4 with 3D.
Auto detect inputs signals.

HY-8001-V0  8 In 1 out HDMI Switch 1080P Specifications:

Operating Temperature Range................................................... -5 to +35°C (-41 to +95 °F)

Operating Humidity Range......................................................... 5 to 90 % RH (no condensation)

Input Video Signal................................................................... 0.5-1.0 volts p-p

Input DDC Signal .....................................................................5 volts p-p (TTL)

Output Video......................................................................... HDMI1.4 with 3D (Only valid when input HDMI 3D source)

Maximum Transmission Distance................................................ <15m

Power Consumption............................................................... 10 wtts (Max.)

Power Supply........................................................................ DC/5V

Dimensions .........................................................................1950mmW×350mmH×700mmD/ 16.9''W×1.9''H×7.9''D

Timing Table

YPBPR/ HDMI...............................480i,480p,576i,576p,720p(50/60Hz), 1080i,1080p(50/60Hz)

VGA.............................................800*600 60Hz, 1024*768 60Hz, 1280*1024 60Hz, 1400*1050 60Hz, 1600*1200 60Hz, 1920*1080 60Hz, 1920*1200 60Hz

HY-8001-V0  8 In 1 out HDMI Switch 1080P Package Content

HDMI Switcher x1

Power Adapter x 1

Remote Control x 1

User Manual x 1
