HDR Splitter 1 x 8
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union, Cash
- Incoterm:
- FOB, CIF, exw
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000pcs/item/month |
| Supply Ability: | 100000pcs/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Cash |
| Incoterm: | FOB,CIF,exw |
| Certificate: | CE FCC UL Rohs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian |

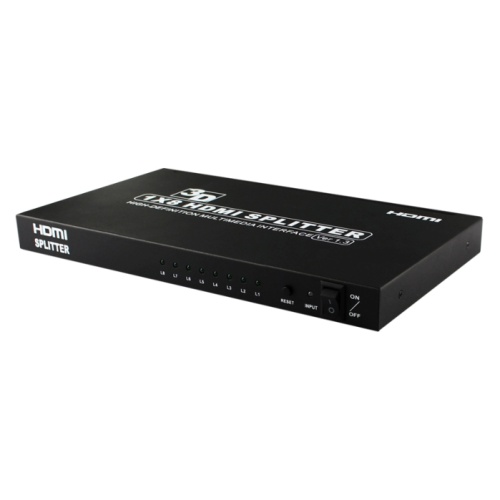

HY-1084-V1-A HDR Splitter 1 x 8
HY-1084-V1-A HDR Splitter 1 x 8 Introduction
This HDMI splitter box distributes 1 way HDMI signal to 8 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, TV and more other devices. It can optimize your home theater system to the best effect.
HY-1084-V1-A HDR Splitter 1 x 8 Features:
- Split one HDMI input signal to eight HDMI output signals identical to the input signal.
- Fully HDMI 1.3 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
- Supports high resolutions up to 1080p, and also supports 480i, 480p,576i, 576p, 720p, 1080i, 1080p.
- Supports 12-bit Deep Full HD, Full 3D and 1080p video.
- Supports Standard Audio, DSD Audio and HD (HBR) Audio.
- Extend the transmission distance and improve transmission signal.
- Compatible with DVI through a HDMI to DVI adapter.
- Supports hot plug-and-play.
- LED indicate signal and power mode.
- HDCP complaint
HY-1084-V1-A HDR Splitter 1 x 8 Specifications:
HDMI version...............................................................................HDMI 1.3
HDMI resolution ............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ..................24bit/deep color 30bit, 36bit, 48bit
Max band width............................................................................297MHz
Max band rate............................................................................8.91Gbps
Input/Output TMDS signal ......................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal..................................................5Volts p-p (TTL)
Max working current.......................................................................500mA
Power adapter format Input:...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................................(-15 to +55℃)
Operating Humidity range........................5 to 90%RH (No Condensation)
Dimension (L x W x H).........................................................70x60x20mm
Vertical Frequency Range...................................................1080p@60Hz
Support audio format..................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
1080P Input cable distance...............≤15m AWG26 HDMI standard cable
1080P Output cable distance.............≤20m AWG26 HDMI standard cable
Certificates: CE FCC RoHS

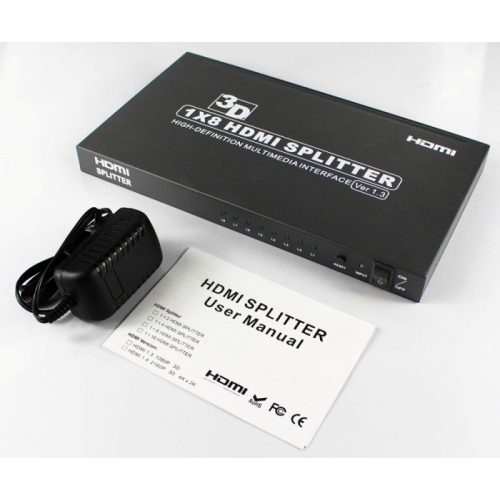

HY-1084-V1-A HDR Splitter 1 x 8 Package content:
HDMI 1x8 Splitter x1
Power Adapter x1
User Manual x1
