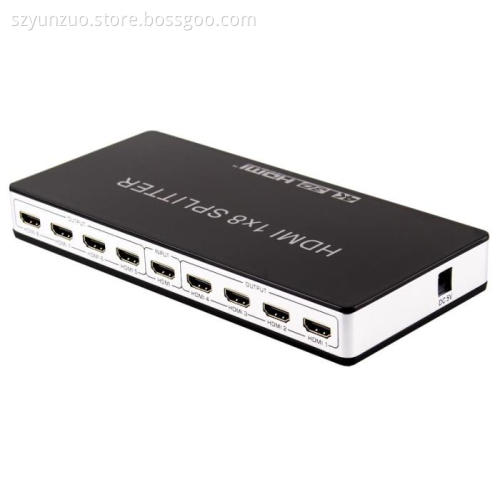

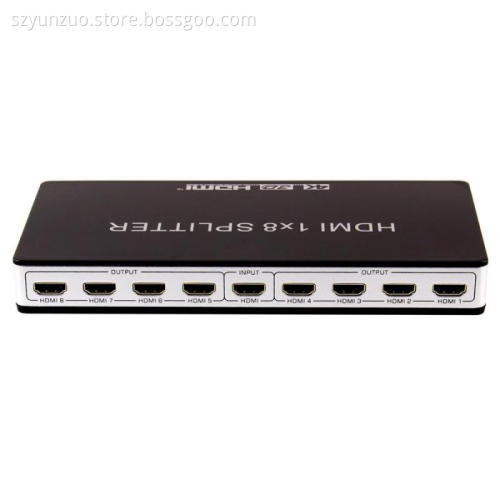

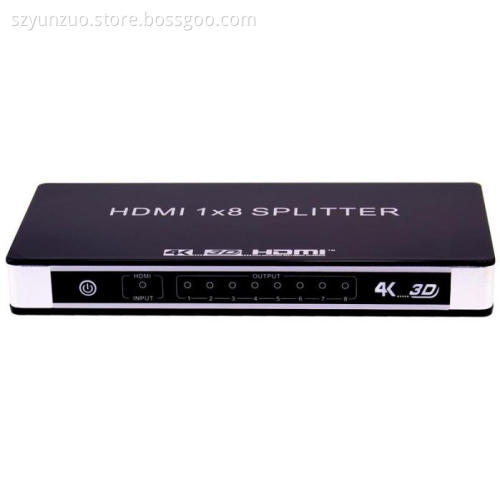

Video HDMI Splitter 1x8 for TV

Video HDMI Splitter 1x8  Features:

• HDMI Splitter 1 in 8 out support HDMI 1.4b specification, support HDCP 1.4 protocol
• Supports up to 4K x 2K for HDMI input and output, HD resolutions up to 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p, Supports 12-bit Deep Full HD

• Supports Full 3D video (To get 3D, all units connected to the splitter outputs must support 3D)
• Extends the transmission distance and improve transmission signal.

• It is applicable to source device and high definition display terminal device such as DVI and HDTV which have HDMI interfaces or digital interfaces.

• Compatible with DVI through a HDMI to DVI adapter
• Supports hot plug-and-play
• LED indicates signal and power mode
• Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
• Support AWG26 HDMI cable length up to66 ft.
• Support hot plug-and-play

•




  Contact:tony at szyunzuo.com




Introduction:
This HDMI splitter is a product can distribute 1 way HDMI signal to 8 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, TV and more other devices. It can optimize your home theater system to the best effect.

Specifications:

HDMI version..............................................................HDMI 1.4, HDCP 1.3

HDMI resolution ..........24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

Support video color format ...................24bit/deep color 30bit, 36bit, 48bit

VerticalFrequencyRange..............................1080p@60Hz; 4K x 2K@30Hz

Support audio format.................................DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD

Max band width............................................................................297MHz

Max band rate............................................................................8.91Gbps

Input/Output TMDS signal ........................................0.5~1.5Volts p-p(TTL)

Input/Output DDC signal....................................................5Volts p-p (TTL)

1080P Input cable distance...................≤15mAWG26 HDMI standard cable

1080P Output cable distance.................≤20mAWG26 HDMI standard cable

4KX2K Input cable distance.....................≤5mAWG24 HDMI standard cable

4KX2K Output cable distance.................≤10mAWG24 HDMI standard cable

Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V

Operating Temperature range................................................(-15 to +55℃)

Operating Humidity range..........................5 to 90%RH (No Condensation)

Certificates: CE FCC RoHS

Package content:

HDMI 1x8 Splitter x1

Power Adapter x1

User Manual x1
