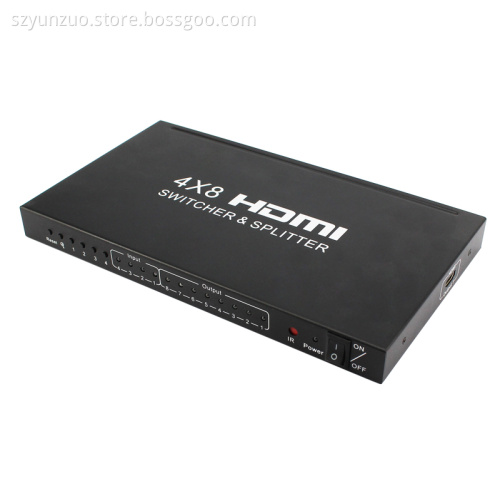

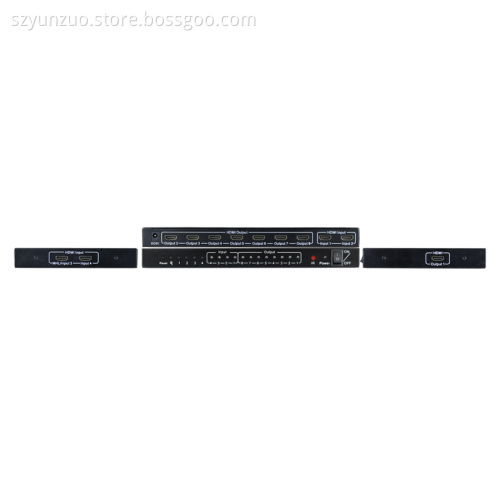

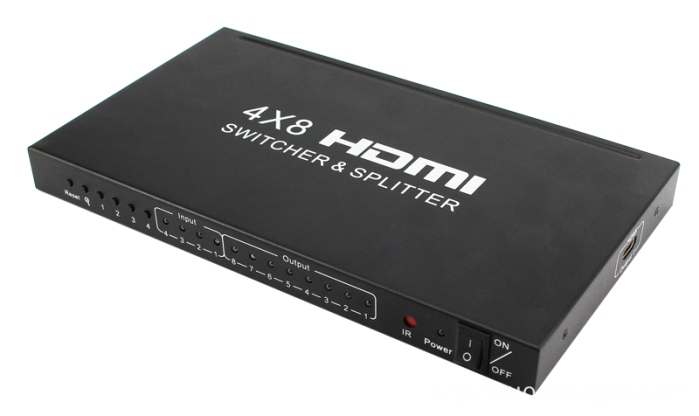

4x8 HDMI Distribution Amplifier Matrix Switcher

4x8 HDMI Distribution Amplifier Matrix Switcher Introductions:

This 4x8 Hdmi Distribution allows access to one MHL and multiple HDMI sources, one a HDMI sink, can distribute HDMI signal without loss to one or more display terminal device. The hdmi distribution supports one MHL/HDMI port operates in dual mode. 4 HDMI inputs and 8 HDMI output port. In MHL mode, the hdmi switch supports resolutions up to 720p / 60Hz, 1080P / 30Hz or at Packed Pixel mode 1080p / 60Hz.

 In HDMI mode, the Product supports resolutions up to 4Kx2K 24/25/30Hz. The hdmi switcher distribution also supports EDID RAM. The Product allows 4 HDMI devices to be switched easily through 8 HDMI compatible monitor or projector. When multiple sources simultaneously input,

 support picture preview and fast switching, so you miss the wonderful every second. The Product can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Features:

1. Supports 1 MHL and 3 HDMI input ports with dual mode capability.
2. Supports 8 HDMI output port.
3. Compliant with MHL2.0 and HDMI 1.4b specification.
4. Supports screen preview.
5. Supports fast switching.
6. Supports deep color 30bit, 36bit.
7. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
8. Digital audio format, as DTS-HD/Dolby- trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
9. Supports signal retiming.
10. Supports Equalizer TMDS Output: 25MHz–340MHz TMDS clock.
11. Supports up to 340 MHZ TMDS clock rate( 4Kx2K) for HDMI input.
12. Supports EDID RAM.
13. Supports 1080P input up to 15 meteres AWG26 HDMI standard cable length, output up to 20 meters AWG26 cable length.
14. Inputs can be switched with the IR remote control,also can be controlled by button.
15. Extend the transmission distance and improve transmission signal.
16. Compatible with DVI through a HDMI to DVI adapter.
17. Supports hot plug-and-play.
18. LED indicate signal and power mode.
19. No loss of quality.
20. Installs in minutes.

Specifications:

Maximum Single Link Range........................................................24/25/30fps/4Kx2K
HDMI resolution.....................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format...........................................24bit/deep color 30bit, 36bit
Vertical Frequency Range..................................................1080p/60Hz; 4Kx2K/25Hz
Support audio format ............DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby- AC3/DSD
Max bandwidth.............................................................................................340MHz
Max band rate............................................................................................10.2Gbps
Input/ Output TMDS signal ...............................................0. 5~ 1. 5Volts p- p( TTL)
Input/ Output DDC signal ..............................................................5Volts p- p ( TTL)
1080P Input cable distance................................≤15m AWG26 HDMI standard cable
1080P Output cable distance.............................≤20m AWG26 HDMI standard cable
4KX2K Input cable distance................................≤10m AWG24 HDMI standard cable
4KX2K Output cable distance............................ ≤15m AWG24 HDMI standard cable
Max working current.........................................................................................2.5A
Operating Temperature.....................................................................(-15 to +55℃)
Operating Humidity range.......................................5 to 90% RH(No Condensation)
Dimension( L x W x H) .................................................................275x157x25(mm)
Weight.............................................................................................................924g

Certifications: CE FCC RoHS

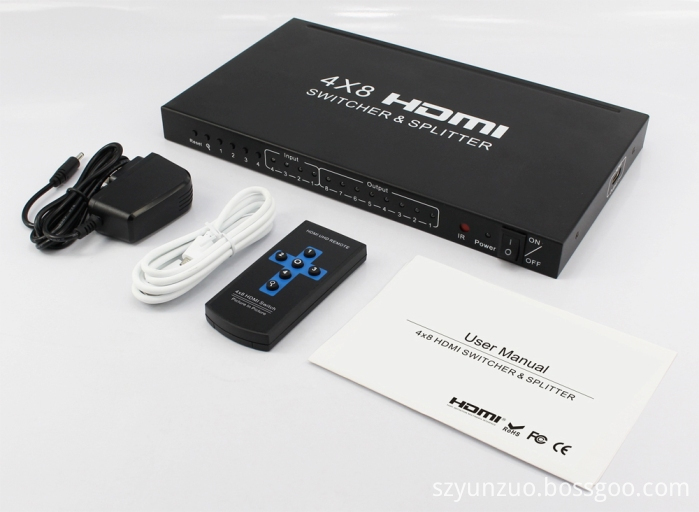

Package Content:

1. HDMI 4×8 Unit x1
2. DC 5V Power Adapter x1
3. Remote controller x1
4. User Manual x1
5. MHL Cable x1
