5 input HDMI Switch with Optical and R/L

                      HY-4501-V0-E 5 input HDMI Switch with Optical and R/L

HY-4501-V0-E 5 input HDMI Switch with Optical and R/L Introduction

Ran out of HDMI ports on your HDTV/monitor/projector? Want to reduce the mess of cables connected to it? This 5x1 HDMI Intelligent Switch with Audio Extractor and Infrared Remote Control will take care of these problems. It has 5 HDMI input sources to switch from at ease with the infrared remote control. A button to manually switch between the 5 sources is also built-in.

HY-4501-V0-E 5 input HDMI Switch with Optical and R/L features:

• 5 port HDMI Switch 5 Input 1 output with optical Toslink/SPDIF and stereo RCA audio output.
• Input: 5 x HDMI (input port 1 supports HDMI and MHL)
• Output: HDMI x 1, Toslink/SPDIF x 1, Stereo RCA x 1.
• Supports HDMI v1.4, Ultra HD 4Kx2K/30Hz, HDCP pass-through.
• Supports Full HD 1080P 3D.
• Supports 12-bit Deep Color per channel, maximum 36-bit all channels.
• Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD, and Dolby TrueHD.
• Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximum total TMDS throughput is 9.95Gbps.
• Supports uncompressed audio such as LPCM.
• Supports up to 7.1CH digital surround on HDMI output.
• Supports up to 5.1CH digital surround on Toslink output.
• Supports up to 2.0 channel analog stereo on Stereo output.
• Supports Standard Audio, DSD Audio, and HD (HBR) Audio.
• Supports ARC (Audio Return Channel).

HY-4501-V0-E 5 input HDMI Switch with Optical and R/L specifications:
HDMI resolution ................................................Ultra HD 4K2K max; 3D 1080p/24 max
Support video color format ............................36-bit Deep Color all channels maximum
Audio output ........................HDMI pass-through; Up to 7.1CH; Toslink output up to 5.1 ch; RCA L/R out put stereo audio
Max bandwidth per channel ...........................................................300MHz
Max baud rate per display ...............................................................9.95Gbps
Input/Output TMDS signal ...........................................................0.5~1.5V p-p(TTL)
Input/Output DDC signal ................................................................5V p-p(TTL)
Input cable distance ...............≤50ft/15m 24 AWG HDMI high speed Cable at 1080P/24bit 60Hz
Output cable distance ..................≤50ft/15m 24 AWG HDMI high speed Cable at 1080P/24bit 60Hz
Operating Temperature range .............................................5°F to 131°F / -15°C to 55°C
Operating Humidity range ....................................................5% to 90% RH(No Condensation)
Dimension (LxWxH) ........................................................................218x106x28mm
Weight ...............................................................................................318g
Max working current ..........................................................................1A
External Power Supply ...............................................Input: AC(50/60Hz); Output: DC5V/1A

Certification: CE FCC RoHS

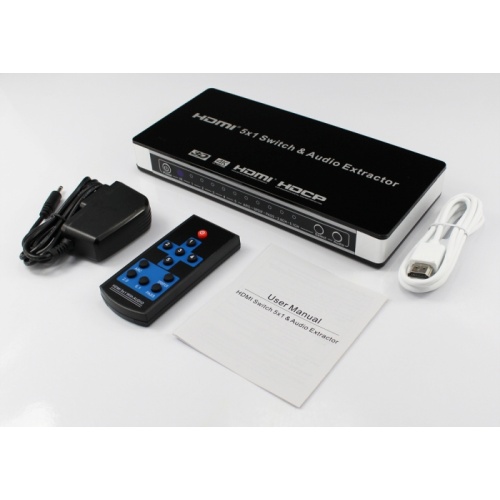

HY-4501-V0-E 5 input HDMI Switch with Optical and R/L Packaging content:

Power Adapter x 1
Remote Control x 1
MHL-HDMI Cable x 1
User Manual x1
HDMI Switch 5x1 & Audio Extractor x1
