Remote Control Hdmi Switch (4x1 Hdmi Switch) Hdmi Splitter introduction

This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switch. It supports four High definition input sources display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD inputs freely. The product can be controlled by the front button or IR controller.

Remote Control Hdmi Switch (4x1 Hdmi Switch) Hdmi Splitter features

1. Supports 4 HDMI input ports.
2. Supports 1 HDMI output port.
3. Compl iant with HDMI 1.3a,HDCP 1.2.
4. Supports multiplexed HDMI 4-input and 1-output.
5. Supports up to 1080p High Definition resolution.
6. Supports 4by1 Quad Multi-viewer and seamless switch.
7. Supports 720/1080p output resolution.
8. Supports audio switch.
9. Supports fast switching.
10. Supports Equal izer TMDS Output: 25MHz–225MHz TMDS clock.
11. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
12. Supports 1080P input up to 15 meters and output up to 20 meters ( cable standard AWG26).
13. Inputs can be switched with the IR remote control ler, also can be con by built-in button.
14. Extend the transmission distance and improve transmission signal.
15. Compatible with DVI through a HDMI to DVI adapter.
16. Supports hot plug-and-play.
17. LED indicate signal and power mode.
18. No loss of quality.
19. Installs in minutes.

Remote Control Hdmi Switch (4x1 Hdmi Switch) Hdmi Splitter Specifications:

Maximum Single Link Range................................................................1080P/60Hz

HDMI version........................................................................................HDMI 1.3, HDCP 1.2
HDMI input resolution.....................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
HDMI output resolution...........................................................................720p/1080p/60Hz
Supports video color format-.....-.............................................................24bit/deep color 30bit, 36bit
Vertical Frequency Range........................................................................720/1080p@60Hz
Max bandwidth--.......................................................................................225MHz
Max bandrate--..........................................................................................6.7Gbps
Input/Output TMDS signal --.......................................................................0. 5~ 1. 5Volts p- p( TTL)
Input/Output DDC signal --...........................................................................5Volts p- p ( TTL)
1080P Input cable distance--.........................................................15m AWG26 HDMI standard cable
1080P Output cable distance--.......................................................≤20m AWG26 HDMI standard cable
Max working current--......................................................................................1A
Operating Temperaturer--................................................................................(-15 to +55℃)
Operating Humidity range--.......................................................................5 to 90%RH (No Condensation)
Dimension (L x W x H)-......................................................................................200x95x20mm
Weight--..............................................................................................................460g

Certificates CE FCC RoHs and Power adapter UL certified

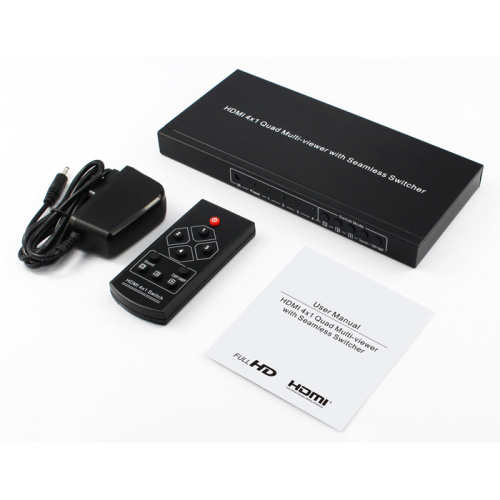

Remote Control Hdmi Switch (4x1 Hdmi Switch) Hdmi Splitter Package Content

Head unit                 x1

Remote controller      x1
User Manual              x1
DC 5V Power Adapter  x1
