HDMI switch 4 x 1

HDMI switch 4 x 1 Introduction

HDMI Switch is a product that can switch multi-group HDMI signals to one high display device such as HDTV by using manual push button. Doing so can avoid plugging and unpluging cables frequently. It can optimize your home theater system to the best effect.

HDMI switch 4 x 1 Features

Switching is done via itself automatically when signal present on the ports.

Support HDCP protocol and applicable to source device and high definition display device such as DVD and HDTV which have HDMI ports or digital ports, and are comppliant with HDCP protocol.

Support high resolutions HDMI 1.3 up to 1920*1200

Extend the transmission distance and improves transmission signal

Compatible with DVI through a HDMI to DVI adapter

Support hot plug-and-play

Convenient to connect multi-group input signals to display on one HDTV.

Save space,allow several sources to use one high definition display device simultaneously

Select input port by hand freely.

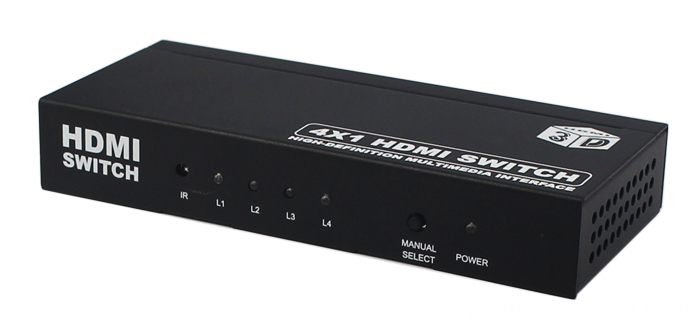

LED indicator signal and power mode.

Power supply(Please refer to technical parameter)

Application

A plurality of HDMI signals from the source device such as DVD player, satellite receiver, Set-top-box, DV camera, A/V receiver and those products with HDMI interface to digital TV in one HDMI flat panel display or high definition television show.

Specifications

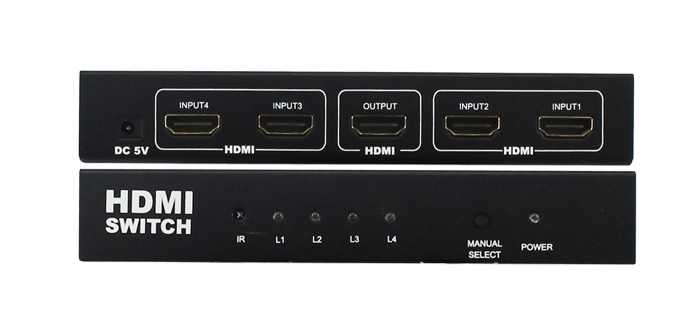

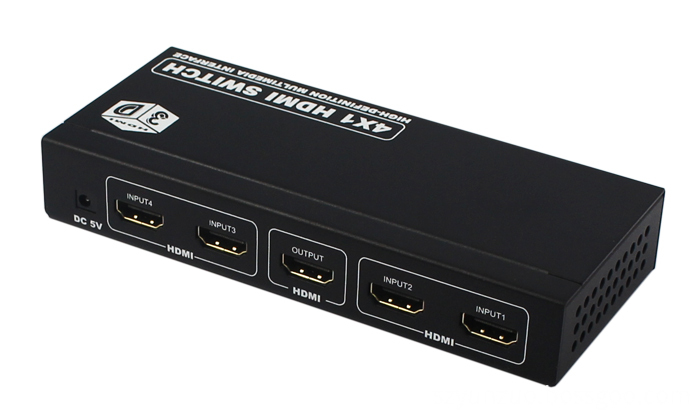

HDMI Source input port: 4 HDMI input ports

Display device output port: 1 HDMI input port

Source port connector: 19pin HDMI port

Display device port connector: 19pin HDMI port

HDCP compliant: Yes

Device port LED: 5

HDMI version: HDMI 1.3

Single Link Range:1920 x 1200

Band width: Up to 250Mhz

Signal speed: Up to 2.5Ghz

The cable standard: 28AWG

The length of output cable:<=10M

Vertical Frequency range: 60Hz

Power Consumption(max): 3Watts

Operation Temperature:0℃-70℃

Working voltage: DC5V

Certificates CE FCC and RoHs

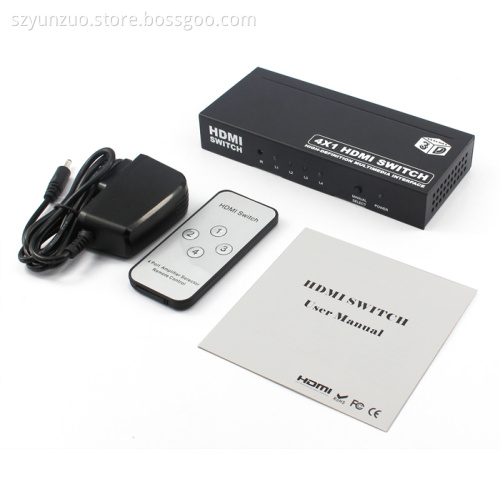

Package content

1 x 4 x 1 HDMI switch

1 x Power adapter

1 x Remote controller
