1 x 4 HDMI Audio Selector
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, FCA
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian, Shenzhen Yunzuo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,FCA |
| Certificate: | CE FCC RoHS |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian,Shenzhen Yunzuo |

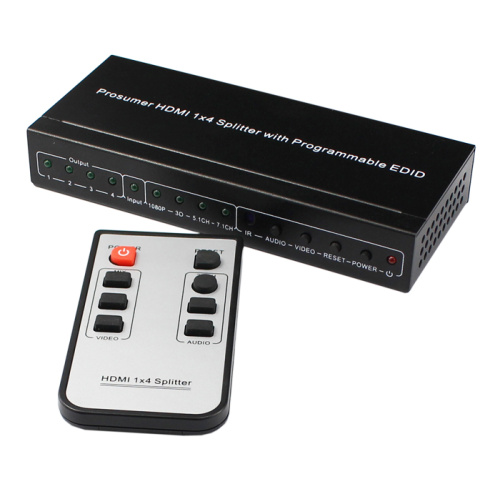

HY-SP30104-S-H 1 x 4 HDMI Audio Selector
HY-SP30104-S-H 1 x 4 HDMI Audio Selector Features:
◆ Prosumer HDMI 1x4 splitter with programmable Audio EDID 7.1CH, 5.1CH and 2CH and audio SPDIF output
◆ HDCP 1.2 Compliant, support HDMI Ver 1.3, Supports 12-bit Deep FULL HD, 1080P 3D (To get 3D, all units connected to the splitter outputs must support 3D)
◆ Support high resolutions up to 1080p, including 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
◆ It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
◆ Supports Standard Audio, DSD Audio and HD (HBR) Audio.
◆ Extend the transmission distance and improve transmission signal.
◆ Compatible with DVI through a HDMI to DVI adapter.
◆ Support hot plug-and-play.
◆ Full Size Metal Jack Construction with Front Panel LED Indicators.
◆ Power supply(please refer to technical parameter).
HY-SP30104-S-H 1 x 4 HDMI Audio Selector Introduction:
This reliable splitter with SPDIF audio output will take any HDMI signal (rev 1.3b) and duplicate the signal, sending the same high definition signal to 4 displays simultaneously.It comes with three programmable EDID (7.1CH,5.1CH and 2CH).
HY-SP30104-S-H 1 x 4 HDMI Audio Selector Specifications
HDMI Source Input Port ........................................................... 1
Display Device Output Port ........................................................4
Source Port Connector ......................................................... 19pin HDMI
Display Device Port Connector ..............................................19pin HDMI
Device port LED and system status LED ............................... 10
Single Link Range ...............................................................1920*1200
HDMI Version .................................................................... HDMI 1.3
Bandwidth ......................................................................... Up to 225Mhz
Signal speed ...................................................................... Up to 3.4Ghz
The length of output cable .................................................... ≤10M
The cable standard ............................................................26AWG HDMI 1.3
1080P Vertical Frequency Range ........................................ 60Hz
Power Consumption(max) ...................................................10 Watts
Operation Temperature .................................................... 0℃ to 70℃
Working voltage ................................................................. DC 5V
Certification: CE FCC RoHS
HY-SP30104-S-H 1 x 4 HDMI Audio Selector Package Content:
1. 1x4 HDMI Splitter with audio out spdif x 1
2. Power Adaptor x 1
3. User Manual x 1
4. Remote Control x 1
