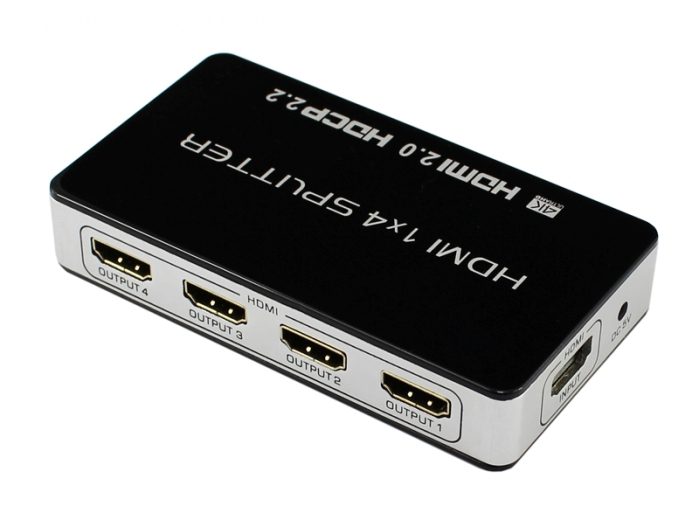

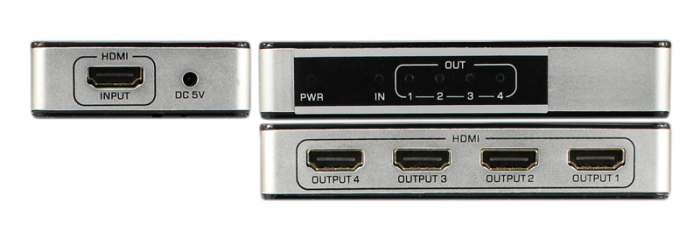

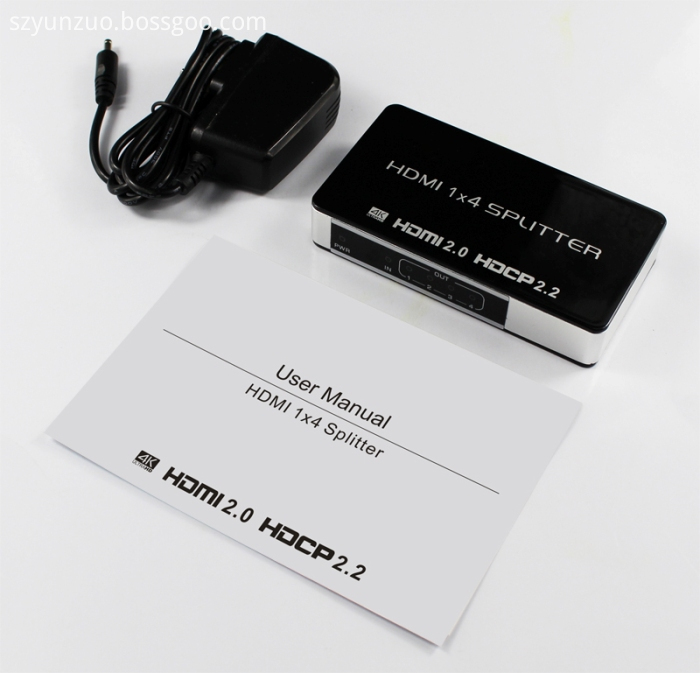

HDMI 1X4 Splitter 3D

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 100 Bag/Bags

Min. Order:: 100 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen Chiwan, Shenzhen Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	100000
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	CE FCC RoHS
HS Code:	8543709990
Transportation:	Ocean,Land,Air
Port:	Shenzhen Chiwan,Shenzhen Yantian

Product Description

Features:
◆ Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces. ◆ On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0 specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4/2.2 specification. ◆ Wide Frequency Range: 25MHz-600MHz. ◆ Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p. ◆ Supports jitter Clean capability for more cascadable stages.
◆ Supports 12-bit Deep Full HD, Full 3D and 4k2k 60Hz video. ◆ Supports standard Audio,DSD Audio and HD(HBR)Audio. ◆ Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports. ◆ Supports conversion of HDMI signalling to DVI/HDMI signalling. ◆ Supports HDCP 1.4 to HDCP2.2 conversion. ◆ Supports HDCP 2.2 to HDCP1.4 conversion. ◆ Supports on-chip 512 byte E-DDC EDID RAM for input port. ◆ Supports hot plug-play. ◆ Cascadable to make more than 4 output ports. ◆ Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys. ◆ LED indicate signal and power mode. ◆ Power supply(please refer to technical parameter).

Specifications:

HDMI version-----------------.--------......................HDMI 2.0, HDCP 2.2 HDMI resolution -------...................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p Supports video color format ....------...--..-.-...................24bit/deep color 30bit, 36bit, 48bit Supports audio format--..................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) Max bandwidth------------.--.......---............---.----------.600MHz Max baud rate--------.-------.-.----....................---------..18.0Gbps Input/Output TMDS signal ----.----------..-...................--.....0.5~1.5Volts p-p(TTL) Input/Output DDC signal -----------------.....................--...--.5Volts p-p (TTL) Input cable distance..-... ---------.-------.........≤15m AWG26 HDMI standard cable Output cable distance-----------.---......................≤20m AWG26 HDMI standard cable Max working current------------..----...................-----------...1200mA Power adapter format Input..-----.............................AC100V-240V (50/60Hz) ; Output: DC 5V/2A Operating Temperature range--..---...................--.--.---------.-- (-15 to +55℃) Operating Humidity range----------.-.---...................-5 to 90%RH (No Condensation) ----------.-.---...................-...........................D imension (L x W x H) 110x60x20(mm) Weight--...............................................................................................................................105g
