3 in 1 out hdmi switch
- Payment Type:
- L/C, T/T, D/P, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000 |
| Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE,ROHS,UL ,FCC |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian |

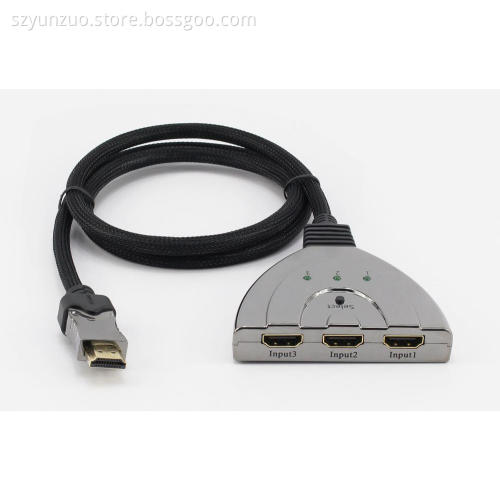

1. Supports 3 HDMI input ports. 2. Supports 1 HDMI output port. 3. Compliant with HDMI 1.4b specification. 4. Supports deep color 30bit, 36bit. 5. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC. 6. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/ Dolby-AC3/DSD. 7. Supports signal retiming. 8. Supports Equalizer TMDS Output:25MHz – 225MHz TMDS clock. 9. Supports up to 225 MHz TMDS clock rate(1080P@60Hz) for HDMI input. 10. Supports EDID RAM. 11. Supports 1080P input up to 10metres AWG26 HDMI standard cable length, output up to 15metres AWG26 cable length 12. Inputs can be switched with the IR remote control,also can be controlled by button. 13. No loss of quality. 14. Installs in minutes
Specifications:
Support video color format--........................24bit/deep color 30bit,36bit Vertical Frequency Range...................................................60Hz @ 1080p Support audio format-............................ DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD Max bandwidth--......................................................................225MHz Max band rate--.....................................................................6.75Gbps Input/Output TMDS signal --..............................0.5~1.5Volts p-p(TTL) HDMI resolution.....24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i
Input/Output DDC signal --........................................5Volts p-p (TTL) 1080P Input cable distance--..........≤10m AWG26 HDMI standard cable 1080P Output cable distance--........≤15m AWG26 HDMI standard cable
Max working current--..............................................................500mA Operating Temperaturer--..............................................(-15 to +55℃) Operating Humidity range--...................5 to 90%RH (No Condensation) Dimension (L x W x H) ....................................................82x75x17(mm) Weight--......................................................................................92g
