HY-4301-V0-B 3 x 1 HDMI Audio Extractor
HY-4301-V0-B 3 x 1 HDMI Audio Extractor Introduction
HDMI 3x1 Switch with Audio Extractor allows you to connect three HDMI input to one HDMI output, with MHL support on one input port. It also allows you to connect to a7.1 channel digital surround on HDMI output or, 5.1 channel digital surround sound on theToslink/SPDIF, Coaxial and HDMI output, or 2.0 channel analog stereo on the 3.5mm Stereo,Toslink/SPDIF, Coaxial and HDMI output.
HDMI Switch 3 x 1 with audio extractor Features

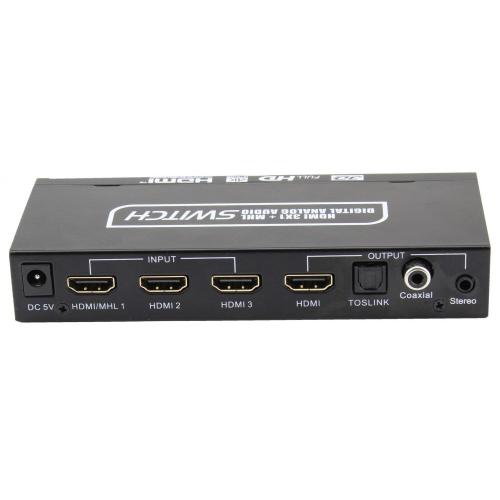

Input: HDMI x3(HDMI/MHL port supports MHL).
Output: HDMI x1, Toslink/SPDIF x1, Coaxial x1, Stereo 3.5mm x1.
Supports Ultra HD 4K,Full HD,3D.
Supports HDMI 1.4.
Supports HDCP 1.4.
Supports 12-bit Deep Color per channel, maximum 36-bit all channels.
Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximum
total TMDS through output is 9.95Gbps.
Supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD,
and Dolby TrueHD.
Supports HDMI pass-through.
Supports up to 7.1CH digital surround on HDMI output.
Supports up to 5.1CH digital surround on Toslink/SPDIF, Coaxial output.
Supports 2.0CH analog stereo on Stereo output.
Supports 8- channel HDMI outputs.
Supports Standard Audio,DSD Audio, and HD(HBR) Audio.
Supports ARC(Audio Return Channel).
HY-4301-V0-B 3 x 1 HDMI Audio Extractor Specifications
Video and Audio
HDMI resolution...........................................4K x 2K 24/25/30fbs@30Hz, 3D(1080P@24/60/120Hz), 1080p/1080i/720p/576p/576i/480p/480i; @24/25/60fbs@120Hz
Audio Format..............................................DTS-HD,Dolby TrueHD,LPCM7.1,DTS,Dolby Digital AC3,DSD
Max bandwidth per channel....................................................................300MHz
Max baud rate per display.......................................................................9.95Gbps
Input/Output TMDS signal.......................................................................0.5~1.5V p-p(TTL)
Input/Output DDC signal.........................................................................5V p-p(TTL)
Input cable distance................................................................................≤15m AWG24 HDMI standard cable
Output cable distance...............................................................................≤20m AWG24 HDMI standard cable
Environmental
Operating Temperature range......................................................................-15°C to 55°C
Operating Humidity range...........................................................................5% to 90% RH(No Condensation)
Mechanical
Dimension(LxWxH)....................................................................................151x72x25mm
Weight.....................................................................................................235g
Power Requirement
Max working current....................................................................................1A
External Power Supply.................................................................Input:AC(50/60Hz) 100V-240V; Output: DC5V/1A
HY-4301-V0-B 3 x 1 HDMI Audio Extractor Package Content
Power Adapter x1
Remote Control x1
MHL Cable x1
User Manual x1
