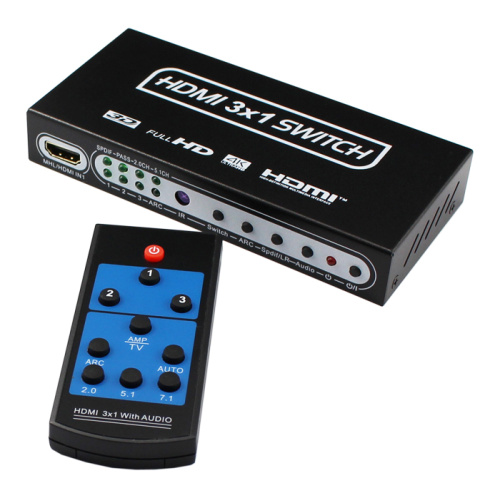

HDMI Switcher with Audio Extractor 3 x 1

HDMI Switcher with Audio Extractor 3 x 1 Introduction

3 Port HDMI/MHL Switch & Audio Extractor SPDIF/RCA Stereo Outputs with Ultra HD 4K ARC EDID Setting allows you to connect three HDMI input to one HDMI output, with MHL support on one input port. It also allows you to connect to a 7.1 channel digital surround on HDMI output or 5.1 channel digital surround sound on the Tosl ink digtital output or 2.0 channel PCM audio on the RCA stereo output.

Features

Input: HDMI x 3(HDMI/MHL 1 port supports MHL).
Output: HDMI x 1, Toslink/SPDIF x 1, Stereo RCA x 1.
Supports Ultra HD 4Kx2K @ 30Hz.
Supports Full HD.
Supports 3D.
Supports HDCP pass-through.
Supports 12-bit Deep Color per channel, maximum 36-bit al l channels.
Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximu
total TMDS throughput is 9.95Gbps.
Supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Dolby Digital, DTS-H
and Dolby TrueHD.
Supports HDMI pass-through.
Supports up to 7.1CH digital surround on HDMI output.
Supports up to 5.1CH digital surround on Tosl ink output.
Supports up to 2.0 channel analog stereo on Stereo output.
Supports Standard Audio,DSD Audio, and HD(HBR) Audio.
Supports ARC(Audio Return Channel).

Specifications

Video and Audio
HDMI resolution................................................Ultra HD 4K2K max; 3D 1080p/24 max
Support video color format.................................36-bit Deep Color all channels maximum
Audio output...............................HDMI pass-through;Up to 7.1CH;Toslink output up to 5.1 ch;RCA  L/R   out put stereo audio
Max bandwidth per channe...............................300MHz
Max baud rate per display.................................9.95Gbps
Input/Output TMDS signal................................0.5~1.5V p-p(TTL)
Input/Output DDC signal..................................5V p-p(TTL)
Input cable distance........................................≤50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz
Output cable distance....................................≤50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz
Environmental
Operating Temperature range................................5°F to 131°F / -15°C to 55°C
Operating Humidity range.....................................5% to 90% RH(No Condensation)
Mechanical
Dimension(LxWxH)..............................................139 x 70 x 22.5(mm)
Weight.................................................................215 g
Power Requirement
Max working current............................................1A
External Power Supply..........................................Input:AC(50/60Hz) 100V-240V;Output: DC5V/1A

Certificates CE FCC UL and RoHs

Package Content

Power Adapter x 1
Remote Control x 1
MHL Cable x 1
User Manual x 1
