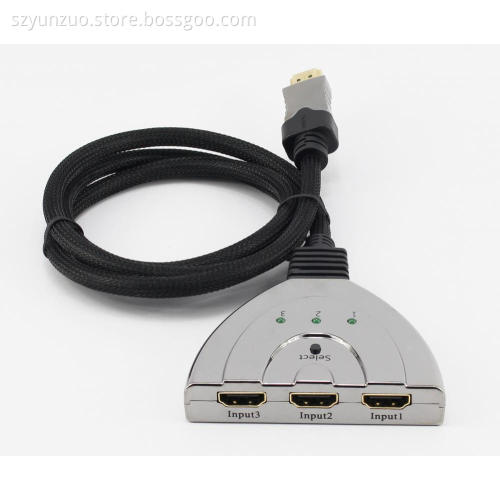

HDMI Switch pigtail

Features:

1. Supports 3 HDMI input ports.
2. Supports 1 HDMI output port.
3. Compl iant with HDMI 1.4b specification.
4. Supports deep color 30bit, 36bit.
5. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
6. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/
   Dolby-AC3/DSD.
7. Supports signal retiming.
8. Supports Equal izer TMDS Output:25MHz – 225MHz TMDS clock.
9. Supports up to 225 MHz TMDS clock rate(1080P@60Hz) for HDMI input.
10. Supports  EDID RAM.
11. Supports 1080P input up to 10metres AWG26 HDMI standard cable length,
    output up to 15metres AWG26 cable length
12. Inputs can be switched with the IR remote control,also can be
      control led by button.
13. No loss of qual ity.
14. Instal ls in minutes.

Specifications:

Support video color format--........................24bit/deep color 30bit,36bit
Vertical Frequency Range...................................................60Hz @ 1080p
Support audio format-............................ DTS-HD/Dolby-trueHD/LPCM7.1
 /DTS/Dolby-AC3/DSD
Max bandwidth--......................................................................225MHz
Max band rate--.....................................................................6.75Gbps
Input/Output TMDS signal --..............................0.5~1.5Volts p-p(TTL)
HDMI resolution.....24/50/60fps/1080p/1080i/720p/576p/576i/480p/480
