2 to 1 HDMI Splitter with audio out
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen Chiwan, Shenzhen Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000pcs/day |
| Supply Ability: | 10000pcs/day |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE FCC RoHs |
| HS Code: | 8543709990 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen Chiwan,Shenzhen Yantian |

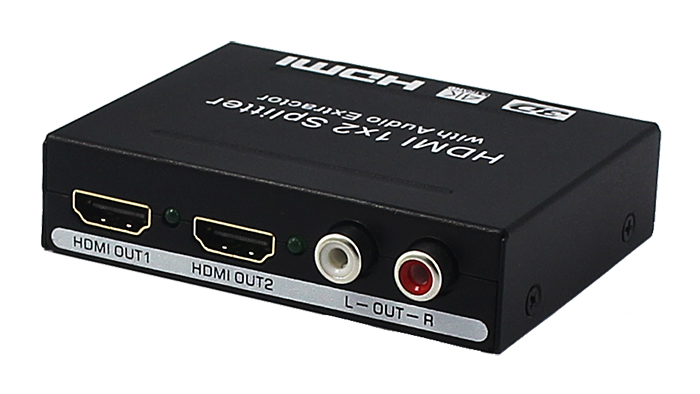

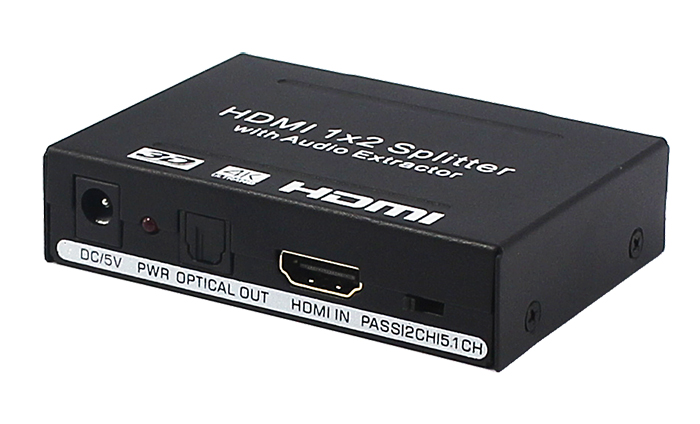

HY-SP40102-A-E 2 to 1 HDMI Splitter with audio out
HY-SP40102-A-E 2 to 1 HDMI Splitter with audio out Introduction
HDMI Video Audio Splitter with Audio out are designed to made your A/V device use more convenient,comfortable, productive and cost-efficient.
The 2 Port HDMI Audio Converter can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI convert it to digital optical or 2 channel analog audio output. This product supports Dolby digital AC-3,DTS,LPCM and other digital audio format output. It is one perfect audio converter for your DVD,Blue-Ray DVD,PS3,X360BOX,HD Player.PC etc.
HY-SP40102-A-E 2 to 1 HDMI Splitter with audio out Features

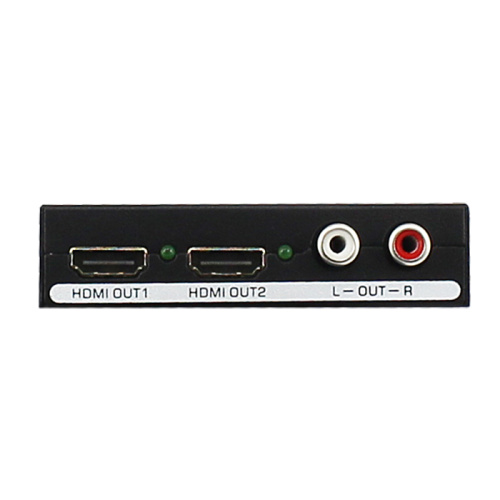

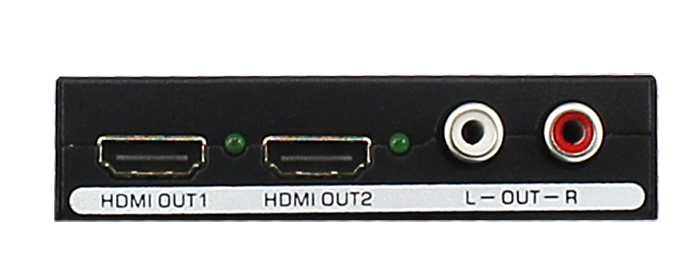

1 X HDMI input and 2 X HDMI output, can sync separation HDMI audio signal.
Supports 1 X SPDIF optical digital audio output,2 channel RCA analog audio output.
Supports HDMI input up to 4K/30Hz, supports 3D(24/30fps).
Supports SPDIF digital audio format:Dolby digital (AC3),DTS,LPCM, and support 5.1CH.

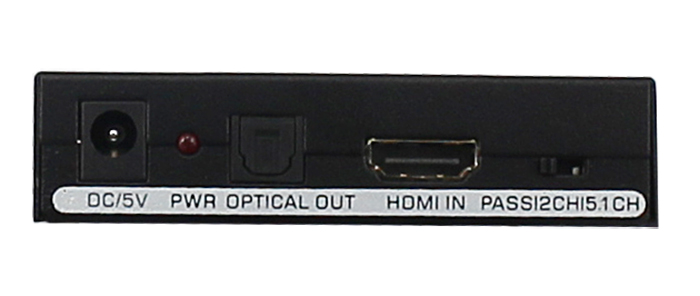

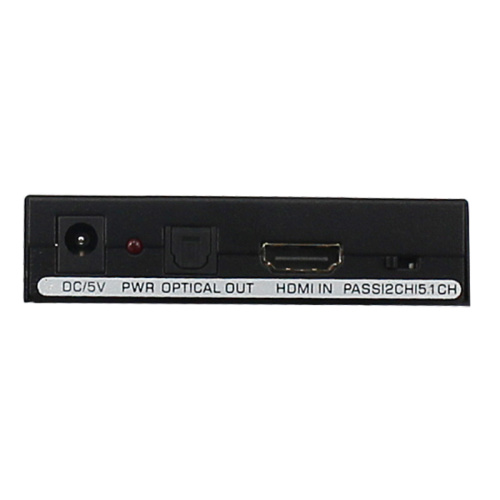

Supports 3 modes of EDID management for audio formats, can switch among built-in
EDID(2CH/5.1CH) and external EDID(TV).
LED indication: when source or sink is working
Uses 24bit/192KHz DAC.
No loss of quality.
Installs in minutes.
DC5V/1A power adapter.
relative LED is light
HY-SP40102-A-E 2 to 1 HDMI Splitter with audio out Specifications:
HDMI resolution....................................up to 4K/30Hz(30fps) 1080P/50/60fps (3D 24/30fps)
Support video color format.......................................................24bit/deep color 30bit,36bit
HDMI Audio Format..........DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format..........................................Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth..........................................................................................300MHz
HDMI Max band rate..........................................................................................9.95Gbps
Input/Output TMDS signla..............................................................0.5 ~1.5Volfs P-P(TTL)
Input/Output DDC signla..........................................................................5Volfs P-P(TTL)
DAC sample frequency range.........................................................................32~192KHz
DAC Bit rate range...............................................................................................16~24it
Analog output level(1KHz@0dB)..........................................................................1V RMS
SNR @ 0dB(CCIR/ARM)....................................................................................... 85dB
Distortion............................................................................................................≤ 0.1%
Frequency response....................................................................................20Hz~20KHz
HDMI Input cable distance...........................................≤15m AWG26 HDMI standard cable
HDMI Output cable distance........................................≤20m AWG26 HDMI standard cable
Max working current.............................................................................................800mA
Power adapter format Input............................................AC100V~240V 50/60Hz, DC5V/1A
Operating Temperature range.........................................................................-10 to +55℃
Storage Temperature range............................................................................-20 to +60℃
Operating Humidity range.................................................10 to 90% RH(No Condensation)
Storage Humidity range......................................................5to 95% RH(No Condensation)
Case Dimension(LxWxH)........................................................................84x69x20.5(mm)
Weight....................................................................................................................130g
Certificates CE FCC RoHs and Power adapter UL certified

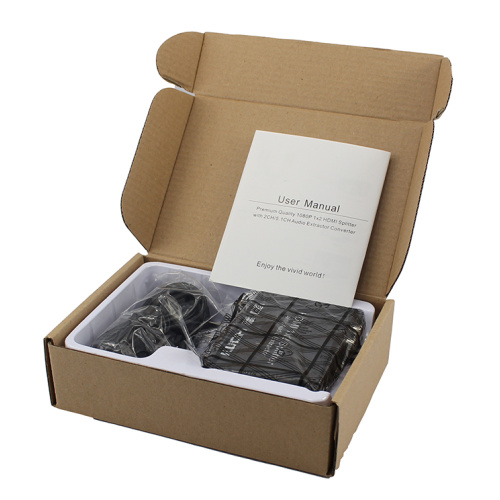

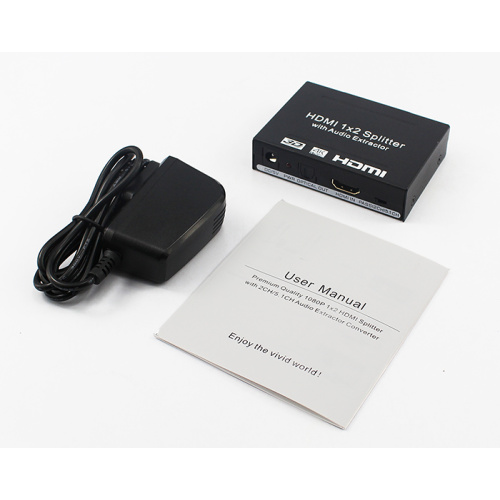

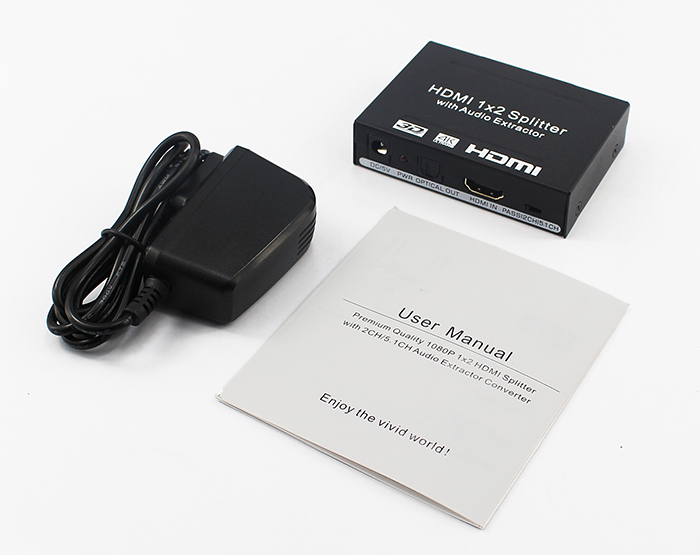

HY-SP40102-A-E 2 to 1 HDMI Splitter with audio out Package content
1 x HDMI 1x2 Splitter with Audio Extractor
1 x AC power adapter
1 x User manual
