HDMI 1.4 HDCP 1.3 HDMI Splitter

                                              HY-1024-V0-F  HDMI 1.4, HDCP 1.3 HDMI Splitter

HY-1024-V0-F  HDMI 1.4, HDCP 1.3 HDMI Splitter Introduction:

This HDMI splitter is a product can distribute 1 way HDMI signal to 2 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, Apple TV and more other devices. It can optimize your home theater system to the best effect.

HY-1024-V0-F  HDMI 1.4, HDCP 1.3 HDMI Splitter Features:

• Fully HDMI v1.4 Specification compliant. It is applicable to source device and high definition display terminal device such as DVI and HDTV which have HDMI interfaces or digital interfaces
• Compliant with HDCP 1.4 protocol, and HDMI 1.4b specification
• Extends the transmission distance and improve transmission signal
• Supports 3D video (To get 3D, all units connected to the splitter outputs must support 3D)
• Supports up to 4K x 2K for HDMI input and output, HD resolutions up to 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p, Supports 12-bit Deep Full HD, Full 3D and 4K x 2K video
• Compatible with DVI through a HDMI to DVI adapter
• Supports hot plug-and-play

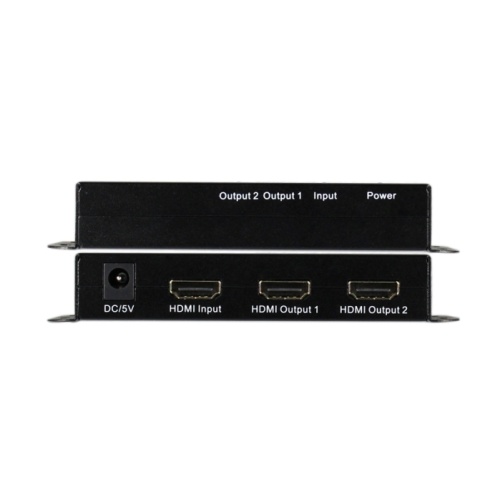

• LED indicates signal and power mode
• Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
• Support AWG26 HDMI cable length up to 66ft
• Support hot plug-and-play
• Uses 5V power supply
• Size (L x W x H): 110 x 62 x 22mm

HY-1024-V0-F  HDMI 1.4, HDCP 1.3 HDMI Splitter Specifications:

HDMI version.......................................................................HDMI 1.4, HDCP 1.3

HDMI resolution .......................................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

Support video color format ................................................24bit/deep color 30bit, 36bit, 48bit

Vertical Frequency Range...................................................1080p@60Hz; 4K x 2K@30Hz

Support audio format..................................................DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD

Max band width..............................................................................297MHz

Max band rate..............................................................................8.91Gbps

Input/Output TMDS signal ...............................................0.5~1.5Volts p-p(TTL)

Input/Output DDC signal....................................................5Volts p-p (TTL)

1080P Input cable distance...........................................≤15mAWG26 HDMI standard cable

1080P Output cable distance.....................................≤20mAWG26 HDMI standard cable

4KX2K Input cable distance..................................≤5mAWG24 HDMI standard cable

4KX2K Output cable distance..............................≤10mAWG24 HDMI standard cable

Max working current........................................................................500mA

Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range..............................................(-15 to +55℃)

Operating Humidity range .........................5 to 90%RH (No Condensation).

Certificates: CE FCC RoHS

HY-1024-V0-F  HDMI 1.4, HDCP 1.3 HDMI Splitter Package content:

HDMI 1x2 Splitter x1

Power Adapter x1

User Manual x1
