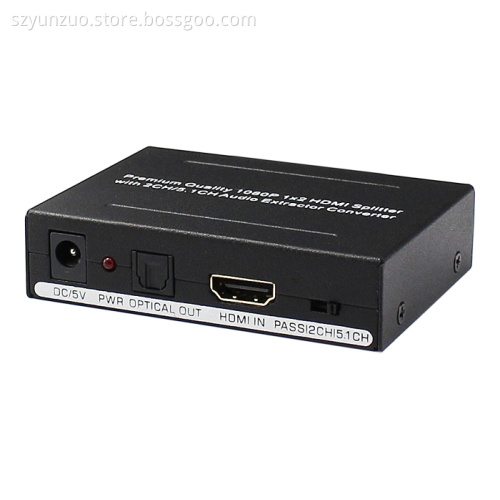

HDMI SPLITTER 1X2
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 200 Bag/Bags
- Min. Order:
- 200 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE RoHS FLL UL |
| Transportation: | Ocean,Land,Air |
| Port: | Ocean,Land,Air |
Features:
1 X HDMI input and 2 X HDMI output, can sync separation HDMI audio signal.
Supports 1 X SPDIF optical digital audio output,2 channel RCA analog audio output.
Supports HDMI input up to 1080P/60Hz, supports 3D(24/30fs).
Supports SPDIF digital audio format:Dolby digital (AC3),DTS,LPCM, and support 5.1CH.
Supports 3 modes of EDID management for audio formats, can switch among bui lt-in
EDID(2CH/5.1CH) and external EDID(TV).
LED indication: when source or sink is working, .
Uses 24bit/192KHz DAC.
No loss of qual ity.
Instal ls in minutes.
DC5V/1A power adapter.
relative LED is l ight
Specifications:
HDMI resolution..............................................................up to 1080P/50/60fs (3D 24/30fs)
Support video color format.......................................................24bit/deep color 30bit,36bit
HDMI Audio Format..........DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format..........................................Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth..........................................................................................225MHz
HDMI Max band rate..........................................................................................6.75Gbps
Input/Output TMDS signla..............................................................0.5 ~1.5Volfs P-P(TTL)
Input/Output DDC signla..........................................................................5Volfs P-P(TTL)
DAC sample frequency range.........................................................................32~192KHz
DAC Bit rate range...............................................................................................16~24it
Analog output level(1KHz@0dB)..........................................................................1V RMS
SNR @ 0dB(CCIR/ARM)....................................................................................... 85dB
Distortion............................................................................................................≤ 0.1%
Frequency response....................................................................................20Hz~20KHz
HDMI Input cable distance...........................................≤15m AWG26 HDMI standard cable
HDMI Output cable distance........................................≤20m AWG26 HDMI standard cable
Max working current.............................................................................................600mA
Power adapter format Input........................................AC100V~240V 50Hz/60Hz,DC5V/1A
Operating Temperature range.........................................................................-10 to +55℃
Storage Temperature range............................................................................-20 to +60℃
Operating Humidity range.................................................10 to 90% RH(No Condensation)
Storage Humidity range......................................................5to 95% RH(No Condensation)
Case Dimension(LxWxH)........................................................................84x69x20.5(mm)
Weight....................................................................................................................130g
≤
Package Contents:
1. Main unit x1
2. AC power adapter x1
3. User manual x1
