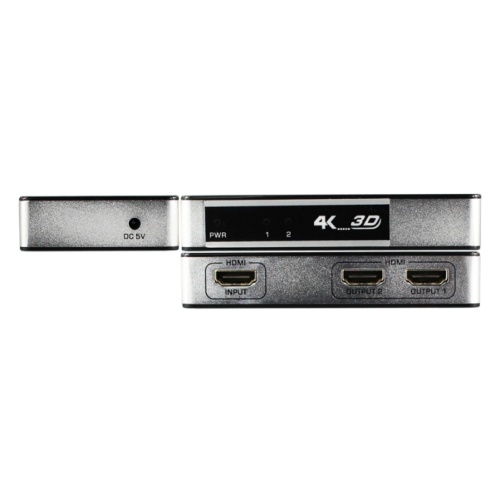

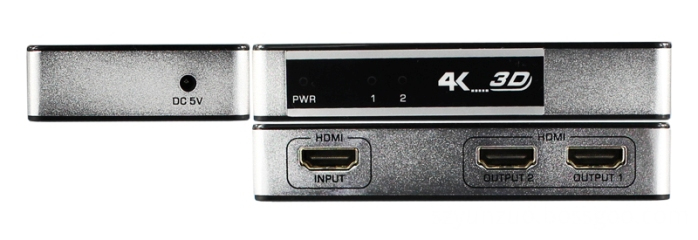

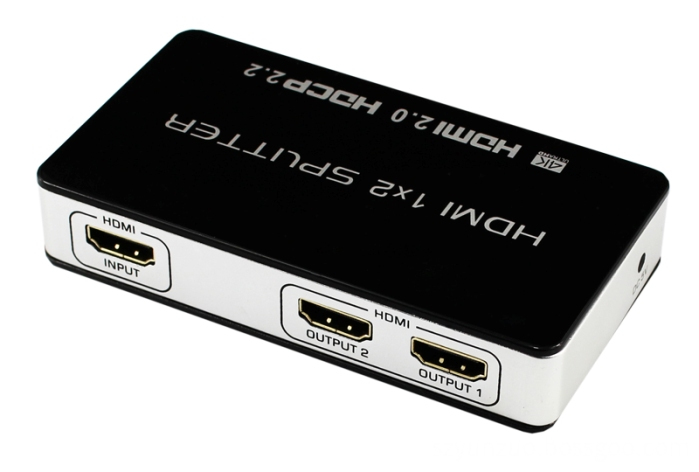

4k@60hz HDMI Splitter 1 x 2

HY-SP50102-A-H 4K @ 60hz HDMI Splitter 1 x 2

HY-SP50102-A-H 4K @ 60hz HDMI Splitter 1 x 2 distributes 1 way HDMI signal to 2 display terminal devices without any quality loss.

Fully HDMI 2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.

HY-SP50102-A-H 4k@60hz HDMI Splitter 1 x 2 supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, Apple TV and more other devices. It can optimize your home theater system to the best effect.

HY-SP50102-A-H 4K @ 60hz HDMI Splitter 1 x 2 Features:

• On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0, HDMI1.4 and HDMI 2.0
• specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4/2.2 specification.
• Wide Frequency Range: 25 MHz-600 MHz.
• Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
• Supports jitter Clean capability for more cascadable stages.
• Supports 12-bit Deep Full HD, Full 3D and 4K 2K 60Hz video.
• Supports standard Audio,DSD Audio and HD (HBR) Audio.
• Supports 1 DVI/HDMI input port and 2 DVI / HDMI output ports.
• Supports conversion of HDMI signalling to DVI /HDMI signalling.
• Supports HDCP 1.4 to HDCP2.2 conversion.
• Supports HDCP 2.2 to HDCP1.4 conversion.
• Supports on-chip 512 byte E-DDC EDID RAM for input port.
• Supports hot plug-play.
• Cascadable to make more than 4 output ports.
• Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.
• LED indicate signal and power mode.
• Power supply(please refer to technical parameter).

HY-SP50102-A-H 4k@60hz HDMI Splitter 1 x 2 Specifications:

HDMI version.....................................................................HDMI 2.0, HDCP 2.2
HDMI resolution .........................................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p
Supports video color format ..........................................24bit/deep color 30bit, 36bit, 48bit
Supports audio format................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth........................................................................600MHz
Max baud rate........................................................................18.0Gbps
Input/Output TMDS signal .....................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ........................................................5Volts p-p (TTL)
Input cable distance ......................................................≤15m AWG26 HDMI standard cable
Output cable distance ....................................................≤20m AWG26 HDMI standard cable
Max working current ...............................................................800mA
Power adapter format Input ............................................AC100V-240V (50/60Hz); Output: DC 5V/1A
Operating Temperature range .............................................. (-15 to +55℃)
Operating Humidity range ................................................5 to 90%RH (No Condensation)
Dimension (L x W x H) .............................................................110x60x20(mm)
Weight ......................................................................................105g

Certificates: CE FCC RoHS

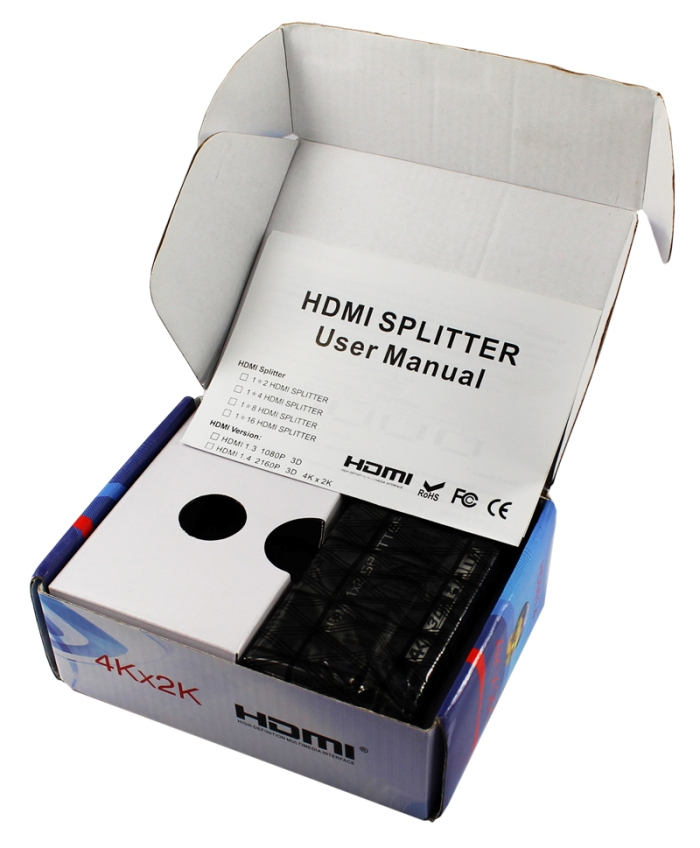

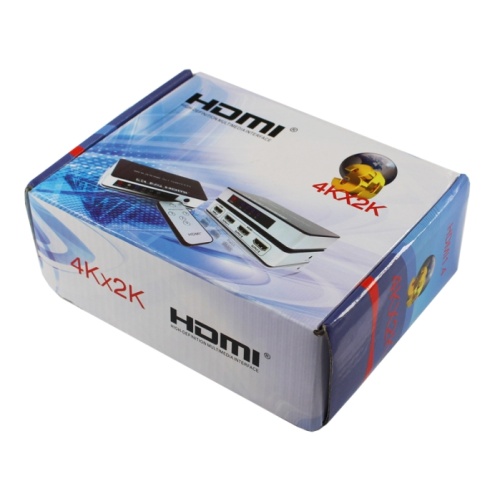

HY-SP50102-A-H 4k@60hz HDMI Splitter 1 x 2 Package content:

HDMI 1x2 Splitter x1

Power Adapter x1

User Manual x1
