Product Description
Product Description

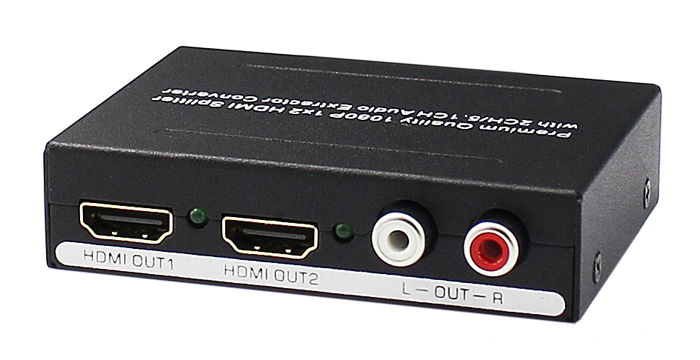

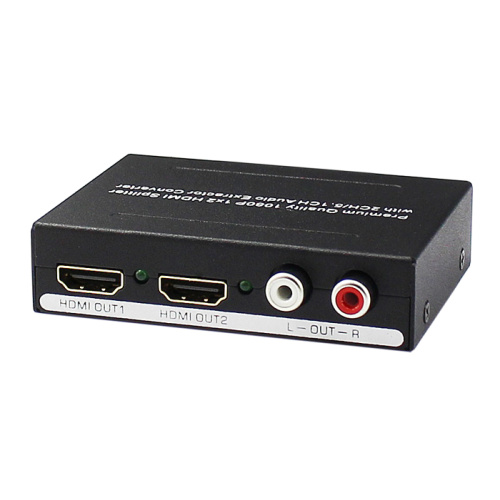

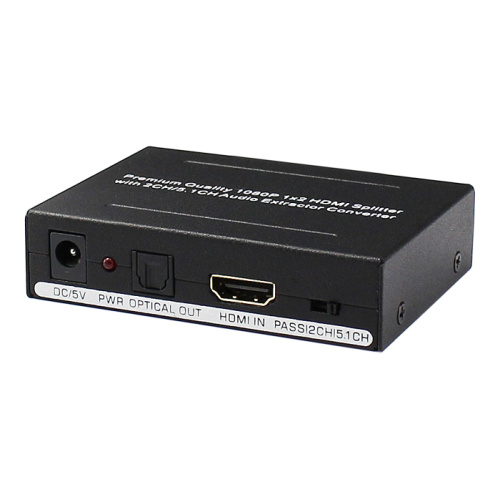

                                          HY-SP30102-N-A 1080P HDMI splitter 1 x 2


HY-SP30102-N-A 1080P HDMI splitter 1 x 2 Introduction


HY-SP30102-N-A 1080P HDMI splitter 1 x 2 Converter allows two HD Display/TV connected to one HDMI source and also can extract audio signals from your HDMI source.

You can take your original HDMI convert it to digital optical or 2 channel analog audio output.

It is one perfect audio converter for your DVD, Blue-Ray DVD, PS3, X360 BOX, HD Player, PC etc.


HY-SP30102-N-A 1080P HDMI splitter 1 x 2 Features:

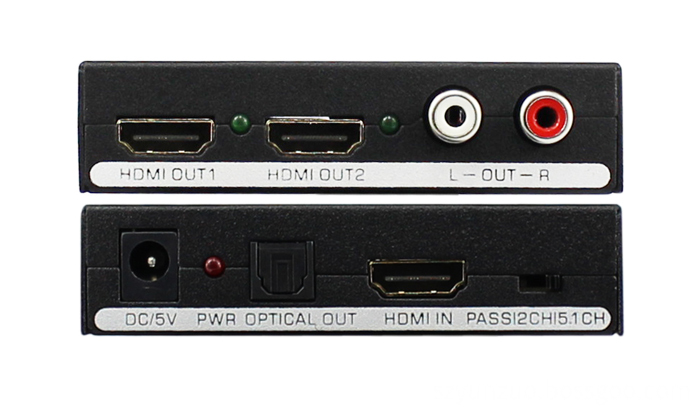

  • HDMI Splitter 1 input 2 output with optical audio and RCA L/R audio output, can sync separation HDMI audio signal.
  • Supports 1 X SPDIF optical digital audio output, 2 channel RCA analog audio output.
  • Supports HDMI input up to 1080P/60Hz, supports 3D (24/30fs).
  • Supports SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH.
  • Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH / 5.1CH) and external EDID (TV).
  • LED indication: when source or sink is working.
  • Uses 24bit / 192KHz DAC.
  • No loss of quality.
  • Installs in minutes.
  • DC 5V/1A power adapter.


HY-SP30102-N-A 1080P HDMI splitter 1 x 2 Specifications:

HDMI resolution.......................................up to 1080P/50/60fs (3D 24/30fs)
Support video color format................................24bit/deep color 30bit,36bit
HDMI Audio Format ....... DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format...................Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth.......................................................................225MHz
HDMI Max band rate......................................................................6.75Gbps
Input/Output TMDS signla.........................................0.5 ~1.5Volfs P-P(TTL)
Input/Output DDC signla.......................................................5Volfs P-P(TTL)
DAC sample frequency range......................................................32~192KHz
DAC Bit rate range..............................................................................16~24it
Analog output level(1KHz@0dB)........................................................1V RMS
SNR @ 0dB(CCIR/ARM)........................................................................ 85dB
Distortion..............................................................................................≤ 0.1%
Frequency response...................................................................20Hz~20KHz
HDMI Input cable distance.......................≤15m AWG26 HDMI standard cable
HDMI Output cable distance.....................≤20m AWG26 HDMI standard cable
Max working current...............................................................................600mA
Power adapter format Input......................AC100V~240V 50Hz/60Hz,DC5V/1A
Operating Temperature range........................................................-10 to +55℃
Storage Temperature range...........................................................-20 to +60℃
Operating Humidity range................................10 to 90% RH(No Condensation)
Storage Humidity range.......................................5 to 95% RH(No Condensation)
Case Dimension(LxWxH)...........................................................84x69x20.5(mm)
Weight...........................................................................................................130g


Certification: CE FCC RoHS

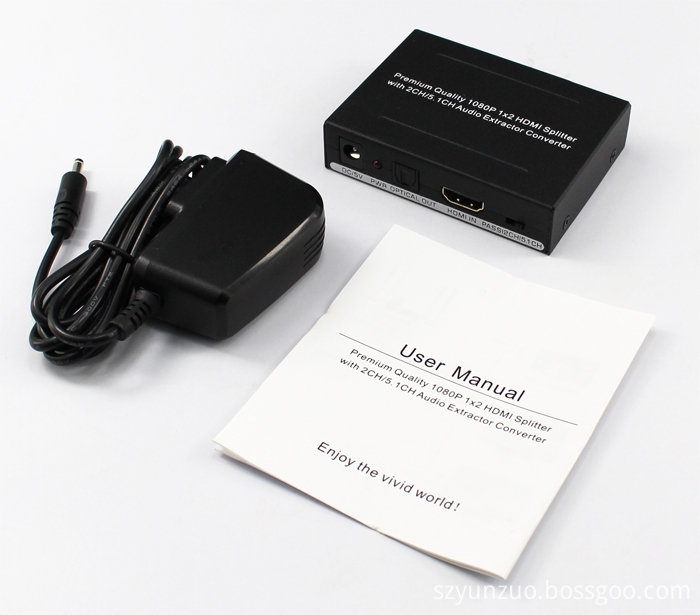

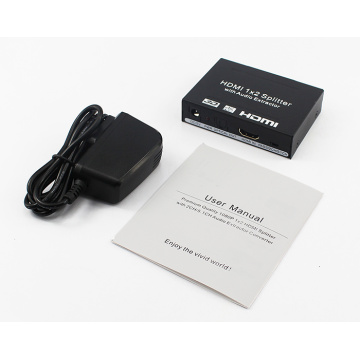

HY-SP30102-N-A 1080P HDMI splitter 1 x 2 Package Contents:

1. HDMI splitter with audio out x1
2. AC power adapter x1
3. User manual x1
