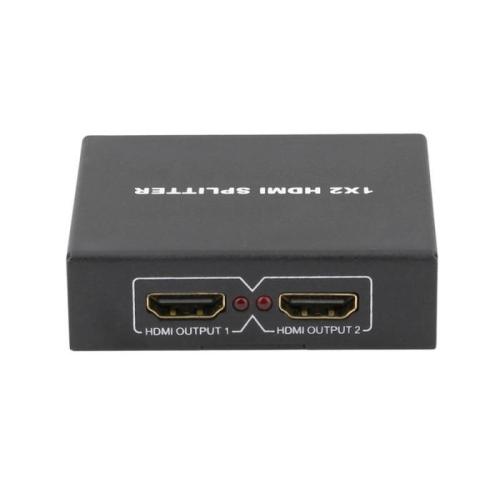

1 Input 2 Output HDMI Splitter
- Payment Type:
- L/C, T/T, Paypal
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 300 Set/Sets
- Min. Order:
- 300 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE FCC RoHS |
| Transportation: | Ocean,Land,Air |
1 Input 2 Output HDMI Splitter Features:
Contact:tony at szyunzuo.com
HDMI splitter 1 input to 2 output. It will take any HDMI signal (rev 1.3) and duplicate the signal, sending the same high definition signal to 2 displays simultaneously.
HDCP complaint.
Supports 12-bit Deep Full HD, Full 3D and 1080p video.
Supports high resolutions up to 1080p, and also supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
Supports Standard Audio, DSD Audio and HD (HBR) Audio.Extend the transmission distance and improve transmission signal.
Compatible with DVI through a HDMI to DVI adapter.
Supports hot plug-and-play.
LED indicate signal and power mode.
Specifications:
HDMI version.......................................................................................HDMI 1.3
HDMI resolution ...............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Support video color format ..........................24bit/deep color 30bit, 36bit, 48bit
Max band width.....................................................................................297MHz
Max band rate.....................................................................................8.91Gbps
Input/Output TMDS signal ...............................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal............................................................5Volts p-p (TTL)
Max working current.................................................................................500mA
Power adapter format Input:.....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range........................................................(-15 to +55℃)
Operating Humidity range ..................................5 to 90%RH (No Condensation)
Dimension (L x W x H)....................................................................70x60x20mm
Vertical Frequency Range...............................................................1080p@60Hz
Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
1080P Input cable distance...........................≤15m AWG26 HDMI standard cable
1080P Output cable distance........................≤20m AWG26 HDMI standard cable
Weight...........................................................................................................130g
Certificates: CE FCC RoHS
Package content:
HDMI 1x2 Splitter x1
Power Adapter x1
User Manual x1
