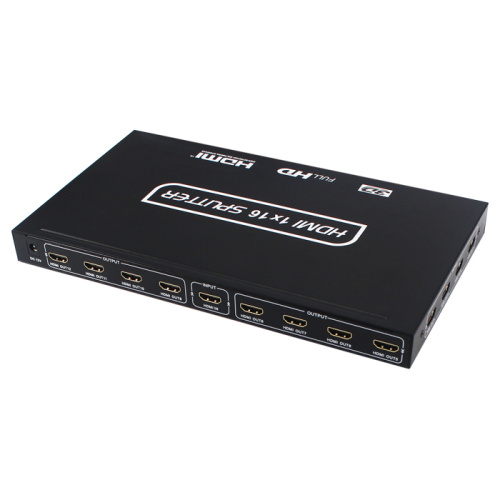

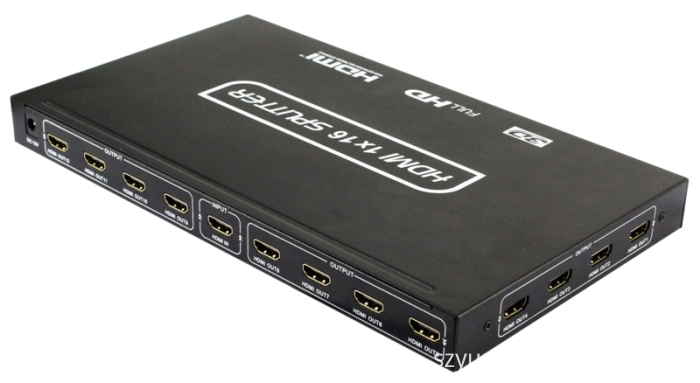

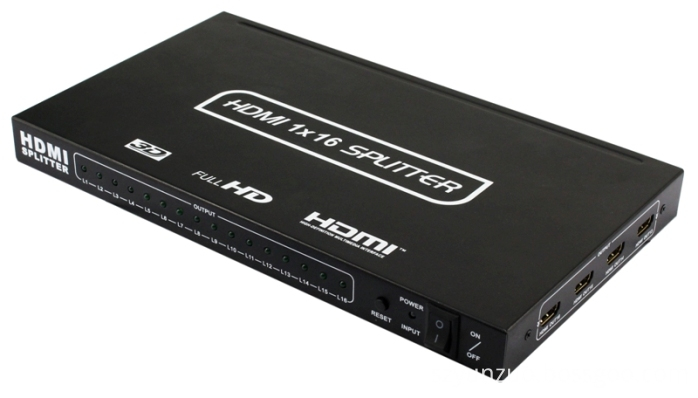

HDMI Splitter Amplifier PS4

HDMI Splitter Amplifier Introduction:
This HDMI splitter is a product can distribute 1 way HDMI signal to 16 display terminal devices without any quality loss. It supports most of the home theater such as HDTV, blu-ray DVD, Xbox, PS3, PS4, Fire TV stick, Fire TV, ROKU, Apple TV and more other devices. It can optimize your home theater system to the best effect.

Features:

• Split one HDMI input signal to sixteen HDMI output signals identical to the input signal.
• Fully HDMI 1.3 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.
• Supports high resolutions up to 1080p, and also supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
• Supports 12-bit Deep Full HD, Full 3D and 1080p video.
• Supports Standard Audio, DSD Audio and HD (HBR) Audio.
• Extend the transmission distance and improve transmission signal.
• Compatible with DVI through a HDMI to DVI adapter.
• Supports hot plug-and-play.
• LED indicate signal and power mode.
• HDCP complaint

Specifications:

HDMI version...............................................................................HDMI 1.3

HDMI resolution ............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

Support video color format ...................24bit/deep color 30bit, 36bit, 48bit

Max band width..............................................................................297MHz

Max band rate..............................................................................8.91Gbps

Input/Output TMDS signal ..........................................0.5~1.5Volts p-p(TTL)

Input/Output DDC signal......................................................5Volts p-p (TTL)

Max working current.........................................................................500mA

Power adapter format Input:...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range..................................................(-15 to +55℃)

Operating Humidity range............................5 to 90%RH (No Condensation)

Dimension (L x W x H).............................................................70x60x20mm

Vertical Frequency Range.......................................................1080p@60Hz

Support audio format..................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

1080P Input cable distance....................≤15m AWG26 HDMI standard cable

1080P Output cable distance...................≤20m AWG26 HDMI standard cable

Certificates: CE FCC RoHS

Package content:

HDMI 1x16 Splitter x1

Power Adapter x1

User Manual x1
