Heavy Door Hinge 360 Degree Door Hinge
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K pcs |
| Supply Ability: | 10000K/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO 9001:2008 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |

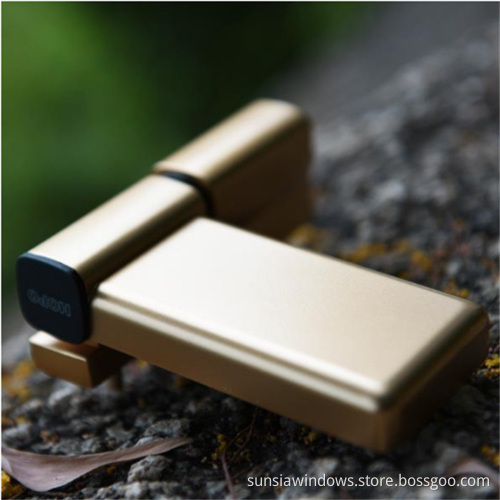

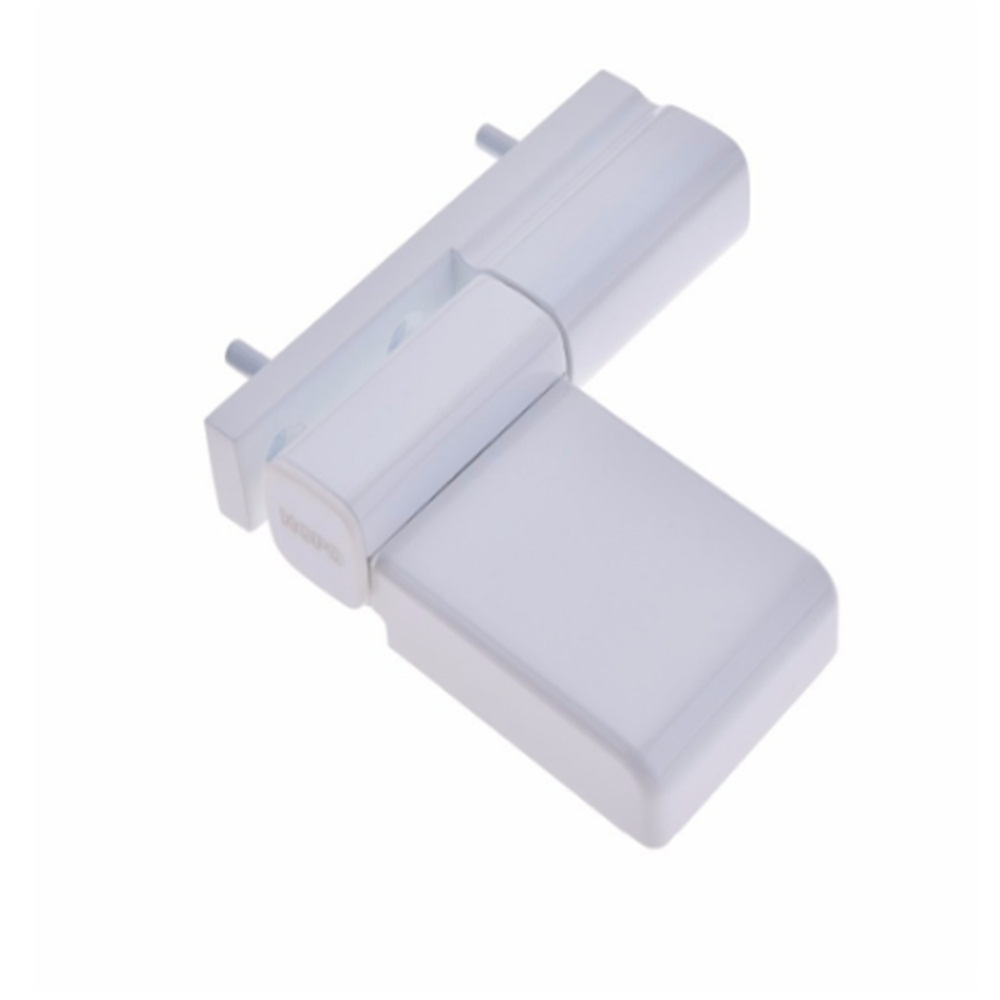

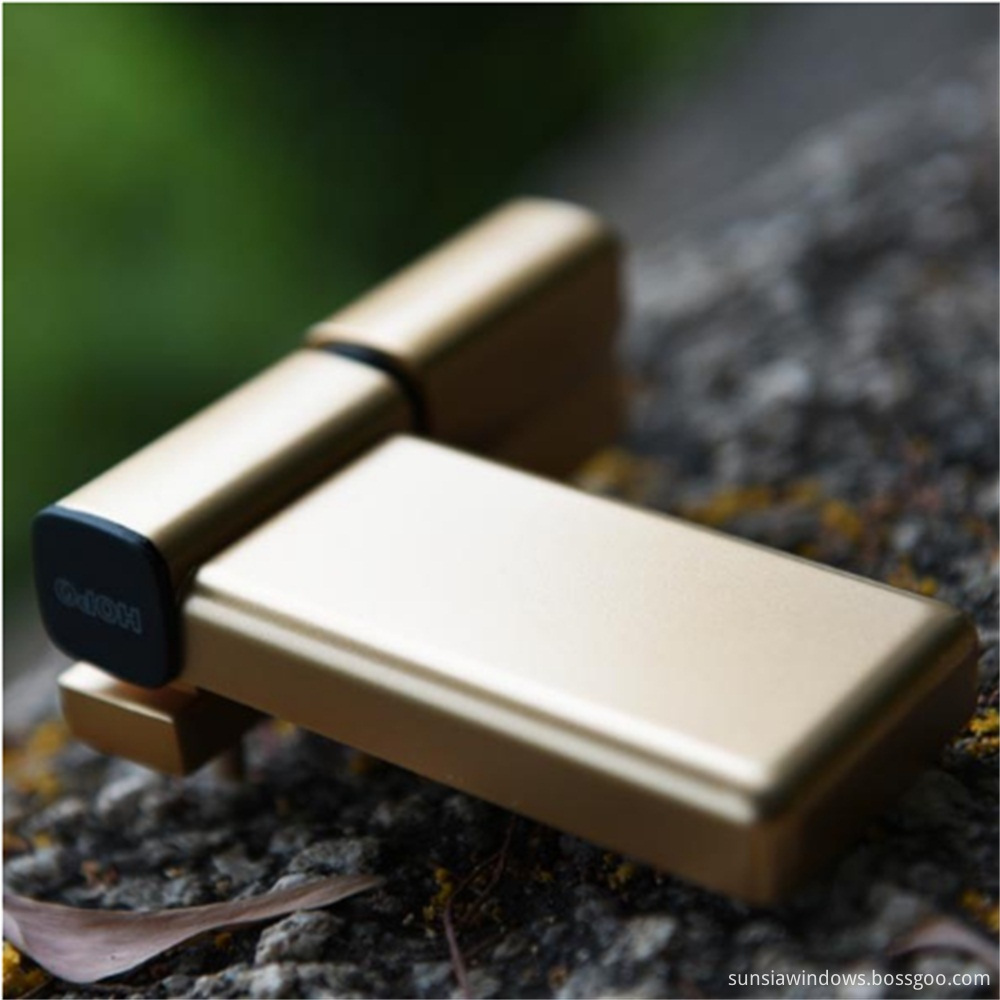

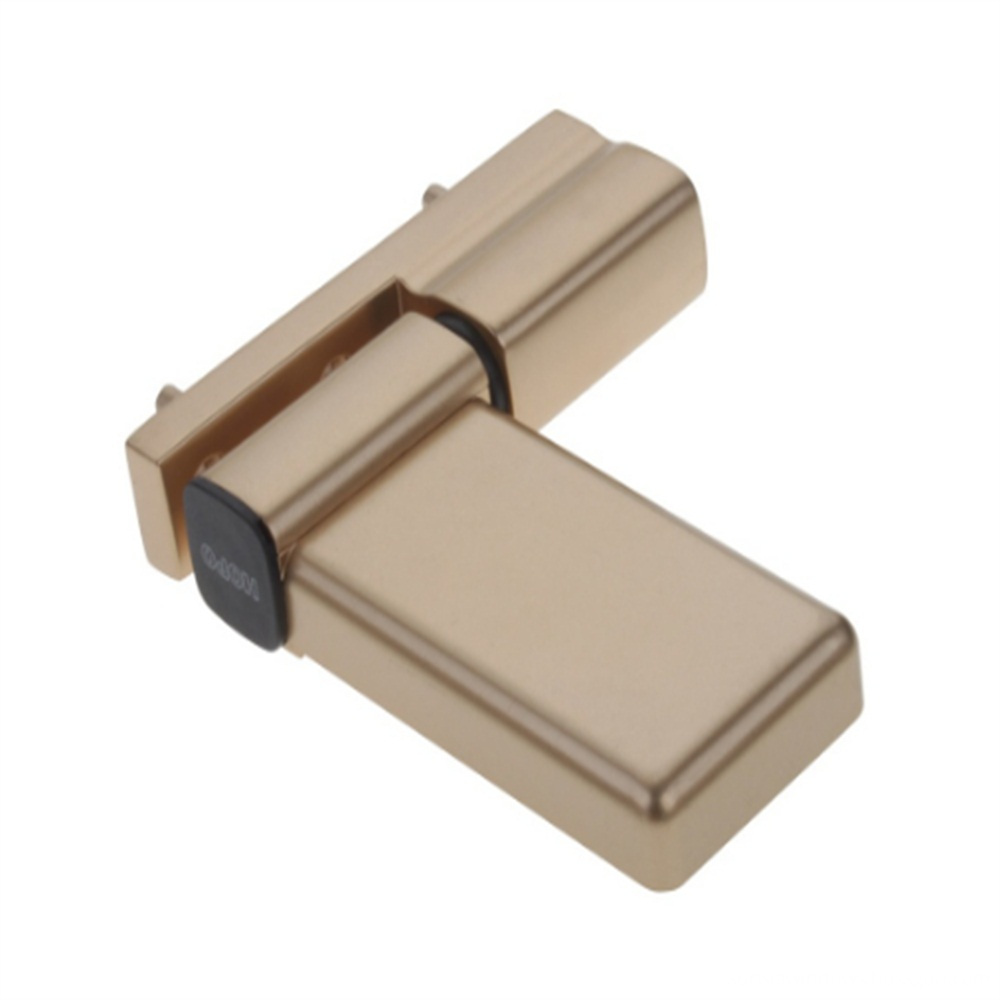

This item showed here is heavy door hinge, hinge door, 360 degree door hinge from Hopo.
Name of goods: Door Hinge
Article No.:PTH51.00.07
Description of article number:
51-style of the hinge
00-for PVC door profile, 01- for aluminum door profile
07- white, 012- silver, 069- black.
Material: Zinc alloy, spraying colorful paint surface
Application instructions: for PVC side hung door inside or outside open. 3D adjustment, weight up to 120 kg.

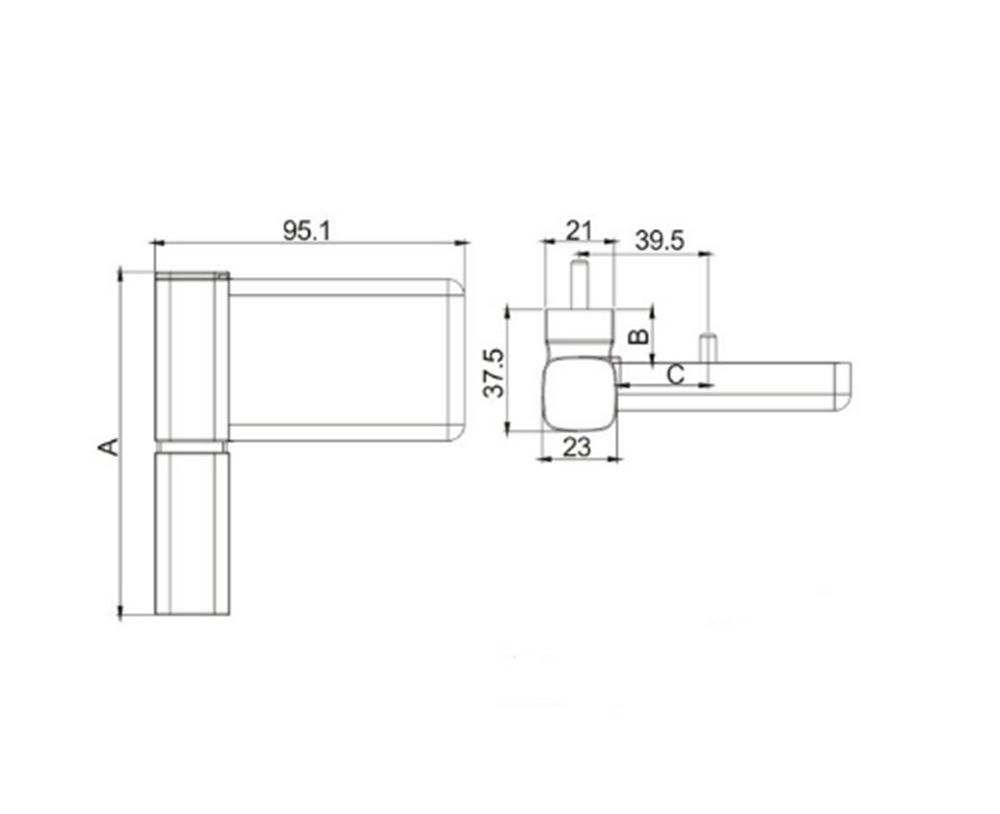

| Article No. | Adjustable distance of A | Adjustable distance of B | Adjustable distance of C |
| PTH51.00.09 | min105.3-2;max105.3+4 | min16.5-2;max16.5+2 | min27-5;max27+5 |
| PTH51.01.09 | min104.3-1;max104.3+5 | min7-2;max7+2 |
min20-4;max20+4 |
As a manufacturer of high-quality, world-class aluminium doors and windows, we cooperate with the best hardware suppliers, and we can offer a huge variety of windows and door hinges to complement your home decor.
One of our supplier is Hopo, Hopo's hinge design is conducted in tune with their significant standard which shows that different profiles come with different load bearing properties.
Based on this principle, clamping method is suitable for aluminum alloy profile, rather than screw connecting approach which damages surface. As for alu-wood profile, hinge is fixed on aluminum part.
