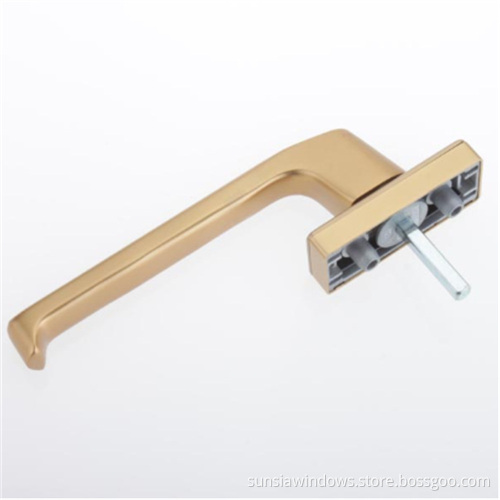

Heavy Duty Window Door Handle

Name of goods:  Handle with Square Spindle

Article No. :  PH900.00.04

Description of article number:

PH200-Style of  handle with Square Spindle

00-without spindle, length can be chose: 25mm, 30mm, 40mm, 45mm, 50mm etc.  It can be customized.

04-anodized bronze, 069-black, 07-white, 011-anodized silver.

Material: aluminum alloy, surface finish: painted or oxide

Application: all kinds of profile doors, double sided door handle, exterior handle

Product Description: Window Handle, heavy duty, for sliding door, aluminium profiles, wood profiles, heavy tilt turn windows

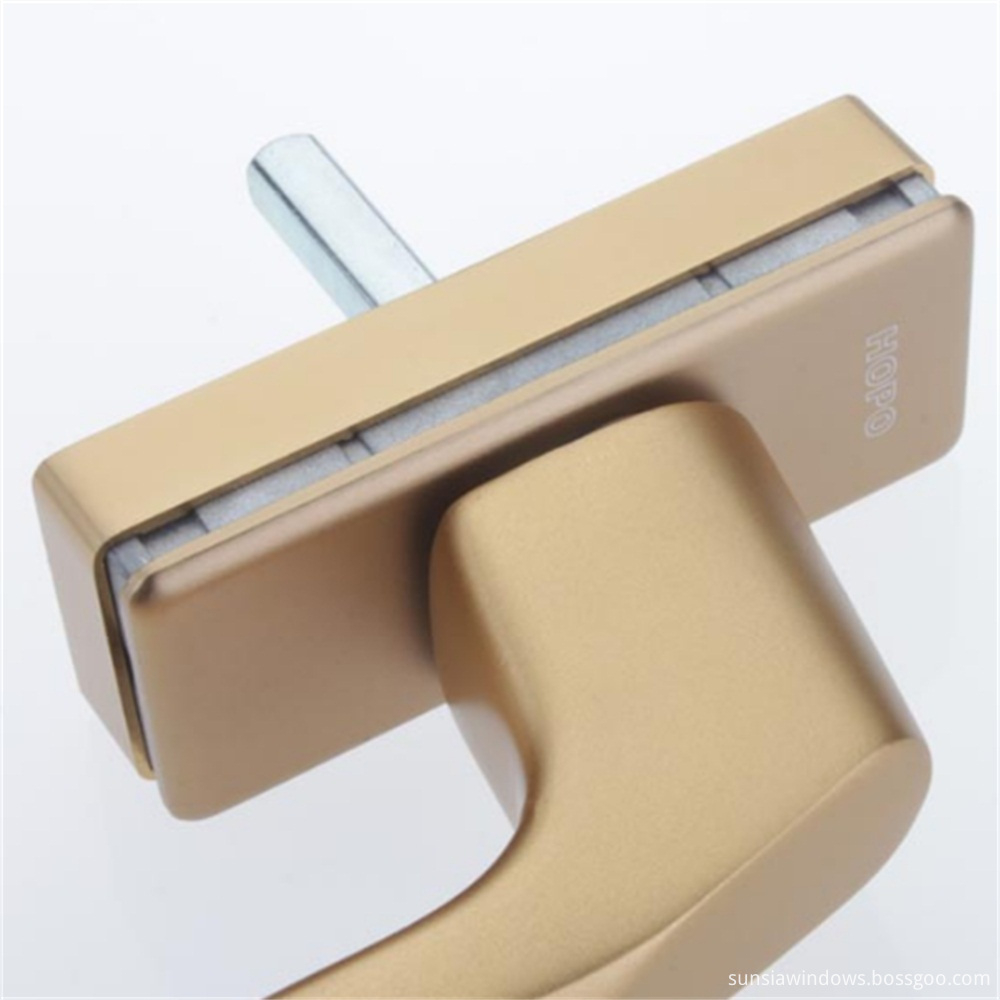

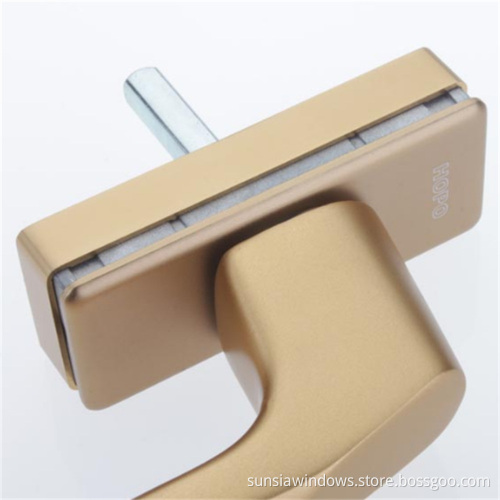

Normal window handles have rosette made of plastic.  The surface finishing of the rosette is completely different with the shank (zinc alloy or aluminium).  The strength of plastic rosset is very limited.  HOPO handle PH900 means that this series of handles have a special rosette, made of die-casting zinc alloy with a aluminium envelope that can be treated or painted in the same way as the shank. The zinc base of the rosette is very strong to operate heavy doors or windows.

It can be used on windows together with gear transmissions, as its operating part is square spindle.  lengths of spindle can be chosen as 30, 40, 45, 50, 55, 60mm, or other length according to requirements from customers.

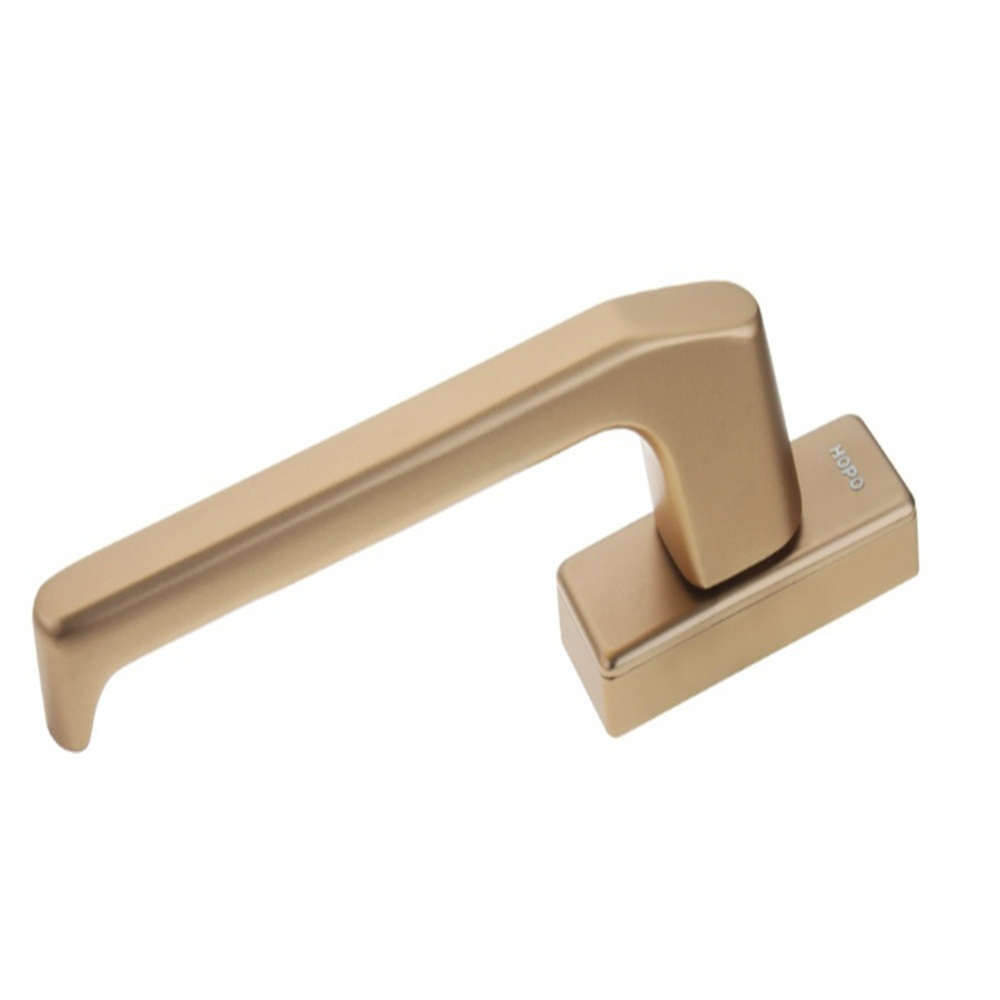

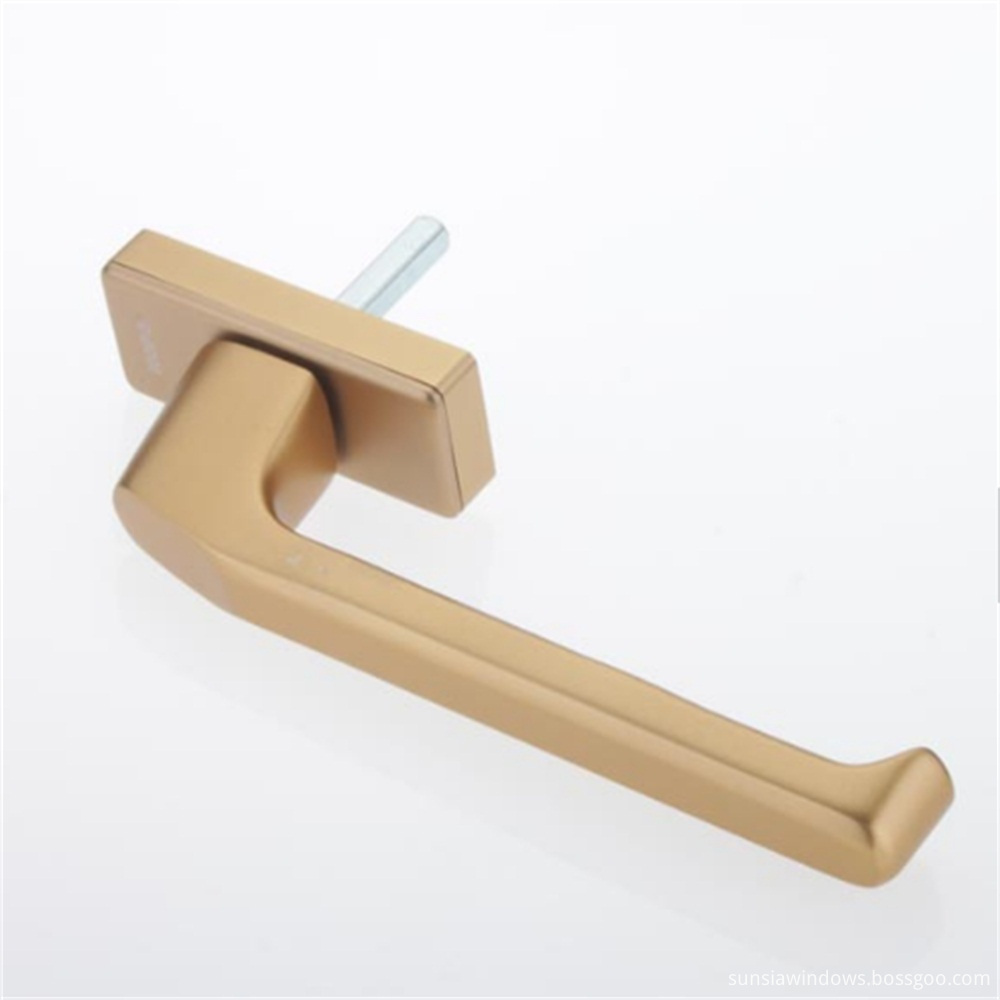

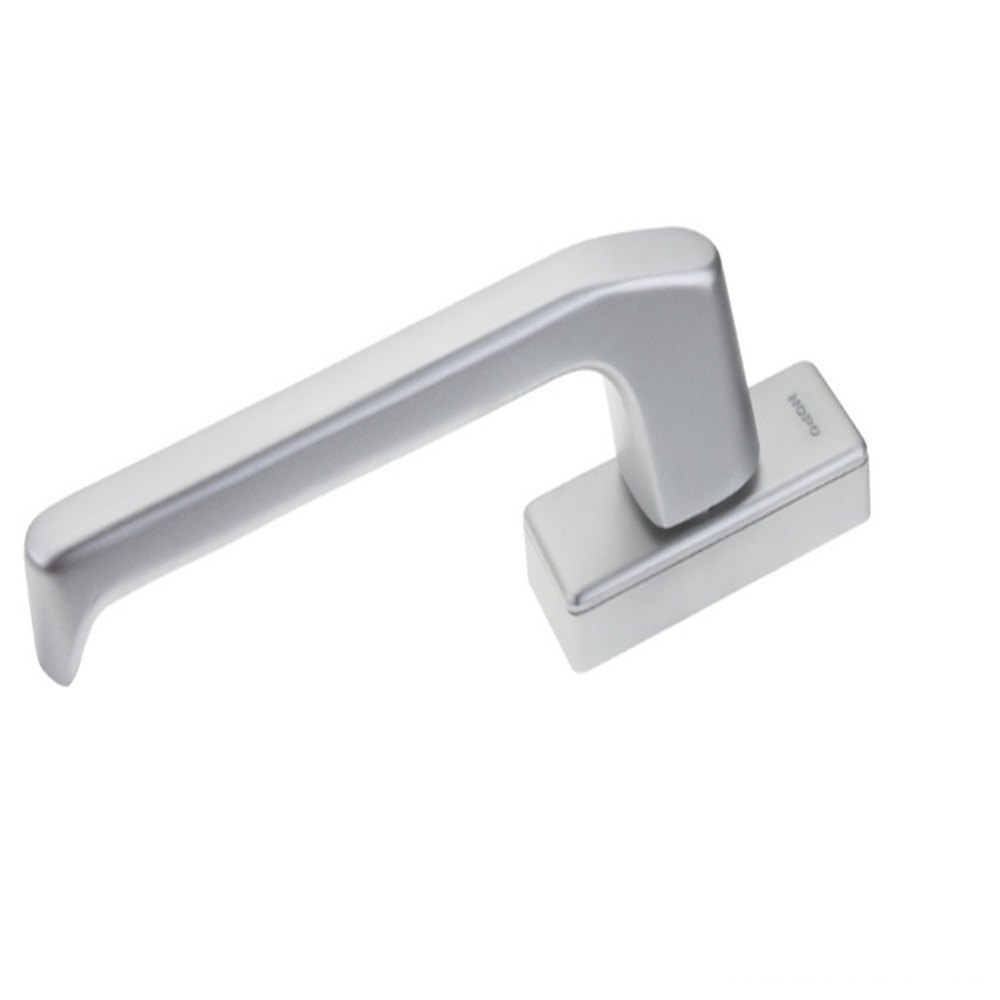

Finishing of the handle is anodized bronze, silver

 .
