Truck Wheel Alignment Tools
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Shenzhen, Yantian, Hong Kong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Shenzhen,Yantian,Hong Kong |

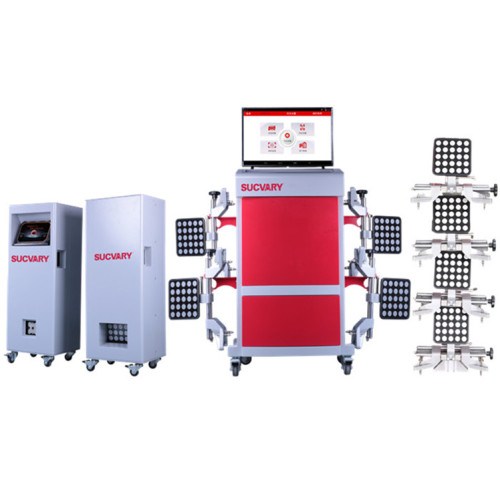

Truck Wheel Alignment
Truck wheel alignment tools are the most advanced wheel alignment for heavy duty vehicles. We are wheel alignment manufacturer in Shenzhen, China with featured products like cloud 3D wheel alignment, 5D wheel alignment, 3D truck wheel alignment, mobile 3D wheel alignment and mobile 5D wheel alignment. Truck wheel alignment tools are very convenient and quick to test trucks. And the accuration is ganranteed.
Advantages of Truck Wheel Alignment Tools:
3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:
[1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;
[2]Errors caused by wheel clamp deformation can not be eliminated;
[3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;
[4]Different measurement results caused by different operational approaches and strength.
3D technology adopts anti-shake measurement technology. It can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, it avoids problems caused by wireless and high-frequency interference. It can be used at any indoor places.
Configuration list of Truck Wheel Alignment Tools
|
model |
Sensor (1 ) |
Targets (8) |
Wheel clamp (8) |
Turntable (4) |
Frame offset tool(1) |
Tablet PC(1) |
Wedge block(2) |
Cabinet(1) |
24inch wireless TV (1) |
|||
|
SY808 |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
|||
|
SY808A |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|||
Measurement Range and Accuracy of Truck Wheel Alignment Tools:
References
Accuracy
Measurement Range
Measurement TotalRange
Camber
±0.02°
±8°
±8°
Caster
±0.05°
±19°
±19°
K.P.I
±0.02°
±19°
±19°
Toe
±0.02°
±22.5°
±45°
Turning Angle
±0.08°
±22.5°
±45°
Track
width difference
±0.03°
±2°
±8°
Front Setback
±0.02°
±2°
±4°
Maximum Turning Angle
±0.02°
±45°
±45°
Comparison between CCD and Truck Wheel Alignment Tools
CCD:
Step 1 Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;
Step 2 Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;
Step 3 Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;
Step 4 Picture ④ shows that the adjustment of No.3 axle individual toe.
Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.
5D:
Step 1 Install 8 targets and wheel clamps;
Step 2 Lay two sensors on the ground just like the picture shows;
Step 3 Drive the truck forward and turn the wheel to 8 degree to finish run-out compensation;
Step 4 Get the measurement results and monitor its dynamic
