HD Wheel Alignment System
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Yantian, Hong Kong, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Yantian,Hong Kong,Shenzhen |
Truck Wheel Alignment

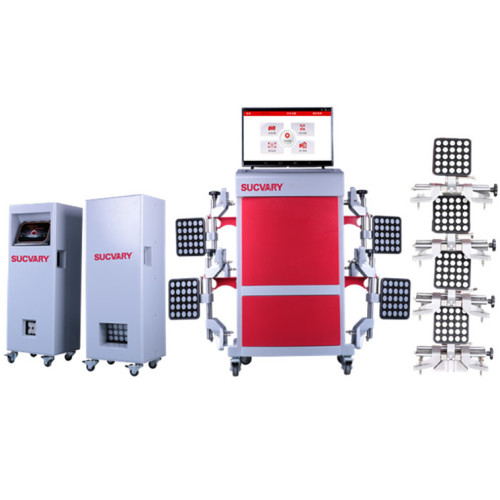

HD wheel alignment system is for convenient truck wheel alignment. This 3D wheel alignment is created by us and we are searching for high quality distributors from all over the world. 3D truck wheel alignment has five cameras and Heavy Duty 3D Wheel Alignment can finish all wheels alignment at a time. 3D truck wheel alignment is not difficult and we have professional engineer for training.
Advantages of HD Wheel Alignment System:
3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:
[1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;
[2]Errors caused by wheel clamp deformation can not be eliminated;
[3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;
[4]Different measurement results caused by different operational approaches and strength.
3D technology adopts anti-shake measurement technology. It can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, it avoids problems caused by wireless and high-frequency interference. Wheel Alignment for Bus can be used at any indoor places.
Configuration list of HD Wheel Alignment System
|
model |
Sensor (1 ) |
Targets (8) |
Wheel clamp (8) |
Turntable (4) |
Frame offset tool(1) |
Tablet PC(1) |
Wedge block(2) |
Cabinet(1) |
24inch wireless TV (1) |
|||
|
SY808 |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
|||
|
SY808A |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|||
Measurement Range and Accuracy of HD Wheel Alignment System:
References
Accuracy
Measurement Range
Measurement TotalRange
Camber
±0.02°
±8°
±8°
Caster
±0.05°
±19°
±19°
K.P.I
±0.02°
±19°
±19°
Toe
±0.02°
±22.5°
±45°
Turning Angle
±0.08°
±22.5°
±45°
Track
width difference
±0.03°
±2°
±8°
Front Setback
±0.02°
±2°
±4°
Maximum Turning Angle
±0.02°
±45°
±45°
Comparison between CCD and HD Wheel Alignment System
CCD:
Step 1 Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;
Step 2 Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;
Step 3 Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;
Step 4 Picture ④ shows that the adjustment of No.3 axle individual toe.
Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.
3D:
Step 1 Install 8 targets and wheel clamps;
Step 2 Lay two sensors on the ground just like the picture shows;
Step 3 Drive the truck forward and turn the wheel to 8 degree to finish run-out compensation;
Step 4 Get the measurement results and monitor its dynamic
