Heavy Duty Wheel Alignment Equipment

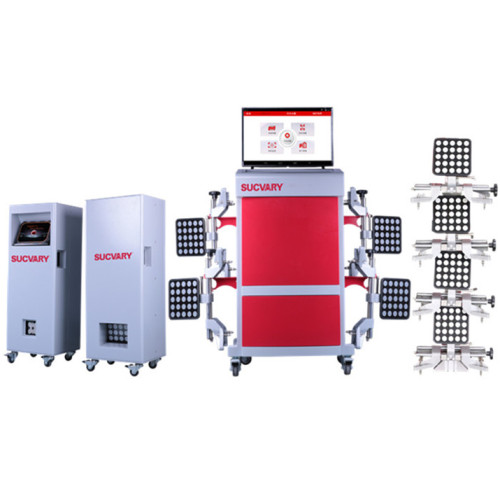

Heavy duty wheel alignment equipment for quick truck alignment. This machine has eight targets and two camera boxes. Heavy duty wheel alignment equipment can do wheel alignment all at a time. Good Quality Heavy Duty Wheel Alignment is more effective than CCD wheel alignment.

Advantages of Heavy Duty Wheel Alignment Equipment:

3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:

   [1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;

   [2]Errors caused by wheel clamp deformation can not be eliminated;

   [3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;

   [4]Different measurement results caused by different operational approaches and strength.

3D technology adopts anti-shake measurement technology. Wheel Alignment for Heavy Duty Trucks can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, Heavy Duty 3D Wheel Alignment avoids problems caused by wireless and high-frequency interference.  3D Truck Wheel Alignment can be used at any indoor places.

Configuration list of Heavy Duty Wheel Alignment Equipment

Measurement Range and Accuracy of Heavy Duty Wheel Alignment Equipment:

Comparison between CCD and 5D Wheel Alignment for Truck

     CCD:

Step 1  Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;

Step 2  Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;

Step 3  Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;

Step 4  Picture ④ shows that the adjustment of No.3 axle individual toe.

Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.

3D:
