Big Wheel Truck Alignment

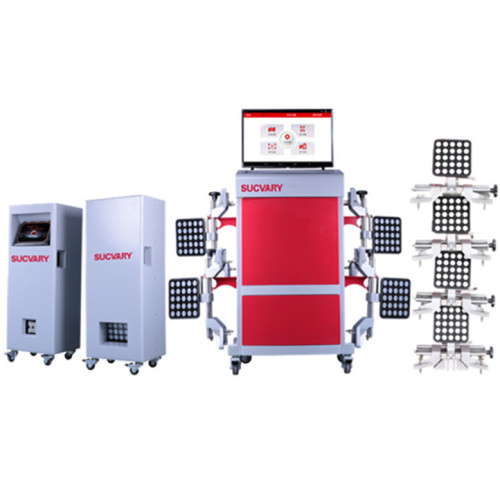

Big wheel truck alignment is exclusively for heavy duty vehicles such as truck and bus. This is big wheel truck alignment and the measurement is finished by two sensor boxes and eight targets. Thus we can finish wheel aligner at a time. The test of Good Quality Heavy Duty Wheel Alignment   results are precise and stable.

Advantages of Big Wheel Truck Alignment:

3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:

   [1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;

   [2]Errors caused by wheel clamp deformation can not be eliminated;

   [3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;

   [4]Different measurement results caused by different operational approaches and strength.

3D technology adopts anti-shake measurement technology. Wifi Wheel Alignment can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, Heavy Duty 3D Wheel Alignment avoids problems caused by wireless and high-frequency interference. Heavy Duty 3D Wheel Alignment can be used at any indoor places.

Configuration list of Big Wheel Truck Alignment

Measurement Range and Accuracy of Big Wheel Truck Alignment:

Comparison between CCD and Big Wheel Truck Alignment

     CCD:

Step 1  Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;

Step 2  Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;

Step 3  Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;

Step 4  Picture ④ shows that the adjustment of No.3 axle individual toe.

Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.

3D:
