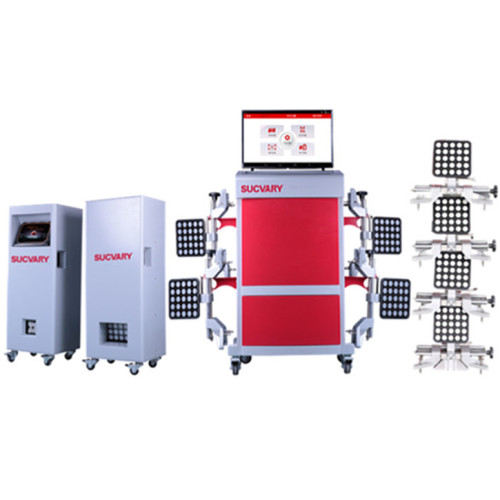

Heavy Duty Vehicle Wheel Aligner

Heavy duty vehicle wheel aligner is exclusively for truck and bus.  Heavy duty vehicle wheel aligner is more stable and precise than CCD wheel alignment.  China Heavy Duty Wheel Alignment monitor 8 wheels simultaneously, and finish the adjustment at a time.

Advantages of Heavy Duty Vehicle 5D  Wheel Aligner:

3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:

   [1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;

   [2]Errors caused by wheel clamp deformation can not be eliminated;

   [3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;

   [4]Different measurement results caused by different operational approaches and strength.

3D technology adopts anti-shake measurement technology. Movable Wheel Alignment can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, 3D Truck Wheel Alignment avoids problems caused by wireless and high-frequency interference.Heavy Duty 3D Wheel Alignment can be used at any indoor places.

Configuration list of Heavy Duty Vehicle 5D  Wheel Aligner

Measurement Range and Accuracy of Heavy Duty Vehicle 5D Wheel Aligner:

Comparison between CCD and 5D Wheel Aligner for Truck

     CCD:

Step 1  Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;

Step 2  Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;

Step 3  Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;

Step 4  Picture ④ shows that the adjustment of No.3 axle individual toe.

Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.

3D:

.
