Wheel Alignment for Truck Tires
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Shenzhen, Hongkong, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Shenzhen,Hongkong,Yantian |
Finish truck wheel alignment in one time with 5 cameras wheel alignment for truck tires. Wheel alignment for truck tires is easy to operate with two sensors laying on the ground. Eight targets are exchangeable. Two sensors of wheel alignment for truck tires are portable. Thus you can do wheel alignment anywhere with China Heavy Duty Wheel Alignment
.
Advantages of Wheel Alignment for Truck Tires:
3D technology overcomes all disadvantages of 2D technology, such as mismeasurement.low precision.human factors , which are caused by following reasons:
[1]Original errors caused by wheel rim deformation cannot be eliminated by compensation;
[2]Errors caused by wheel clamp deformation can not be eliminated;
[3]Precision of truck should be higher than that of cars, but 2D technology makes it lower;
[4]Different measurement results caused by different operational approaches and strength.
3D technology adopts anti-shake measurement technology. Heavy Duty 3D Wheel Alignment can eliminate time errors caused by car body shake within 20 seconds, improving labor efficiency. Meanwhile, it avoids problems caused by wireless and high-frequency interference. 3D Truck Wheel Alignment can be used at any indoor places.

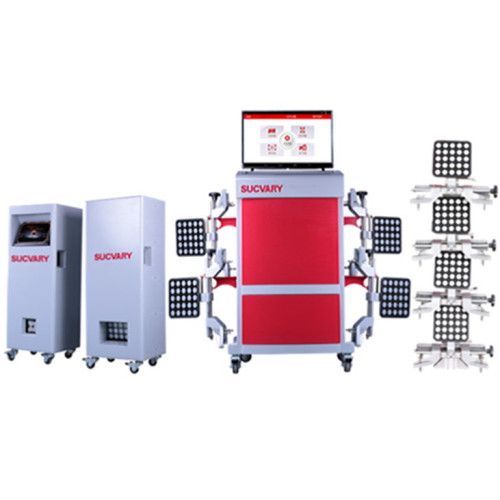

Configuration list of Wheel Alignment for Truck Tires
|
model |
Sensor (1 ) |
Targets (8) |
Wheel clamp (8) |
Turntable (4) |
Frame offset tool(1) |
Tablet PC(1) |
Wedge block(2) |
Cabinet(1) |
24inch wireless TV (1) |
|||
|
SY808 |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
|||
|
SY808A |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|||
Measurement Range and Accuracy of Wheel Alignment for Truck Tires:
References
Accuracy
Measurement Range
Measurement TotalRange
Camber
±0.02°
±8°
±8°
Caster
±0.05°
±19°
±19°
K.P.I
±0.02°
±19°
±19°
Toe
±0.02°
±22.5°
±45°
Turning Angle
±0.08°
±22.5°
±45°
Track
width difference
±0.03°
±2°
±8°
Front Setback
±0.02°
±2°
±4°
Maximum Turning Angle
±0.02°
±45°
±45°
Comparison between CCD and 5D Wheel Alignment for Truck
CCD:
Step 1 Picture ① shows that reference is No.4 axle, adjust the toe of No.2 axle;
Step 2 Picture ② shows that reference is No.4 axle, adjust the toe of No.1 axle;
Step 3 Picture ③ shows that the drag link between No.1 and 2 axle makes No.1 and 2 axle parallel;
Step 4 Picture ④ shows that the adjustment of No.3 axle individual toe.
Remarks::When installing sensors, wheels need to be lifted to make run-out compensation.
3D
Step 1 Install 8 targets and wheel clamps;
Step 2 Lay two sensors on the ground just like the picture shows;
Step 3 Drive the truck forward and turn the wheel to 8 degree to finish run-out compensation;
Step 4 Get the measurement results and monitor its dynamic

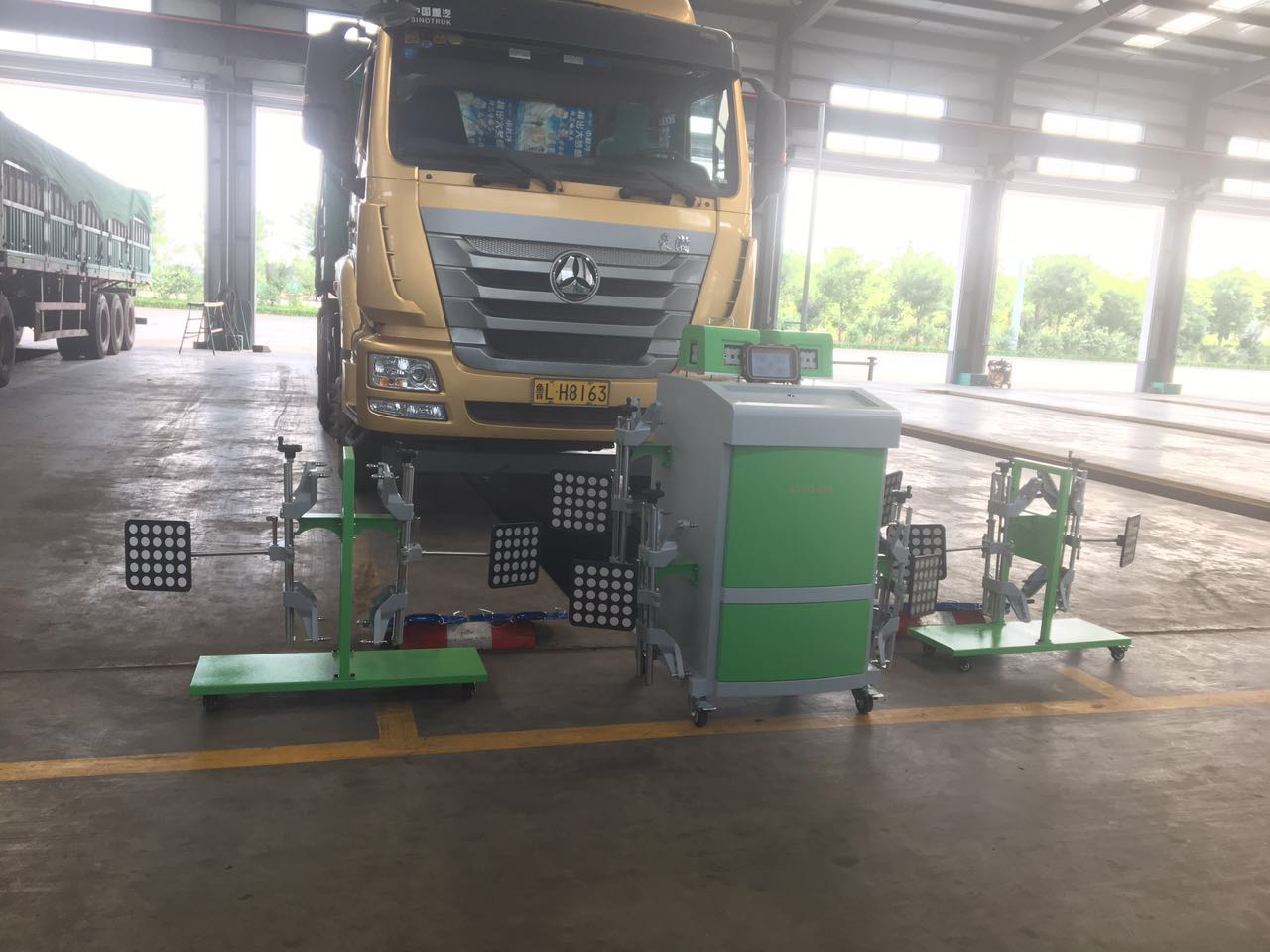

Case
