Do-It-Yourself 3D Wheel Aligner System
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Shenzhen, Hongkong, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300/month |
| Supply Ability: | 300/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Shenzhen,Hongkong,Yantian |
Do-It-Yourself 3D wheel aligner system is fit for all kinds of vehicle models. We keep adding new data into our database whenever there are new vehicle models. The database of Do-It-Yourself 3D wheel aligner system is upgrade every three months. The newest database can be downloaded from our official website.
Advantages of Do-It-Yourself 3D Wheel Aligner System:
1. DIY 3D wheel alignment can save space with different installation patterns.
2. Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so Cloud 3D wheel alignment can measure almost all kinds of vehicles.
3. Wifi Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Supported by powerful cloud service, 3D Wheel Alignment Equipment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Measurement range is wide, and 3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of Do-It-Yourself 3D Wheel Aligner System
|
References |
Accuracy |
Measurement range |
|
Camber |
±0.01° |
±8° |
|
Caster |
±0.03° |
±19° |
|
K.P.I |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear Wheel Thrust Angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track width difference |
±0.02° |
±2° |
|
Front Setback |
±0.02° |
±2° |
|
Rear Setback |
±0.02° |
±2° |
|
Track width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |

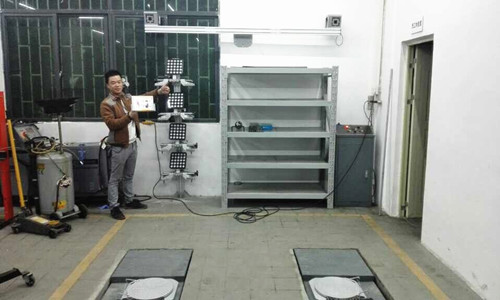

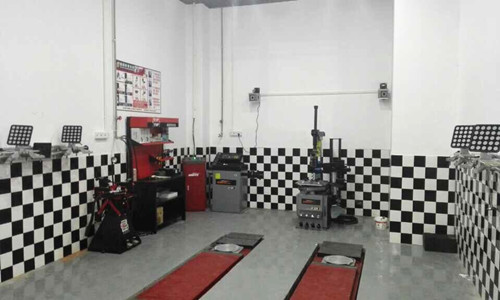

Cases of Do-It-Yourself 3D Wheel Aligner System
