Car 3D Wheel Aligner Machine
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Shenzhen, Hongkong, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300/month |
| Supply Ability: | 300/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Shenzhen,Hongkong,Yantian |

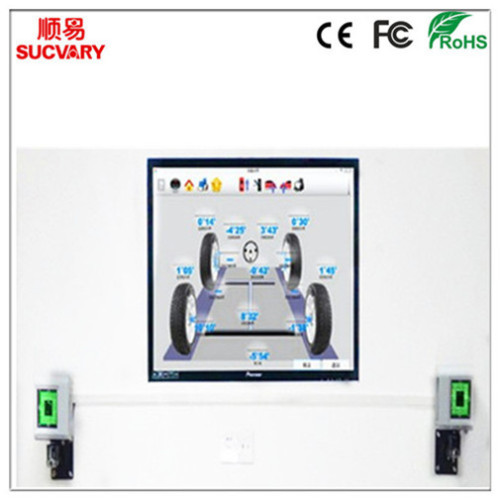

It must be the simplest wheel aligner you have ever seen. Car 3D wheel aligner machine just has two sensor boxes and a LCD screen, or a tablet PC. We have updated the system. Car 3D wheel aligner support Windows 8 and Android system now. That means, with a tablet PC or a cell phone, you can operate the machine.
Advantages of Car 3D Wheel Aligner Machine :
1. Cloud 3D wheel alignment can save space with different installation patterns.
2. 3 Cameras Wheel Alignment has 3 cameras, the reference plane is car body, so Cloud 3D wheel alignment can measure almost all kinds of vehicles.
3. Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Supported by powerful cloud service, Wifi Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Measurement range is wide, and DIY 3D wheel alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement range and accuracy of Car 3D Wheel Aligner Machine
|
References |
Accuracy |
Measurement range |
|
Camber |
±0.01° |
±8° |
|
Caster |
±0.03° |
±19° |
|
K.P.I |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear Wheel Thrust Angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track width difference |
±0.02° |
±2° |
|
Front Setback |
±0.02° |
±2° |
|
Rear Setback |
±0.02° |
±2° |
|
Track width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
Car 3D Wheel Aligner Machine Installation Without Calibration
Case of Car 3D Wheel Aligner Machine :
