3D Vehicle Wheel Aligner Machines
  • 3D Vehicle Wheel Aligner Machines
3D Vehicle Wheel Aligner Machines

3D Vehicle Wheel Aligner Machines

Payment Type:
T/T, Western Union
Incoterm:
EXW
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
15 Days
Transportation:
Ocean, Air, DHL
Port:
Hongkong, Yantian, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 300/month
Supply Ability: 300/month
Payment Type: T/T,Western Union
Incoterm: EXW
Certificate: CE,FCC,RoHS
Transportation: Ocean,Air,DHL
Port: Hongkong,Yantian,Shenzhen
Product Description
Product Description

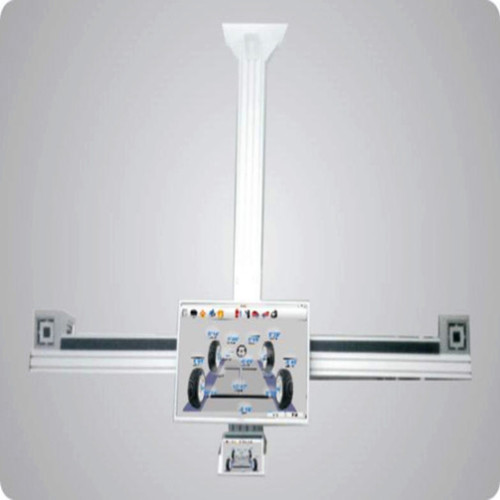

In order to save space, we R&D a new DIY 3D wheel aligner. These are 3D vehicle wheel aligner machines. The installation style is special, with a post fixed on the ceiling. The two sensor boxes is kept by a beam. But 3D vehicle wheel aligner machines do not need to be calibrated for we have installed angle devices in the sensor boxes.



5D wheel alignment



Advantages of 3D Vehicle Wheel Aligner Machines:


1.  Cloud 3D wheel alignment can save space with different installation patterns.

2.   Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so  Cloud 3D wheel alignment can measure almost all kinds of vehicles.

3.  Garage 3D Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4.   Supported by powerful cloud service, Wifi Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5.   Four targets are crash resistant and can be exchanged. Fix wheel  claws without taking apart wheel hub cover.

6.    Measurement range is wide, and   3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.

7.   The optional one point wheel clamps can be installed within four seconds.









Measurement range and accuracy of 3D Vehicle Wheel Aligner Machines


References

Accuracy

Measurement range

Camber

±0.01°

±8°

Caster

±0.03°

±19°

K.P.I

±0.02°

±19°

Toe

±0.01°

±2°

Rear Wheel Thrust Angle

±0.02°

±2°

 Rear Axle Deviation

±0.02°

±2°

Track width difference

±0.02°

±2°

 Front Setback

±0.02°

±2°

Rear Setback

±0.02°

±2°

Track width

±0.64cm

265cm

Wheelbase

±0.64cm

533cm





3D Vehicle Wheel Aligner Machines




3D Vehicle Wheel Aligner Machines Installation Without  Calibration


Hot 3D Wheel Aligner





Case of 3D Vehicle Wheel Aligner Machines:



 heel Aligner for Save Space
