Stable 5D Wheel Alignment for Mini-scissor Lift
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Hongkong, Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Hongkong,Shenzhen,Yantian |

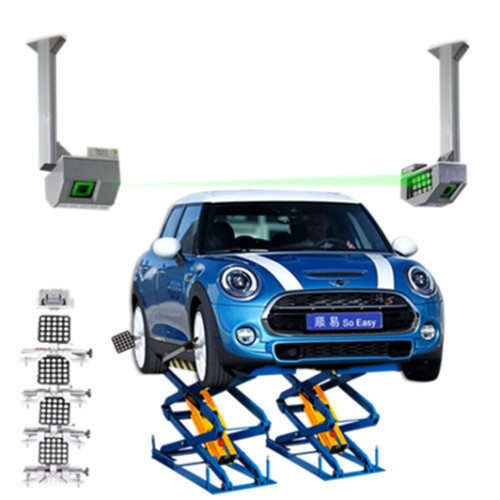

Stable 5D wheel alignment for mini-scissor lift is remarkable wheel alignment technology applied for mini-scissor lift. Stable 5D wheel alignment for mini-scissor lift is installed on the ceiling and scan the whole car on its top. Mini-scissor Lift Wheel Alignment test the car on the ground and adjust it after the car is lifted. It has been tested that the adjustment is more precise when the car is lifted for its chassis is free in the air.
Advantages of Stable 5D Wheel Alignment for Mini-scissor Lift:
1.Without limitation of space, Wheel Alignment For Mini-Scissor Lift can be used on all kinds of lifts.
2. With 5 cameras, the reference plane is car body, so 5 Cameras Wheel Algnment can measure almost all kinds of vehicles, even if the vehicle is lifted.
3. 5D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Mini-scissor Lift Wheel Alignment is supported by powerful cloud service; 5D wheel alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. 5D wheel alignment measurement range is wide, and Mini-scissor Lift Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of Stable 5D Wheel Alignment for Mini-scissor Lift:
|
References |
Accuracy |
range |
|
Camber Angle |
±0.01° |
±8° |
|
Caster Angle |
±0.03° |
±19° |
|
Front SAI |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear thrust angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track Width Difference |
±0.02° |
±2° |
|
Front setback |
±0.02° |
±2° |
|
Rear setback |
±0.02° |
±2° |
|
Track Width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |

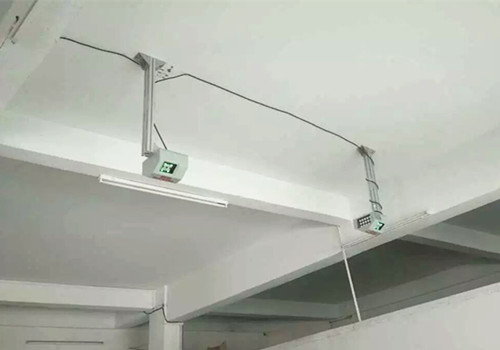

Installation of Stable 5D Wheel Alignment for Mini-scissor Lift:
Cases of Stable 5D Wheel Alignment for Mini-scissor Lift:
