Mini-scissor Lift Wheel Alignment System
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Hongkong, Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300sets/ month |
| Supply Ability: | 300sets/ month |
| Payment Type: | T/T,Western Union |
| Certificate: | FCC, CE, RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Hongkong,Shenzhen,Yantian |

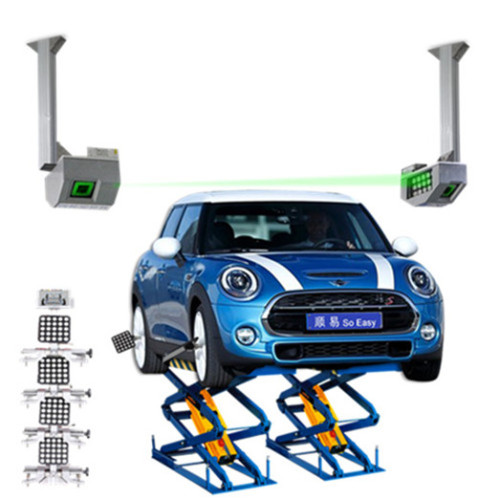

Mini-scissor lift wheel alignment system is hot alignment machine for carshops with mini-scissor lift. Mini-scissor lift wheel alignment system supports two-post lift and all scissor lifts. 5 cameras make test results more precise and stable.
Advantages of Mini-scissor Lift Wheel Alignment System:
1.Without limitation of space, Mini-scissor Lift Wheel Alignment can be used on all kinds of lifts.
2. With 5 cameras, the reference plane is car body, so 5 Cameras Wheel Algnment can measure almost all kinds of vehicles, even if the vehicle is lifted.
3. 5D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Wheel Alignment For Mini-Scissor Lift is supported by powerful cloud service; 5D wheel alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Intelligent 5D Wheel Aligner measurement range is wide, and Mini-scissor Lift Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of Mini-scissor Lift Wheel Alignment System:
|
References |
Accuracy |
range |
|
Camber Angle |
±0.01° |
±8° |
|
Caster Angle |
±0.03° |
±19° |
|
Front SAI |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear thrust angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track Width Difference |
±0.02° |
±2° |
|
Front setback |
±0.02° |
±2° |
|
Rear setback |
±0.02° |
±2° |
|
Track Width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
Installation of Automatic 5D Wheel Alignment :

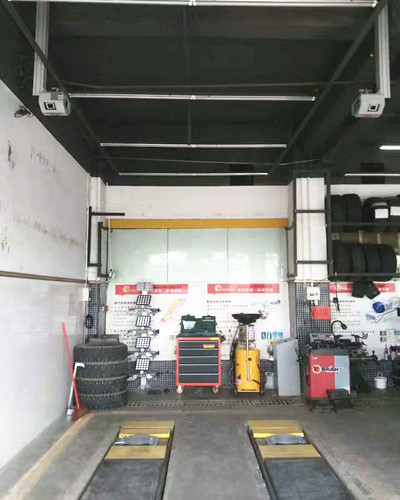

Cases of Mini-scissor Lift Wheel Alignment System:
