Wheel Alignment for X Car Lift

Get Latest Price

Payment Type:: T/T, Western Union

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air, DHL

Port:: Shenzhen, Yantian, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	300sets/ month
Supply Ability:	300sets/ month
Payment Type:	T/T,Western Union
Certificate:	FCC, CE, RoHS
Transportation:	Ocean,Air,DHL
Port:	Shenzhen,Yantian,Hongkong

Product Description

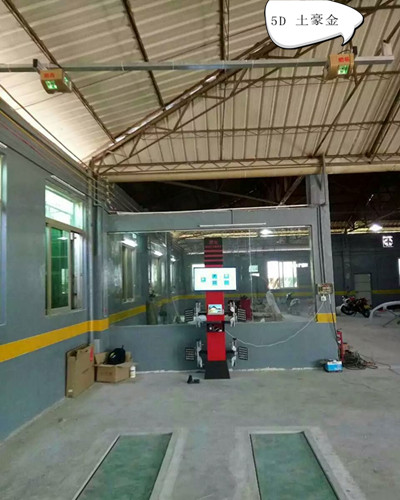

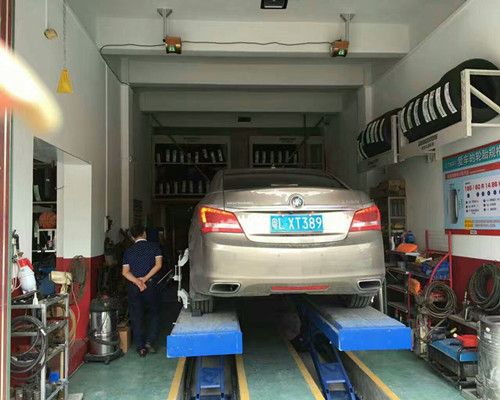

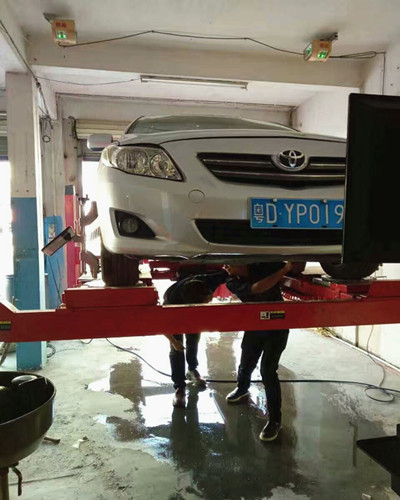

Wheel alignment for X car lift is popular alignment machine for mini-scissor lift. Wheel alignment for X car lift takes up almost no space for it is installed on the ceiling. Wheel alignment for X car lift is newest 5D wheel alignment technology which realizes no beam wheel alignment for mini-scissor car lift.

Advantages of Wheel Alignment for X Car Lift:

1.Without limitation of space, 5D Wheel Alignment for Mini-Scissor Lift can be used on all kinds of lifts.

2. With 5 cameras, the reference plane is car body, so 5D wheel alignment can measure almost all kinds of vehicles, even if the vehicle is lifted.

3. 5 Cameras Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4. 5D wheel alignment is supported by powerful cloud service; Mini-scissor Lift Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote operation and data upgrade.

5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.

6. Mini-scissor Lift Wheel Alignment measurement range is wide, and Portable 5D Wheel Aligner can also test wheel deviation besides all traditional parameters.

7. The optional one point wheel clamps can be installed within four seconds.

Measurement Range and Accuracy of Wheel Alignment for X Car Lift:

References	Accuracy	range
Camber Angle	±0.01°	±8°
Caster Angle	±0.03°	±19°
Front SAI	±0.02°	±19°
Toe	±0.01°	±2°
Rear thrust angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track Width Difference	±0.02°	±2°
Front setback	±0.02°	±2°
Rear setback	±0.02°	±2°
Track Width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm
