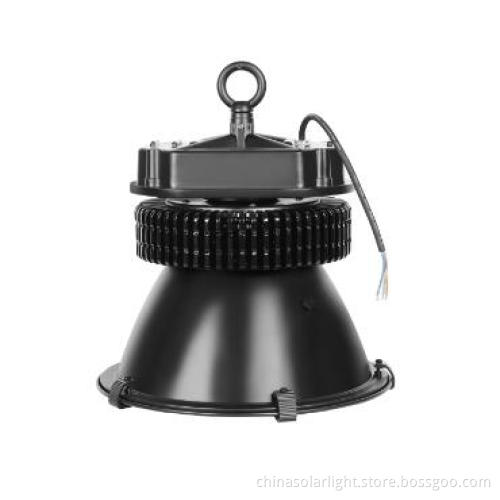

High Bay LED Lighting 100 Watt Alloy Aluminum Body

Features:

1.        Unique heat sink design, dissipates heat effectively, ensuring high lumens maintenance and longer lifespan

2.        Top grade Philips LED source with high luminous efficiency and high CRI

3.        Original Meanwell/MOSO LED driver, 5 years warranty

4.        Anti-glare reflector

Benefits:

1.        High Cost performance..

2.        Non flicker, Non dazzling, High brightness.

3.        Compact design, Great quality ,Long life span

4.        3 - 5 years warranty (optional )

5.        OEM supported

Technical Parameter:

Product Model: HB-JL01-100W

Power: 100 Watt

Input Voltage       : AC85V-265V

Frequency Range: 50Hz-60Hz

THD       : <20%

Power Factor       :>0.95

LED Working Voltage: DC28-36V

LED Quantity: 100pcs, Philips 3030LED

LED Consumption: 91W

System Consumption:       100W

LED Luminous Efficiency:  115 lm/W

LED Luminous Flux:   11500 lm

Lamp's efficiency: >91%

Illuminance uniformity: >0.8

CCT WW:  3000K; NW:4000-4500K; CW:5700-6500K

Color Rendering Index: Ra>70

Light Distribution: Symmetrical / circular spot

Light Design: LED + Lens

LED Junction Temperature: < 75°C

Working Temperature: -20°C~+40°C

Storage Temperature: -25°C~+65°C

Working Life-span:     >50,000H

Connect Wire : Brown  L Live wire / Blue  N Zero line / Yellow/Green  G GND

Lamp Housing Color:  Black

Certificate:    CE, RoHS

Reflector Beam Angle:       60°/90°

Net Weight:   5.33KG

Application:

Factory, Warehouse, Basketball Playground, Airport, Gas Station
