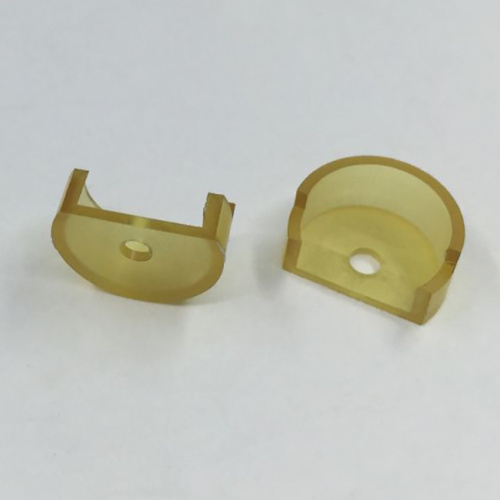

Ultem Plastic Components Machining Service

Ultem Plastic Components Machining Service

The Ultem machined components material is a non crystalline, high-performance polymer. The mechanical properties, long-term heat resistance, dimensional stability and chemical stability of Ultem machined components are similar to those of other aromatic PI and many aromatic heterocyclic polymers at room temperature and high temperature, but Ultem machined components excellent molding machining performance is the latter can not be compared. Ultem machined components also exhibit outstanding flame retardancy and low smoke emission, in the market, it is highly competitive with high performance thermoplastic polymers such as PES and PPS.

1 Our Factory Equipment Capabilities

• CNC Machinig Center, 3 Axis, 4 Axis.
• CNC Lathe, Lathe, CNC Turning Centers, Horizontal 8/12-position hydraulic turret.
• Milling Machine
• Grinding Machine
• Drill Press

• Tapping Center

• Rotary Indexer

• Punch

  2 Machining Processes

• CNC Milling and CNC Turning
• CNC Milling
• CAM Programming
• sheet metal fabrication
• Grinding
• Cutting
• Thread Turning / Milling threading
• Tapping
• Drilling
• Knurling


 3 Material ( Machining Metal )

• Titanium

• Aluminum 6061, 6061-T6, 6063, 7075, 5052, 2024, 2017.
• Copper, Brass, Bronze, Phosphor Bronze. ( C10100, C10200, C11000, C12200, C26000, C27000, C28000, C33000, C220, C510, C630 )
• Stainless Steel 303, 304, 316 ( 1.4305, 1.4301 )
• Steel Ordinary carbon structural Steel, Quality carbon structural steel, cast steel, Iron. (Q195, Q215, Q235, Q255, 10#, 20#, 35#, 45#, 718H, S136, SKD11 )

     Machining Plastic :

    Delrin (Black, White, Blue, Red, Yellow), Nylon, Neoflon, PTFE, Teflon, Ultem, Torlon, Peek, Acrylic, PMMA, PC, Polycarbonate, PAI, PPS, PA, PVDF, POM, PA, PET, PEI, PE, PVC, PP, ABS, PEP, PS, PSF, PI, PMMI, PABM.

 4 Part Size ( CNC Milling and CNC Turning )

• CNC Milling Parts ( Max ) : Length 1030mm, Width 800mm, Height 750mm.
• CNC Turning Parts (Max ): Diamter 680mm, Length 750mm. The size of the above parts are machined in the workshop.

 5 Tolerance: 0.01mm. Minority size: 0.005mm. The measuring instrument can measure the dimension precision: 0.01mm.

  6 Secondary Services of Machining Parts

• Assemble

• Plating Zinc Color ( Machining Steel parts )

• Anodize, Anodize color ( Black, Clear, Red, Blue,Yellow, Etc. ), Hard Anodize, Hard Anodize Teflon. ( Machining Aluminum )
• Electroless Nickel ( Machining Aluminum parts, Machining Stainless Steel parts, Machining brass parts )
• Passivation  ( Machining Stainless Steel parts )
• Sand Blasting ( Machining Aluminum parts )
• Brushed ( Machining Aluminum parts , Machining Stainless Steel parts )
• Bluing and Blackening ( Machining Steel parts )
• Trivalent Chromium Process ( Machining Aluminum parts )
• Welding,brazing and soldering.
• Centerless Grinding and Burnishing
