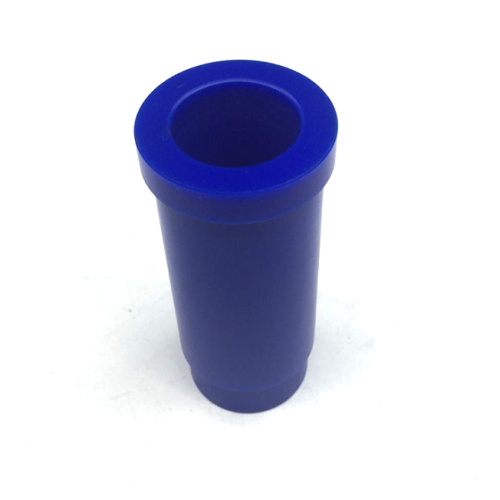

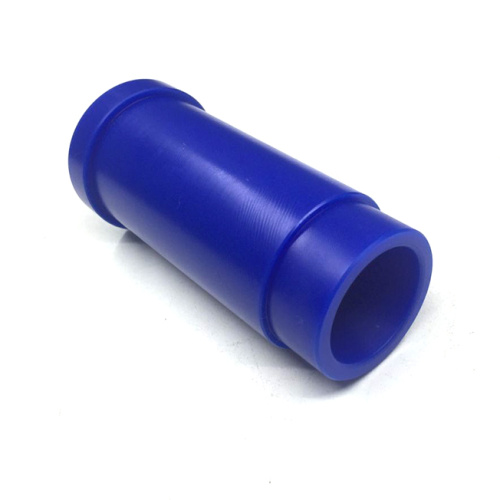

Turning Machining Blue Delrin Parts

  Delrin is a kind of synthetic resin, also known as polyoxymethylene resin, POM plastic, race steel; is a kind of white or black plastic particles, has the characteristics of high hardness, high rigidity and high wear resistance. The molecular structure is regular and crystalline, making its physical and mechanical properties very excellent. It has the name of metal plastic. Turning Delrin parts has high elastic modulus, high rigidity and hardness, strength and rigidity is close to the metal, with comprehensive performance and good coloring. Blue Delrin machining because of its beautiful colors, can meet the need to install equipment on the part of the color requirements; Blue Delrin parts has high strength, lightweight that is commonly used to replace copper, tin, lead, zinc and other non-ferrous metal parts. Turning Delrin parts is widely used in industrial machinery, automobiles, electronic appliances, daily necessities, pipes and fittings, precision instruments and building materials, and other fields. Turning Delrin parts is mainly used for gear, bearing, auto parts, machine tools, instrument parts, toys and so other skeleton role of the product.

  1 Machining Processes

• CNC Milling and CNC Turning
• CNC Milling
• CAM Programming
• sheet metal fabrication
• Grinding
• Cutting
• Thread Turning / Milling threading
• Tapping
• Drilling
• Knurling


  2 Material ( Machining Metal )

• Titanium

• Aluminum 6061, 6061-T6, 6063, 7075, 5052, 2024, 2017.
• Copper, Brass, Bronze, Phosphor Bronze. ( C10100, C10200, C11000, C12200, C26000, C27000, C28000, C33000, C220, C510, C630 )
• Stainless Steel 303, 304, 316 ( 1.4305, 1.4301 )
• Steel Ordinary carbon structural Steel, Quality carbon structural steel, cast steel, Iron.(Q195, Q215, Q235, Q255, 10#, 20#, 35#, 45#, 718H, S136, SKD11 )

     Machining Plastic :

    Delrin (Black, White, Blue, Red, Yellow), Nylon, Neoflon, PTFE, Teflon, Ultem, Torlon, Peek, Acrylic, PMMA, PC, Polycarbonate, PAI, PPS, PA, PVDF, POM, PA, PET, PEI, PE, PVC, PP, ABS, PEP, PS, PSF, PI, PMMI, PABM.

  3 Part Size ( CNC Milling and CNC Turning )

• CNC Milling Parts ( Max ) : Length 1030mm, Width 800mm, Height 750mm.
• CNC Turning Parts (Max ): Diamter 680mm, Length 750mm.                                                                                                                                                          The size of the above parts are machined in the workshop.

  4 Tolerance:0.01mm. Minority size:0.005mm. The measuring instrument can measure the dimension precision: 0.01mm.

  5 Secondary Services of Machining Parts

• Assemble

• Plating Zinc Color ( Machining Steel parts )

• Anodize, Anodize color ( Black, Clear, Red, Blue,Yellow, Etc. ), Hard Anodize, Hard Anodize Teflon. ( Machining Aluminum )
• Electroless Nickel ( Machining Aluminum parts, Machining Stainless Steel parts, Machining brass parts )
• Passivation  ( Machining Stainless Steel parts )
• Sand Blasting ( Machining Aluminum parts )
• Brushed ( Machining Aluminum parts , Machining Stainless Steel parts )
• Bluing and Blackening ( Machining Steel parts )
• Trivalent Chromium Process ( Machining Aluminum parts )
• Welding, brazing and soldering.
• Centerless Grinding and Burnishing

  6 Equipment Capabilities

• CNC Machinig Center, 3 Axis, 4 Axis.
• CNC Lathe, Lathe, CNC Turning Centers, Horizontal 8/12-position hydraulic turret.
• Milling Machine
• Grinding Machine
• Drill Press

• Tapping Center

• Rotary Indexer

• Punch
