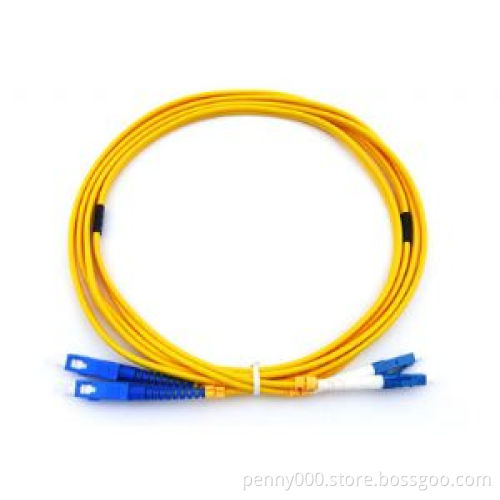

SC-LC singlemode duplex patch cord
- Payment Type:
- T/T, Paypal, Western Union
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 2000 pcs/day |
| Payment Type: | T/T,Paypal,Western Union |
| Certificate: | ISO9001 |
| Transportation: | Air |
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Flyin Optronics offer kinds of fiber patch cord, such as FC, SC, ST, LC, MU, MTRJ, MPO, E2000 series, available for PC/UPC/APC version, provide with SM, MM, OM3 fiber cable, simplex and duplex types, 0.9mm, 2.0mm, 3.0mm cable diameter for choose, different fiber length by customers request.
Features
l High dense spaces
l Low insertion loss, high return loss
l Excellent mechanical endurance
l High credibility and stability
l Good in repeatability and exchangeability
l 100% Insertion, Return Loss, End Face and Interference inspection
Applications
l Telecommunication
l CATV, FTTH, LAN
l Fiber oiptic sensors
l Optical transmission system
l Test equipment
Performance Specifications
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MTRJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion Loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Repeatability |
dB |
≤0.1 |
|||||||||||
|
Durability |
dB |
≤0.2dB typical change, 1000 matings |
|||||||||||
|
Operating temperature |
℃ |
-20 ~ +75 |
|||||||||||
|
Storage temperature |
℃ |
-40 ~ +85 |
|||||||||||
Ordering Information
|
Connector 1 |
Connector 2 |
Fiber Core |
Cable Diameter |
Fiber Type |
Polishing |
Cable Jacket |
Cable Color |
Fiber Length |
|
LC SC FC ST D4 MU DIN SMA MPO MTRJ E2000 - |
LC SC FC ST D4 MU DIN SMA MPO MTRJ E2000 - |
Simplex Duplex |
0.9mm 2.0mm 3.0mm |
SM:9/125um MM:50/125um MM:62.5/125um OM3 |
PC UPC APC |
PVC LSZH |
Yellow Orange Aqua others |
1M 2M 3M - 10M 20M 30M - |
